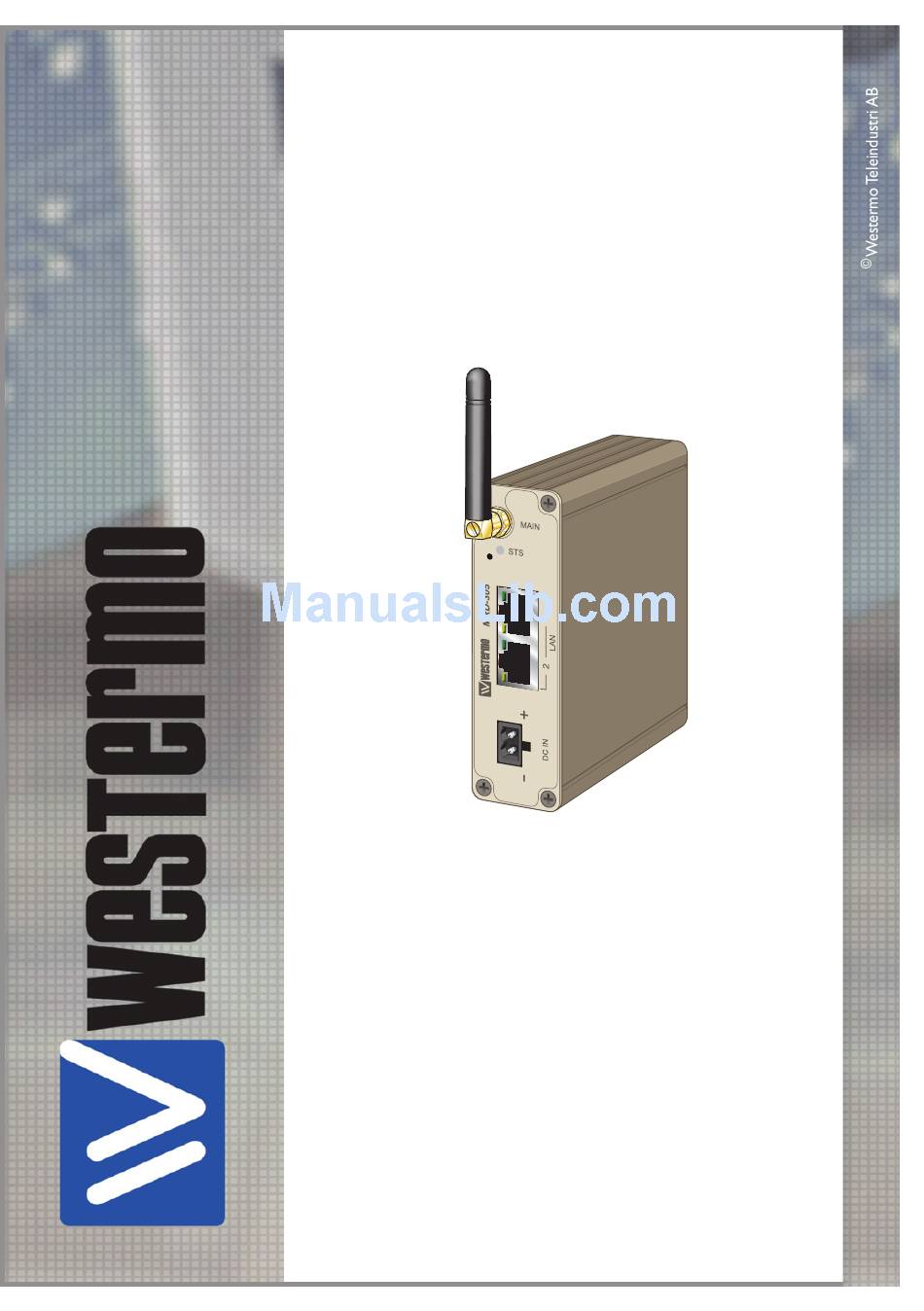

User Guide
6623-2260
MRD-305-DIN
Industrial M2M/3G Gateway/Router
GSM / GPRS / EDGE / 3G /
HSDPA / HSUPA / HSPA
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRD-305-DIN and is the answer not in the manual?

Questions and answers

Summary of Contents for Westermo MRD-305-DIN

  • Page 1 User Guide 6623-2260 MRD-305-DIN Industrial M2M/3G Gateway/Router GSM / GPRS / EDGE / 3G / HSDPA / HSUPA / HSPA www.westermo.com...
  • Page 2: Legal Information

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 3: Before Installation

    Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support.
  • Page 4 General Remember to follow any special regulations and warnings in force in any area and never use the unit whenever it’s forbidden to use it. Do not use the unit when it may cause interference or danger. A wireless device exposed to interference above specified limits could result in deteriorated performance.
  • Page 5: Maintenance

    For Vehicles equipped with an airbag An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.
  • Page 6: Agency Approvals And Standards Compliance

    Agency approvals and standards compliance Type Approval/Compliance EN 55022, EN 55022 A1, Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility – Immunity IT equipment Safety IEC/EN 60950-1, IT equipment Article 3.1a EN 60950-1 Safety...
  • Page 7: Declaration Of Conformity

    Declaration of Conformity, MRD 305-DIN Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no 3G Cellular Modem / Router MRD-305-DIN 3623-0030 is in conformity with the following EC directive(s).
  • Page 8: Type Tests And Environmental Conditions

    Storage & Transport 0 to 90% relative humidity non condensing. Altitude Operating 2000 m/70 kPa MTBF MIL-217-F MRD-305-DIN 1 657 805 hours Service life Operating 10 year Dimension W x H x D 31 x 103 x 103 mm Weight 0.25 kg...
  • Page 9 VPN. Regardless of which type of M2M application you might have the MRD-305-DIN from Westermo can fulfill your communication needs. The unit works very well with any type of SIM card, such as static IP SIM, M2M SIM, or an off-the-shelf SIM in both packet mode or circuit switched data (CSD) mode.
  • Page 10: Interface Specifications

    Interface specifications Power Rated voltage 12 – 24 VDC Operating voltage 10 – 36 VDC Start-up current (max) 400 mA Rated frequency Consumption guidance* Voltage Mode Consumption 24 VDC Not registered 44 mA 1.056 W 24 VDC GSM and UMTS registered 50 mA 1.2 W 24 VDC...
  • Page 11 Antenna Mobile/ Max Connectivity Speed Frequency (MHz) Cellular Technology Downlink Uplink Note 14.4 kbit/s 14.4 kbit/s – 850/900/1800/1900 GPRS 85.6 kbit/s 85.6 kbit/s Class 12 EDGE 236.8 kbit/s 236.8 kbit/s Class 12 384 kbit/s 384 kbit/s – 850/900/1900/2100 3G UMTS 7.2 Mbit/s –...
  • Page 12 Connections MRD-305-DIN SIM card reader Ethernet TX Connections Antenna (RJ-45 connector) LAN1-2 MAIN Position Direction Description Led indicators In/Out Factory default In/Out TD– reset switch In/Out – Not Connected – Not Connected In/Out RD– – Not Connected – Not Connected...
  • Page 13: Led Indicators

    LED Indicators State Status Description Startup/POST NOT LIT Power issue Normal Running/Normal RED FLASH Cannot connect to wireless network GREEN Everything OK Status Indicator The status indicator reports the health of the unit. In normal operation, the indicator will be GREEN, if a fault is detected either at boot-up or during normal operation the indicator will light RED, or flash RED.
  • Page 14 Protocols and Functionality MRD-305-DIN Ethernet Technologies IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX Cellular Technologies Circuit Switched Data mode (CSD) GPRS Multi-slot class 12, mobile station class B, PBCCH support, coding schemes CS 1-4 EDGE Multi-slot class 12 (max 236.8 kbit/s), mobile station class B,...
  • Page 15: Getting Started

    Getting started Installing the SIM Card … Insert the SIM card into the SIM card reader with the contacts facing up. SIM card reader Note: Before removing or inserting the SIM card, ensure that the power has been turned off and the power connector has been removed from the MRD.
  • Page 16: Windows Pc Network Settings

    Configuration Accessing and Using the Web Interface All configuration of the MRD can be done via the web interface. In order to view the web pages a computer with a fixed IP address, on the same sub-net as the MRD, will need to be connected to one of the LAN ports.
  • Page 17 Figure 1 6. The Internet Protocol (TCP/IP)Properties dialog box, change the settings to match those shown in Figure 2, and then click ”OK. Figure 2 Note: If a web browser was open prior to making the network changes, then it will need to be closed and re-started before attempting to connect to the MRD.
  • Page 18 IP address settings of the PC. Enter the following login details: • User Name: admin • Password: westermo • The Status summary page will be displayed, it will be similar to Figure 3. Figure 3 Note: If the unit is not yet configured it is likely that the Network Status and Connection Status will indicate a fault condition.
  • Page 19: Basic Configuration

    Basic Configuration The three sections below detail the steps needed to configure the MRD for basic packet mode functionality. For details on how to configure the unit for Circuit Switched mode and for more advanced configuration refer to the Advanced Configuration section of the Reference Guide.
  • Page 20 Adding a Network Connection Profile To access the wireless packet mode settings click on the ”Packet mode'' tab. The screen shown in Figure 6 will be displayed. The page shows the connection configuration details and is divided into two sections. The first section shows the current connection state for the selected profile.
  • Page 21 Figure 7 Enter APN Enter dial string Set Authentication Enter username Enter password Click ”Update” to save profile Note: In order to set a password click the check-box marked New. The password can now be entered in the text field. The password is visible as it is being typed so that it can be checked for errors prior to being set.
  • Page 22 Enable the Wireless Connection To complete the configuration of the wireless connection, set the ”Connection state” to ”Always connect” and click the ”Update” button to save the changes. Once the changes have been set, the MRD will initiate a connection. Normally it will take up to 30 seconds to esablish a connection.
  • Page 23 Configure the LAN interface and DHCP Server To access the configuration page for the LAN interface and DHCP Server, select ”Interfaces” from the top level menu. A LAN interface screen similar to the one shown in Figure 10 will be displayed. Figure 10 Setting the IP Address If it is desired to change the IP address of the LAN port, follow the steps below:...
  • Page 24 Under the ”DHCP Server Configuration table”: • Set the ”Enabled” option to ”Yes”. • Enter the first address of the group in the ”Start Address box”. • Enter the last address of the group in the ”End Address box”. • Enter a lease time for the ”Default Lease time”. •...
  • Page 25: Earth Connection

    Mounting The MRD-305-DIN should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. Mount the MRD-305-DIN with the integrated DIN-clip: Earth connection For correct function, the ground connection on the unit needs to be properly connected to a solid ground.
  • Page 26 Dimensions MRD-305-DIN Measurements are stated in millimeters. 6623-2260...
  • Page 27 6623-2260...
  • Page 28: Sales Units

    France Singapore Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. A 6623-2260 2015-10 Westermo Teleindustri AB, Sweden...
