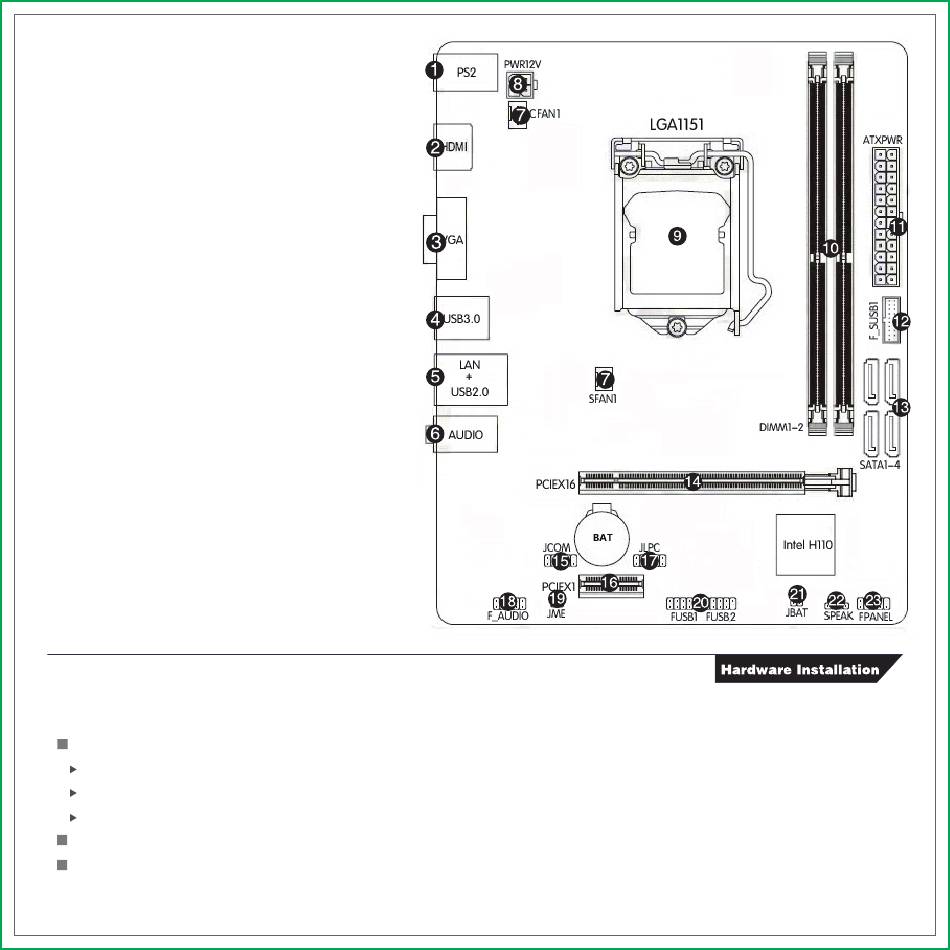

1.3.Motherboard Layout
1、PS/2 Mouse/ Keyboard port
2、Connect to HDMI monitor
3、Connect to VGA monitor
4、Connect to USB3.0 devices
5、Connect to USB2.0 devices and LAN
6、Audio devices
7、Fan connector（CFAN1，SFAN1）
8、4-pin Power connector
9、Intel LGA1151 socket
10、DIMM slots
11、24-pin ATX Power connector
12、USB 3.0 header
13、SATA3.0 ports
14、PCI Express 3.0 X16 slot, for VGA Card
15、COM Header
16、PCI Express X1 slot
17、Debug connector
18、Front panel audio connector
19、Me header
20、USB 1.1/2.0 port
21、Clear CMOS jumper
22、Speaker connector
23、System panel connector
2.Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this section are:
Preparing the motherboard
Installing the CPU
Installing the CPU fan
Installing the memory
Installing the motherboard
Connecting cables and setting switches
