Clear CMOS PROCEDURE
You can clear CMOS by shorting 1-2 pin. Before you clearing the CMOS, following next procedure:
1.Turn off the AC power supply and connect pins 1 and 2 together using the jumper cap.
2.Return the jumper setting to normal (pin 2) or Remove the jumper cap
3.Turn the AC power supply back on.
JBAT JBAT
1or2 normal
1-2 clear CMOS

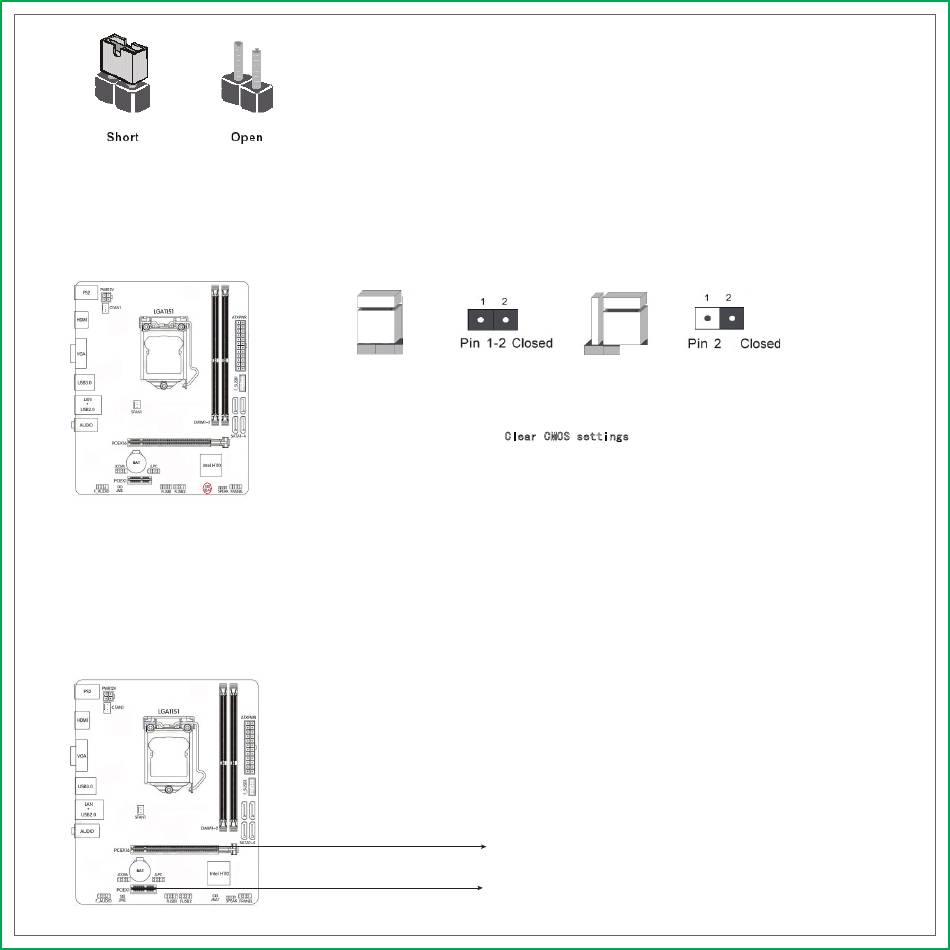

Clear CMOS settings
2.7.14.PCI Express3.0 x16 and PCI Express x1 slots
The PCI Express x1 slots that are designed to accommodate less bandwidth-intensive cards, such as a modem or LAN
card. The x1 slot provides 250 MB/sec bandwidth.
The PCI Express3.0 x16 slot is reserved for a graphics or video card. The bandwidth of the x16 slot is up to 4GB/sec
(8GB/sec concurrent).
When installing a PCI Express3.0 x16 card, be sure the retention clip snaps and locks the card into place. If the card is not
seated properly, it could cause a short across the pins. Secure the card's metal bracket to the chassis back panel with the
screw used to hold the blank cover.
PCI Express3.0 x16 Slot
PCI Express x1 Slot
