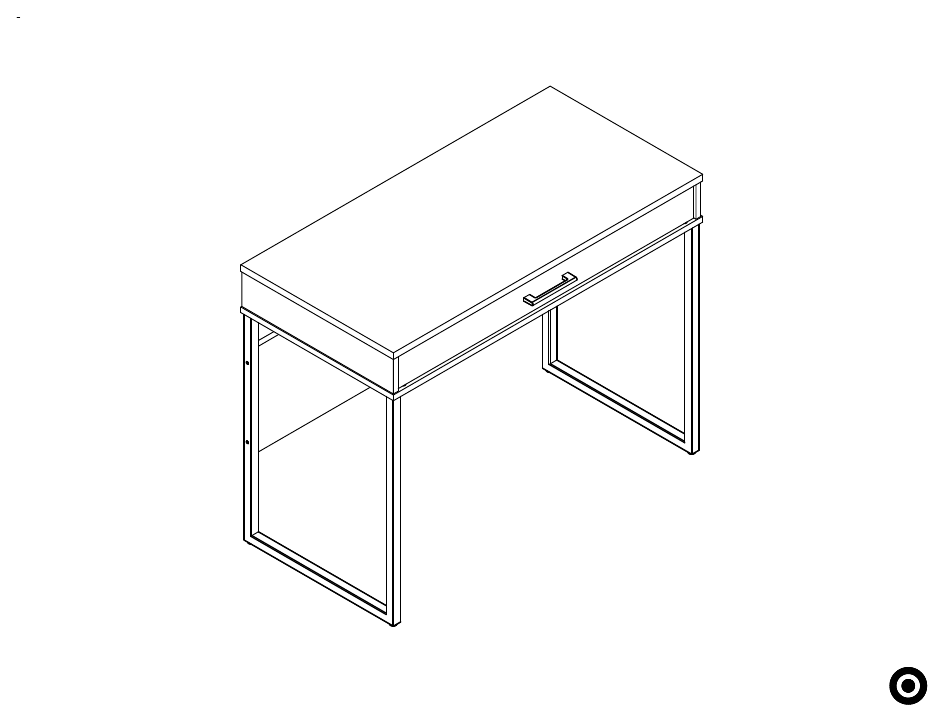

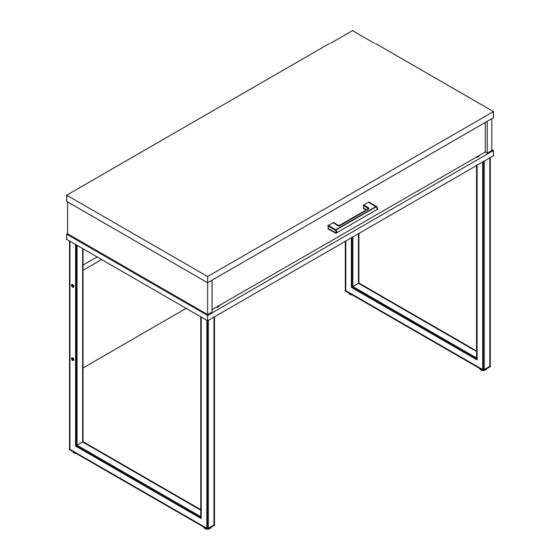

- Page 1 Mixed Material Writing Desk style # 8820307T DPCI # 249-05-9132 >> assembly instructions B348820000T 01...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don't start sweating over the box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. -
Page 3: Table Of Contents
table of contents introduction hardware parts list how to use the cam lock system assembly 8-22 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling. -
Page 4: Hardware
hardware (2) x6 (3) x4 (4) x2 (1) x6 (5) x2 (6) x12 cam bolt wood dowel connector housing cam lock connector bolt M6 machine screw #A22610 #A22920 (black) #A21660 #A22620 #A22910 #A20650 (9) x10 (8) x4 (7) x6 (10) x10 confirmat screw #8x7/16"... - Page 5 hardware (16) x1 (15) x1 (14) x1 right metal leg left metal leg handle #A95520 #A95510 #A50415 (18) x1 (17) x12 4mm hex key M6 lock nut #A23100 #A19000...
-
Page 6: Parts List
Parts shown are the base cabinet of your model. Please note, most parts are labeled with a sticker or have a letter stamped Parts List on a raw edge. ITEM PART NUMBER DESCRIPTION 38820307010 38820307020 LEFT PANEL RIGHT PANEL 38820307030 38820307041 BOTTOM 38820000050... -
Page 7: How To Use The Cam Lock System
how to use the cam lock system Tighten to fully seat. Do not over tighten. Proper orientation of cam. ½ turn to fully lock. Lock... -
Page 8: Assembly
step marked with an "R" marked with an "L" Proper orientation of CAM LOCK finished edges (3) x4 (1) x4 (10) x6 (13) x1 (13) x1 cam lock wood dowel #6x7/16" screw left cabinet slide right cabinet slide 1 . Refer to page 7 for instructions on how to use the cam lock system. - Page 9 step unfinished edge (2) x4 (5) x2 cam bolt connector bolt 1. Screw-in cam bolts must be screwed down flush. 2. Refer to page 7 for instructions on how to use the cam lock system.
- Page 10 step You will need to tap the connector (4) with a hammer to fully insert. Be sure the connector is positioned as shown before pushing into holes. (4) x2 connector housing...
- Page 11 step finished edges UNLOCK LOCK 1 . Refer to page 7 for instructions on how to use the cam lock system.
- Page 12 step Turn screw clockwise to lock in place. finished edges...
- Page 13 step UNLOCK LOCK finished edges 1. Refer to page 7 for instructions on how to use the cam lock system.
- Page 14 step 1. Attach modesty panel (F) to one metal leg (15) or (16) at a time unfinished edge finished surface (9) x4 (15) x1 (16) x1 confirmat screw right metel leg left metel leg...
- Page 15 step 1. With the help of another person, using a wrench or vice grips and the hex key (18) furnished, fasten the bottom (D) to the metal legs (15 & 16) with machine screws (6) and lock nuts (17). finished surface finished edge (17) x12...
- Page 16 step 1. With the help of another person, align holes of bottom (D) with holes in left panel (B), right panel (C), and back panel (E), and fasten with screws (9). (9) x6 confirmat screw...
- Page 17 step LEFT SIDE RIGHT SIDE Bracket Orientation Bracket Orientation (12) x2 drawer bracket 1. Lay the drawer sides down on flat surface. Carefully line up the drawer bracket with the holes in the drawer side as shown. Using a hammer, tap each drawer bracket stem part way into each hole.
- Page 18 step RIGHT SIDE LEFT SIDE Line up all grooves during assembly. (8) x4 (2) x2 #8x7/16" pan head screw cam bolt 1. Screw-in cam bolts must be screwed down flush. 2. Refer to page 7 for instructions on how to use the cam lock system.
- Page 19 step UNLOCK LOCK RIGHT SIDE Proper orientation of CAM LOCK LEFT SIDE (1) x2 cam lock 1. Refer to page 7 for instructions on how to use the cam lock system.
- Page 20 step BOTTOM raw surface BOTTOM You will need to tap with hammer to fasten. (7) x6 drive fastener...
- Page 21 step marked with an "L" marked with an "R" (13) x1 (13) x1 (14) x1 (11) x2 (10) x4 handle left drawer slide right drawer slide #8-32x7/8" bolt #6x 7/16" flat head screw...
- Page 22 step roller cabinet member drawer runner roller 1. Notice, the drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws.
-
Page 23: Maximum Loads
MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, drawer 15 lbs . product collapse, and/or serious injury. Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television. - Page 24 ©2022 Target. The Bullseye Design is a trademark of Target Brands inc. All rights reserved.
