Target paulo Assembly Instructions Manual

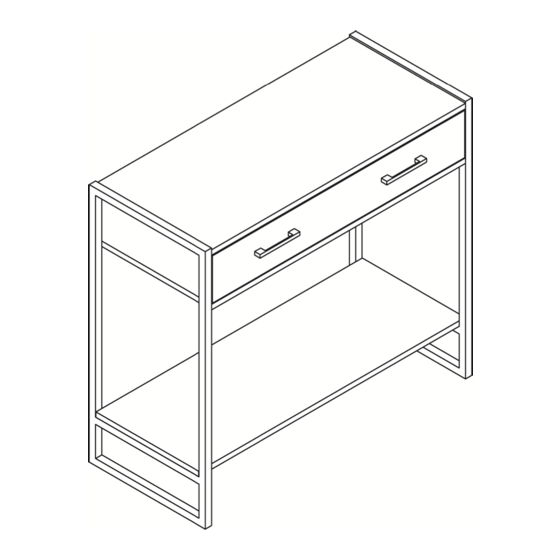

Console table
Hide thumbs

Advertisement

Quick Links

Download this manual

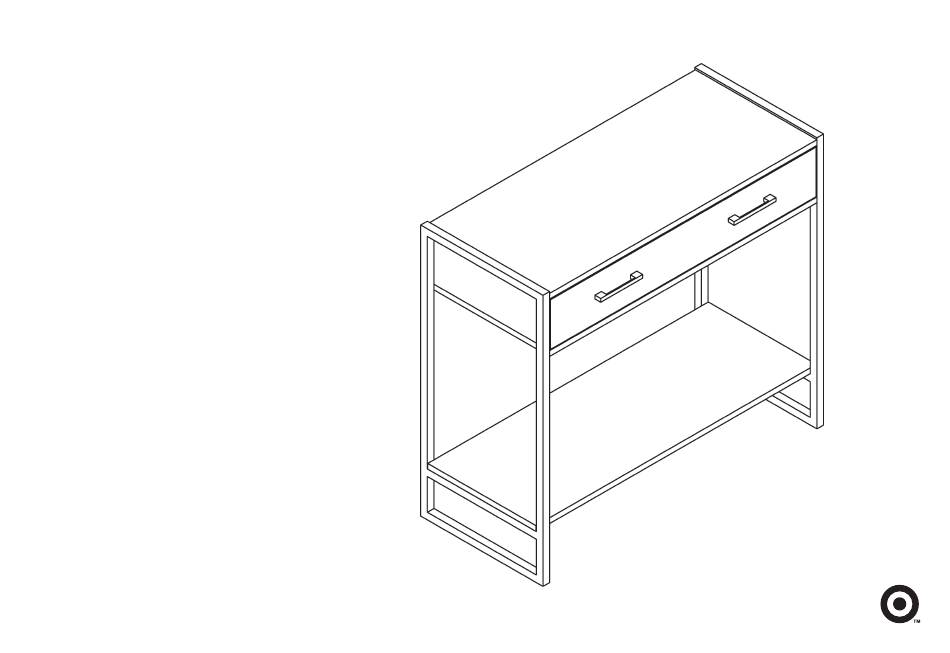

paulo
console table
style # TGELCNTBWH (weathered white)
dpci # 249-16-9757
tcin # 53287131
style # TGELCNTBGY (weathered smoke)
dpci # 249-16-9758
tcin # 53287136
style # TGELCNTBBR (midtone)
dpci # 249-16-9759
53287139
tcin #
>> assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the paulo and is the answer not in the manual?

Questions and answers

Related Manuals for Target paulo

Summary of Contents for Target paulo

  • Page 1 # TGELCNTBGY (weathered smoke) dpci # 249-16-9758 tcin # 53287136 style # TGELCNTBBR (midtone) dpci # 249-16-9759 53287139 tcin # >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
  • Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
  • Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-17 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
  • Page 4 hardware (H1) x 10 (H2) x 9 (H3) x 9 (H4) x 23 (H5) x 8 wooden dowel cam bolt flat head screw short round head bolt (H6) x 1 (H7) x 4 (H8) x 4 (H9) x 2 (H10) x 10 allen wrench short flat head bolt long round head bolt...
  • Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel middle panel left side panel right side panel back panel bottom panel drawer face drawer front drawer left side drawer right side drawer back drawer bottom drawer support left side frame right side frame lower rail...
  • Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
  • Page 7 step 1: prepare top panel (H2) x 7 cam bolt 1.1. Screw-In cam bolts must be screwed down flush. 1.2. Refer to page 6 for instructions on how to use the cam lock system. 1.3. Do not over tighten bolts.
  • Page 8 step 2: attach left and right side panels to back panel (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
  • Page 9 step 3: attach top and middle panels (H1) x 8 (H3) x 7 (H4) x 7 wooden dowel flat head screw flat head screw 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
  • Page 10 step 4: attach lower rail, left and right side frames (H5) x 4 (H6) x 1 short round allen wrench head bolt (H7) x 4 (H10) x 4 flat head bolt washer (H7) 4.1. Do not over tighten bolts.
  • Page 11 step 5: attach bottom panel (H12) x 6 long flat head bolt 5.1. Do not over tighten bolts.
  • Page 12 step 6: attach back panel (H6) x 4 (H10) x 4 short round washer head bolt 6.1. Do not over tighten bolts.
  • Page 13 step 7: attach drawer left/right sides and drawer supports to drawer front (H4) x 8 flat head screw 7.1. Do not over tighten screws.
  • Page 14 step 8: install drawer bottom and attach drawer back (H4) x 8 flat head screw 8.1. Do not over tighten screws.
  • Page 15 step 9: attach drawer face and handles (H8) (H8) x 4 (H9) x 2 (H11) x 3 long round handle long round head bolt head screw 9.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 9.2.
  • Page 16 step 10: install drawer...
  • Page 17 step 11: install anti-tip kit (H15) (H15) Position against wall Position against wall (H10 ) (H10 ) Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole Drill 1/4” hole (H14 ) (H14 ) (H13 ) (H13 ) Tap in wall anchor...
  • Page 18 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
  • Page 19 SALICE LIFETIME GUARANTEE AND LIMITED WARRANTY* Salice America, Inc., warrants that all hinges and/or Salice products contained in Quality That Lasts A Lifetime this product, (but not the product itself) against defects in material and workman- ship for as long as the original consumer purchaser owns the products. Salice will send the original consumer purchaser a new Salice hinge to replace any defective Salice hinge subject to this warranty without charge.
  • Page 20 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
