warwick

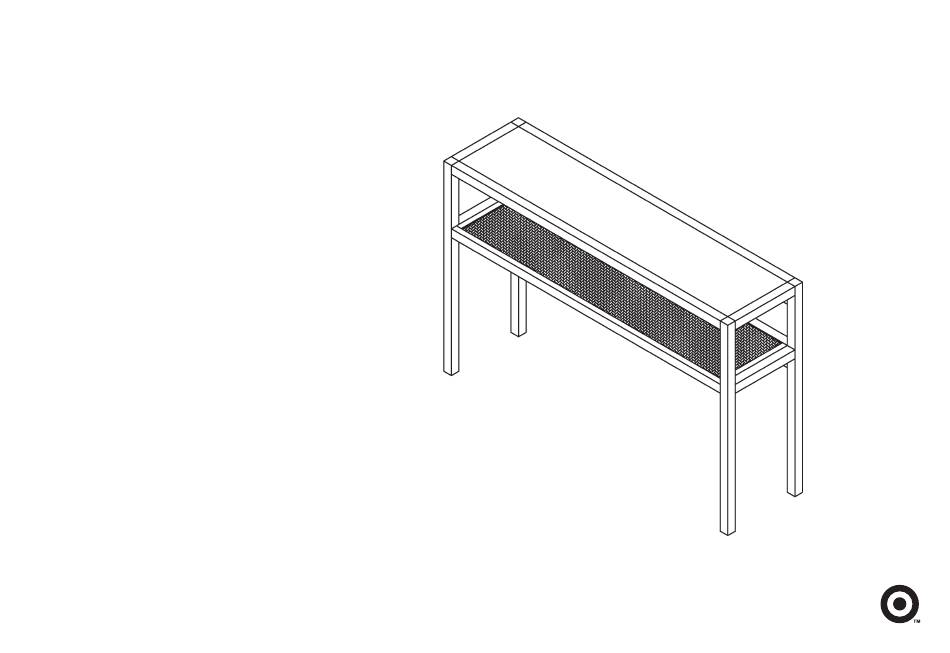

narrow console table
fawn brown
style # FKWWNRCNBR
dpci # 249-17-9654
TCIN # 77471734
jet black
style # FKWWNRCNBK
dpci # 249-17-9116
TCIN # 78054358
oxford white
style # FKWWNRCNWH
dpci # 249-17-8871
TCIN # 78208011
natural
style # FKWWNRCNNT
dpci # 249-17-2030
TCIN # 80789808
>> assembly instructions
© 2020 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Warwick FKWWNRCNBR
Summary of Contents for Target Warwick FKWWNRCNBR
- Page 1 # FKWWNRCNWH dpci # 249-17-8871 TCIN # 78208011 natural style # FKWWNRCNNT dpci # 249-17-2030 TCIN # 80789808 >> assembly instructions © 2020 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-12 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 22 (H2) x 12 (H3) x 12 (H4) x 4 (H5) x 4 wooden dowel cam bolt bolt lock washer (H6) x 4 (H7) x 1 (H8) x 1 (H9) x 1 (H10) x 1 washer allen wrench small pan head screw wall strap wall anchor...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame bottom panel back panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach back panel to top panel (H1) x 3 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place on top panel. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush into top panel. 1.3.
- Page 8 step 2: attach right side frame to top / back panel (H1) x 4 (H2) x 4 (H3) x 3 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place on side frame. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach back panel to bottom panel (H1) x 3 (H2) x 2 (H3) x 2 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place on bottom panel. Leave 1/2” of the dowels sticking out. 3.2. Screw-In cam bolts must be screwed down flush into bottom panel. 3.3.
- Page 10 step 4: attach bottom panel to right side frame (H1) x 4 (H3) x 1 (H4) x 2 wooden dowel bolt (H5) x 2 (H6) x 2 (H7) x 1 lock washer washer allen wrench 4.1. Carefully tap small wooden dowels into place on side frame. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: attach remaining side frame (H1) x 8 (H2) x 4 (H3) x 4 wooden dowel cam bolt (H4) x 2 (H5) x 2 (H6) x 2 (H7) x 1 bolt lock washer washer allen wrench 5.1. Carefully tap small wooden dowels into top and bottom panels. Leave 1/2” of the dowels sticking out. 5.2.
- Page 12 step 6: attach anti-tip (H10) Position against wall (H9) Mark position of strap hole on wall Drill 1/4” hole Tap in wall anchor (H8) (H12) (H12) (H11) Fasten anti-tip strap with wall screw provided (H8) x 1 (H9) x 1 (H10) x 1 (H11) x 1 (H12) x 2...
- Page 13 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 14 © 2020 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
