paulo

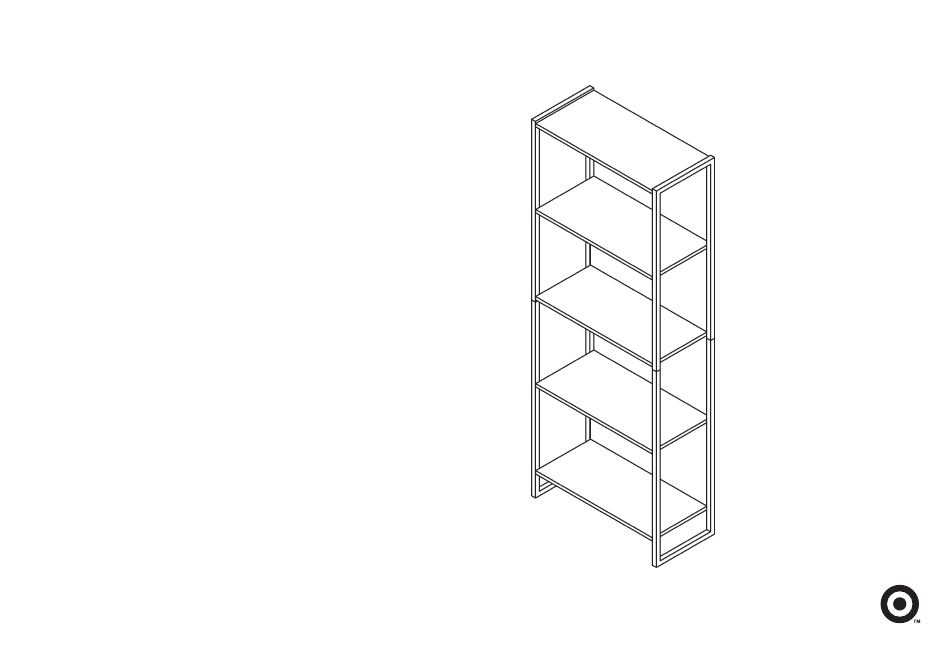

4 shelf bookshelf
style # TGELBC4SWH (weathered white)
dpci # 249-14-3793
tcin # 52384113
style # TGELBC4SGY (weathered smoke)
dpci # 249-14-3363
tcin # 52384115
style # TGELBC4SBR (midtone)
dpci # 249-14-5030
tcin # 53281456
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Target Paulo TGELBC4SWH
Summary of Contents for Target Paulo TGELBC4SWH
- Page 1 # TGELBC4SGY (weathered smoke) dpci # 249-14-3363 tcin # 52384115 style # TGELBC4SBR (midtone) dpci # 249-14-5030 tcin # 53281456 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-15 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 8 (H2) x 8 (H3) x 20 (H4) x 22 (H5) x 4 cam bolt bolt washer wooden dowel (H6) x 1 (H7) x 1 (H8) x 1 (H9) x 1 (H10) x 8 large screw small screw wall strap wall anchor hex bolt...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel upper fixed shelf back panel lower fixed shelf upper left frame upper right frame lower left frame lower right frame...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach upper frames to lower frames (H10) x 8 (H11) x 1 hex bolt allen wrench 1.1. Align bolts with pre-drilled holes. 1.2. Do not over tighten bolts.
- Page 8 step 2: prepare lower fixed shelf (H2) x 4 (H5) x 2 cam bolt wooden dowel 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
- Page 9 step 3: prepare upper fixed shelf (H2) x 4 (H5) x 2 cam bolt wooden dowel 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2. Screw-In cam bolts must be screwed down flush. 3.3.
- Page 10 step 4: attach lower fixed shelves to frame (H3) x 8 (H4) x 8 bolt washer 4.1. Align bolts with pre-drilled holes. 4.2. Do not over tighten bolts.
- Page 11 step 5: slide in back panels make sure arrows are pointing up...
- Page 12 step 6: attach upper fixed shelves (H3) x 4 (H4) x 4 bolt washer 6.1. Align bolts with pre-drilled holes. 6.2. Do not over tighten bolts.
- Page 13 step 7: attach top panel (H3) x 4 (H4) x 4 bolt washer 7.1. Align bolts with pre-drilled holes. Align bolts with pre-drilled holes. 7.2. Do not over tighten bolts.
- Page 14 step 8: attach back panels (H3) x 4 (H4) x 4 (H1) x 8 bolt washer 8.1. Align bolts with pre-drilled holes. 8.2. Do not over tighten bolts. 8.3. Refer to page 6 for instructions on how to use the cam lock system. 8.4.
- Page 15 step 9: install anti-tip kit (H8) (H4) (H9) (H9) Position against wall Mark position of strap hole on wall (H7) Drill 1/4” hole Tap in wall anchor (H4) (H4) (H6) (H6) adjustable leg levelers Fasten anti-tip strap with wall screw provided (H7) x 1 (H8) x 1...
- Page 16 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 17 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
