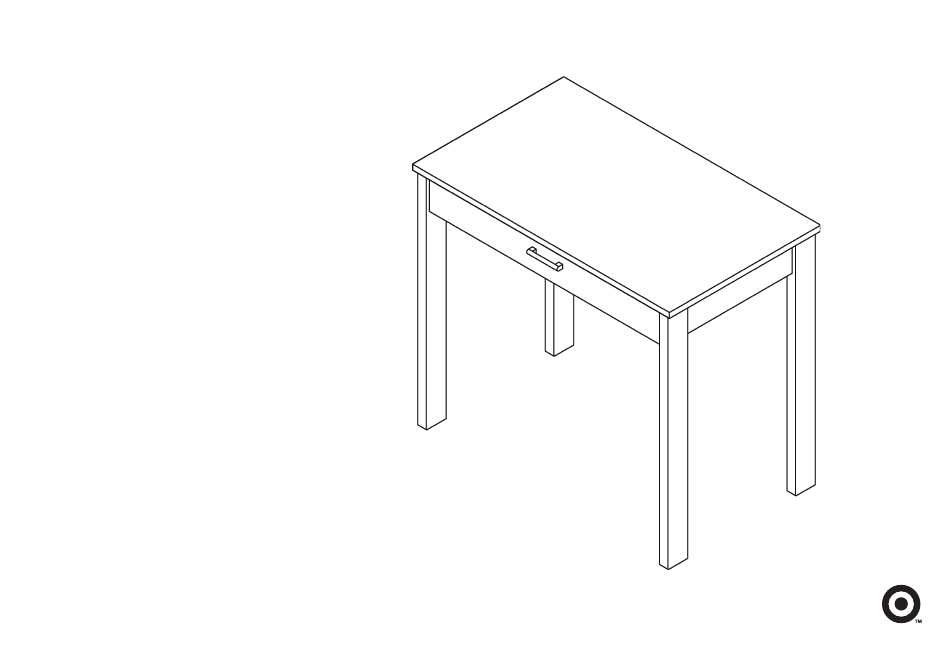

- Page 1 # DSESTDSKWH dpci # 249-14-0617 tcin # 15837514 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-11 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 20 (H2) x 12 (H3) x 12 (H4) x 10 (H5) x 1 wooden dowel cam bolt long flat head screw pull (H6) x 2 (H7) x 4 (H8) x 1 (H9) x 1 (H10) x 2 pull bolt short flat head screw 19mm pan head screw...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame front stretcher back panel keyboard tray right drawer side left drawer side right drawer back left drawer back... -
Page 6: How To Use The Cam Lock System
how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°... - Page 7 step 1: attach front stretcher and back panel to side frames (H1) x 4 (H2) x 6 (H3) x 6 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in left and right side frames. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach top panel (H1) x 6 (H2) x 6 (H2) x 6 (H3) x 6 (H3) x 6 wooden dowel cam bolt cam bolt 2.1. Screw-In cam bolts must be screwed down flush in top panel. Screw-In cam bolts must be screwed down flush in top panel. 2.2.
- Page 9 step 3: assemble drawer (H1) x 10 (H1) x 10 (H5) x 1 (H5) x 1 (H6) x 2 (H6) x 2 (H4) x 10 (H4) x 10 wooden dowel wooden dowel pull pull pull bolt pull bolt long flat head screw long flat head screw 3.1.
- Page 10 step 4: install drawer (H7) x 4 short flat head screw 4.1. With slides fully extended, set drawer down on the tabs of the slides. With slides fully extended, set drawer down on the tabs of the slides. 4.2. On each side, insert one screw into the side and one screw into the bottom of the drawer. 4.3.
- Page 11 step 5: install anti-tip kit (H11) Position against wall (H10) (H9) Mark position of strap hole on Mark position of strap hole on wall wall Drill 1/4’’ hole (H8) Tap in wall anchor Fasten anti-tip strap Fasten anti-tip strap with flat-head screw provided with flat-head screw provided (H12) (H10)
- Page 12 75 lbs. l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-877-436-7290 or e-mail targetsupport@toofurniture.com for service.
- Page 13 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
