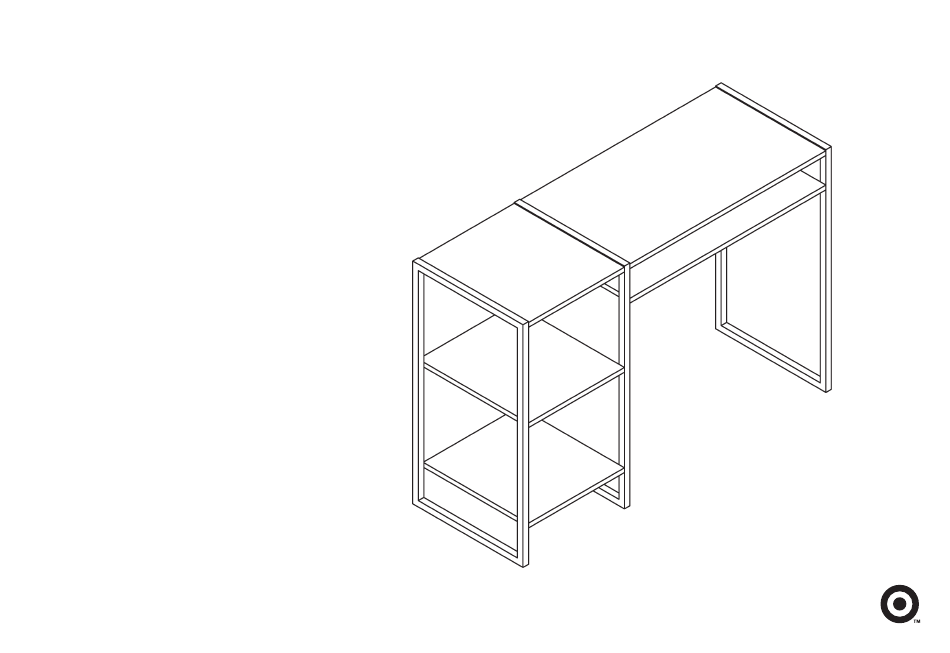

paulo
open desk
style # TGELODSKWH (weathered white)
dpci # 249-14-2307
tcin # 53562663
style # TGELODSKGY (weathered smoke)
dpci # 249-14-2306
tcin # 53562665
style # TGELODSKBR (midtone)
dpci # 249-14-2305
tcin # 53562666
>> assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Target Paulo Open Desk TGELODSKWH
Summary of Contents for Target Paulo Open Desk TGELODSKWH
- Page 1 # TGELODSKGY (weathered smoke) dpci # 249-14-2306 tcin # 53562665 style # TGELODSKBR (midtone) dpci # 249-14-2305 tcin # 53562666 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-12 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 4 (H2) x 4 (H3) x 4 (H4) x 20 (H5) x 1 cam bolt wooden dowel short round head bolt long pan head screw (H6) x 1 (H7) x 1 (H8) x 1 (H9) x 22 (H10) x 4 short pan head screw wall strap...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY left top panel left center panel left bottom panel left back panel right top panel right bottom panel right back panel left side frame center frame right side frame stretcher...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: prepare left center panel and right top panel (H2) x 4 cam bolt 1.1. Screw-In cam bolts must be screwed down flush. 1.2. Refer to page 6 for instructions on how to use the cam lock system. 1.3. Do not over tighten bolts.
- Page 8 step 2: attach left center/bottom/back panels and right top/bottom/back panels (H3) x 4 (H1) x 4 (H1) x 4 (H10) x 4 (H10) x 4 wooden dowel cam bolt cam bolt flat head flat head screw screw 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach center frame and right side frame (H4) x 6 (H12) x 1 round head allen wrench bolt (H11) x 2 (H9) x 6 flat head bolt washer (H11) 3.1. Do not over tighten bolts.
- Page 10 step 4: attach left panels and left side frame (H4) x 10 (H9) x 10 round head washer bolt 4.1. Do not over tighten bolts.
- Page 11 step 5: finish attaching left and right back panels (H4) x 4 (H9) x 4 round head washer bolt 5.1. Do not over tighten bolts.
- Page 12 step 6: install anti-tip kit (H8) (H8) Position against wall Position against wall (H9) (H9) Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole Drill 1/4” hole Tap in wall anchor Tap in wall anchor (H7) (H7) (H6)
- Page 13 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 14 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
