Target LORING Quick Start Manual

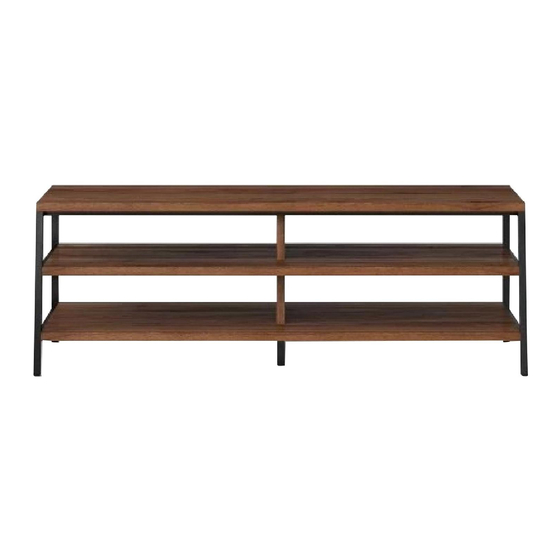

LORING TV STAND
Congratulations on your latest Target purchase
Now what? Don't start sweating over this box of parts. This will be easy. We did the work for
you. All you need to do is follow our simple instructions and you'll be on your way to
transforming your room in no time.
Good luck – though we're confident you won't need it.
Before you begin
Check for damaged or missing parts. Call 1-800-440-0680 to order missing supplies.
Use the carton as a working surface to prevent product damage during assembly.
Gather all tools prior to assembly.
Two person lift and two person assembly.
DISCLAIMER: This video incorporates the instructions provided by the manufacturer with this product.
Target will not be liable for any damage or injury based on your reliance on the content provided.
Hardware
The required hardware parts are:
The 1/4''x1-3/4'' bolts are labeled as (H1) x 8.
The 1/4''x1-3/8'' bolts are labeled as (H2) x 4.
The 1/4"x1/2" bolts are labeled as (H3) x 12.
The M4.2x1-3/8" screws are labeled as (H4) x 9.
The M4.2x1/2" screws are labeled as (H5) x 4.
The cam locks are labeled as (H6) x 4.
The cam bolts are labeled as (H7) x 4.
The M4.2x1-9/16'' screws are labeled as (H8) x 4.
The wrench is labeled as (H9) x 1.
The parts for assembly are identified alphanumerically for ease.
The top panel is labeled as A.
The shelf is labeled as B.
The bottom panel is labeled as C.
The top divider is labeled as D.
The bottom divider is labeled as E.
The left side frame is labeled as F.
The right side frame is labeled as G.
The two rear cross supports are labeled as H.
The cross support is labeled as I.
The foot is labeled as J.
HOW TO USE CAM LOCK SYSTEM
The cam bolt is inserted and secured in the respective hole on the panel.
The cam lock is inserted and secured in the hole present on the panel to be attached.
The panels are brought close to each other at right angles such that the cam bolt can be
inserted into the cam lock of the respective panels.
With the help of a screwdriver, the cam lock is turned 180 degrees clockwise and tightened till
the structure is perfectly secured.
