INSTRUCTION MANUAL

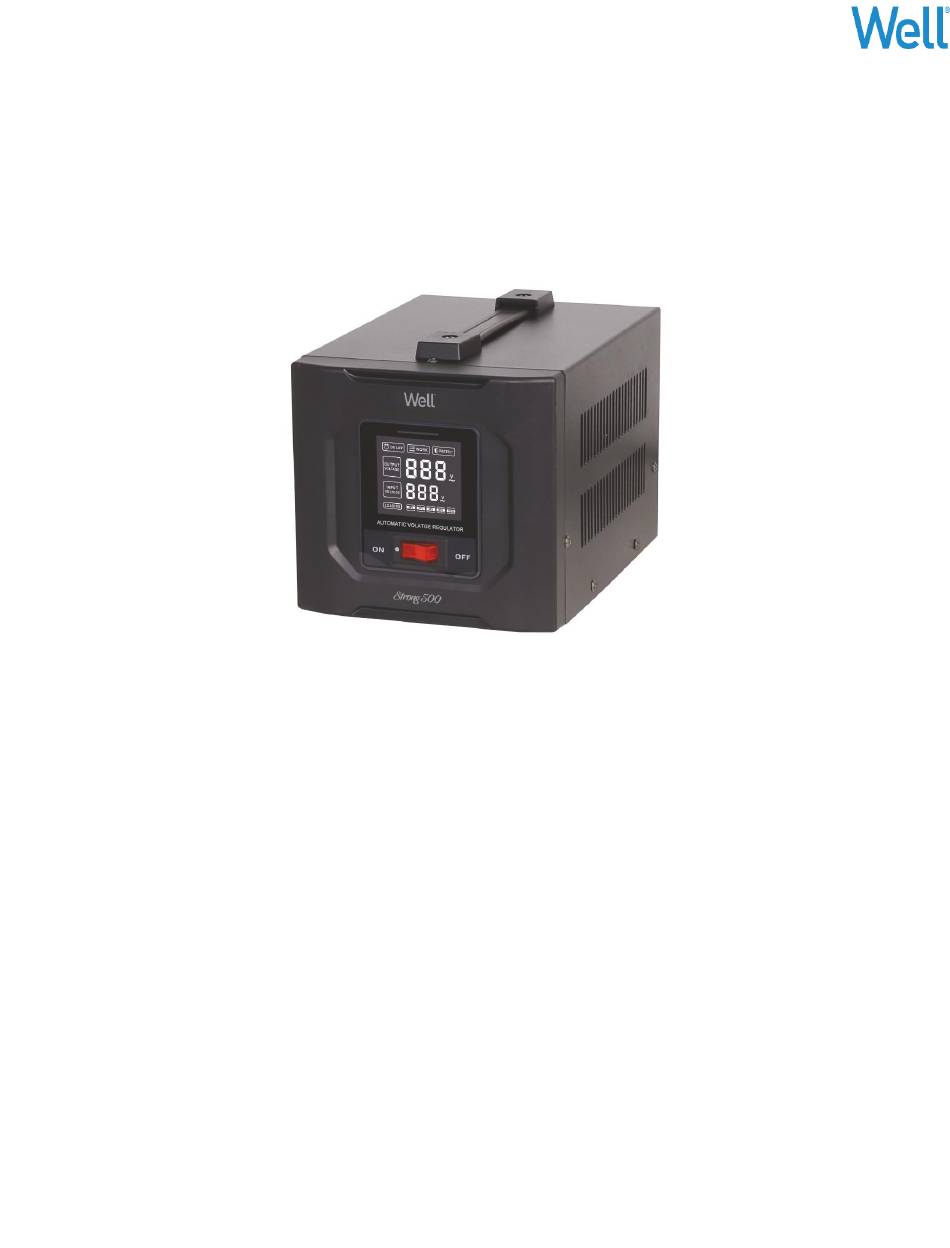

AUTOMATIC VOLTAGE REGULATOR
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: AVR-SRV-STRONG500-WL, AVR-SRV-STRONG1000-WL, AVR-SRV-STRONG1500-WL,
AVR-SRV-STRONG2000-WL, AVR-SRV-STRONG3000-WL, AVR-SRV-STRONG5000-WL.
Advertisement
Related Manuals for Well AVR-SRV-STRONG500-WL
Summary of Contents for Well AVR-SRV-STRONG500-WL
- Page 1 INSTRUCTION MANUAL AUTOMATIC VOLTAGE REGULATOR Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: AVR-SRV-STRONG500-WL, AVR-SRV-STRONG1000-WL, AVR-SRV-STRONG1500-WL, AVR-SRV-STRONG2000-WL, AVR-SRV-STRONG3000-WL, AVR-SRV-STRONG5000-WL.
- Page 2 Make sure the regulator is the same output voltage and frequency as the connected appliances. ALWAYS PLACE THE REGULATOR IN AN ENVIRONMENT WHERE: It is well ventilated. Where is not exposed to sunlight directly or to a heat source. Out of the reach of children.
- Page 3 OUTPUT: Show the output line voltage LOADING：Indicate the loading capacity. WORKING: When the working indicator is lighting, the regulator is working DELAY: When the delaying indicator is lighting, the delay circuit is working and the regulator has no output. When the delay indicator is die out, the delay circuit is off and the regulator resume output. PROTECT: When the red ”protection”...
- Page 4 LOADING CHART If the input voltage is in the range of 198-250V, the regulator is able to provide the 100% listed maximum output power. If the input voltage is below 198V, the regulator's maximum output power will change as the curve shown below. Ensure total load connected does not exceed the rated power for the regulator.
