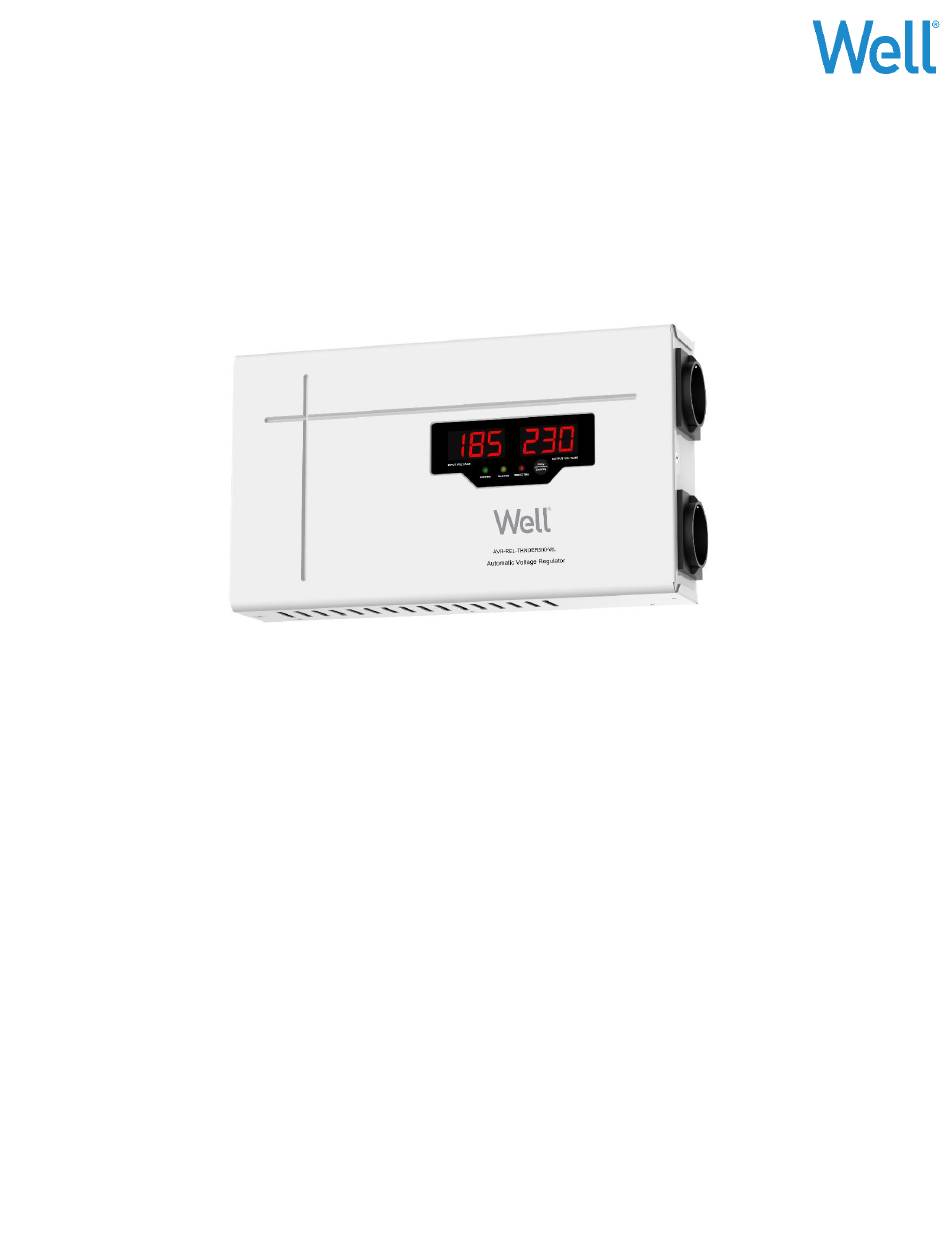

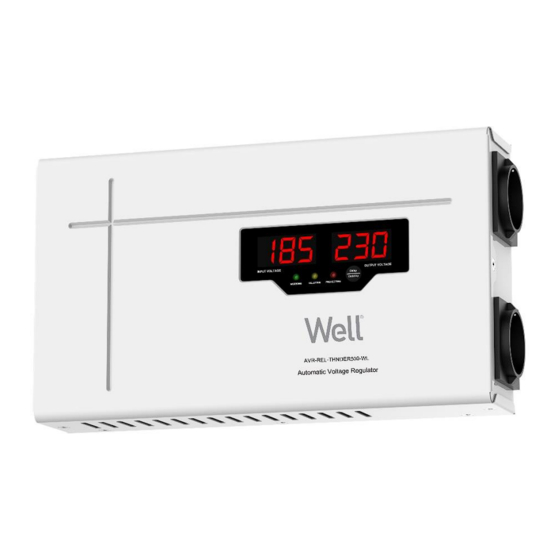

- Page 1 INSTRUCTION MANUAL AUTOMATIC VOLTAGE REGULATOR Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: AVR-REL-THUNDER500-WL, AVR-REL-THUNDER-1000-WL...
- Page 2 Output power capacity must be higher than the AVR rating, or the AVR and generator may not work properly; b) Output frequency of generator must be in range of 48Hz~52Hz or Hz~62Hz, and waveform must be sine wave, otherwise the AVR and generator may not work properly. 2. Specifications Model No. AVR-REL-THUNDER500-WL AVR-REL-THUNDER1000-WL Capacity 300W 600W AC Input Voltage 144V~264V (±3V)
- Page 3 Output Precision +4%, -9% (without load) +4%, -9% (without load) <3% (compare to input wave <3% (compare to input wave Distortion form) form) Power Factor Efficiency >0.95 >0.95 Operating -10˚C~40˚C -10˚C~40˚C Temperature Operating Humidity 0~90%(Non-condensing) 0~90%(Non-condensing) ≤56dB (full load, distance at 1 ≤56dB (full load, distance at 1 Noise meter)
- Page 4 b. Back and Side of the Regulator 7. Hanger 8. Power Switch 9. Input Cable 10. Outlet 5. Operation of the AVR a. Connect the Electrical Appliances to Regulator • Make sure all appliances are turned "OFF", and put power switch of AVR to “OFF” position. •...
- Page 5 e. LED Operation • When the Green LED is "ON", it indicates Power ON and also that the input voltage and output voltage is normal, the AVR is working. • When the Yellow LED is “ON” and flash, it indicates that the regulator is in a delay status, the output will be delayed. •...
- Page 6 Do not place the AVR under direct sunlight or excessive humidity. Keep away from fire, heat sources. Keep the AVR in well ventilated place. Leave at least a distance of 10 cm between the AVR and the walls in order to maintain adequate air-flow.
