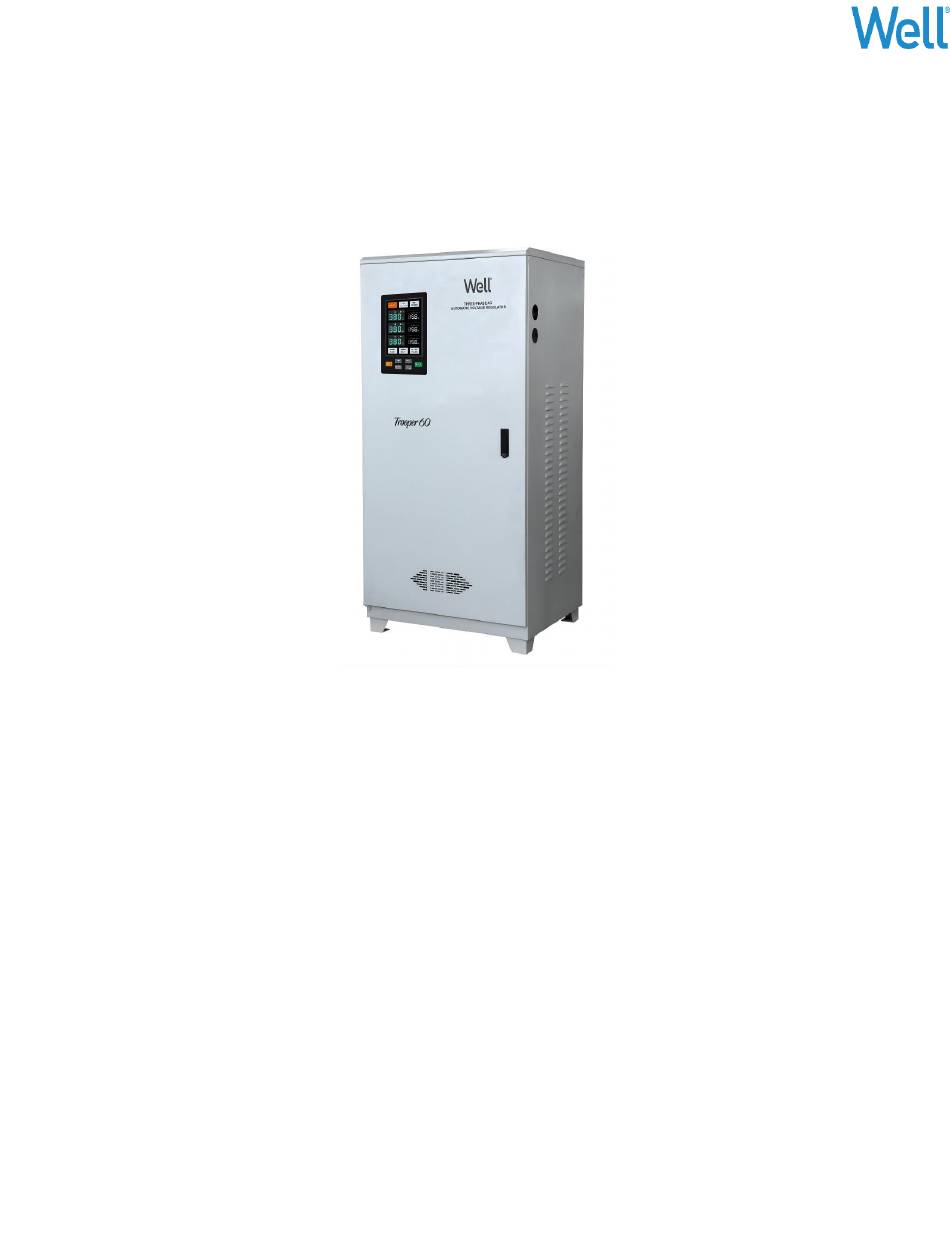

AUTOMATIC VOLTAGE REGULATOR
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Reorder No: AVR-SRV/TRI-TROOPER7.5KVA-WL, AVR-SRV/TRI-TROOPER10KVA-WL,
AVR-SRV/TRI-TROOPER15KVA-WL, AVR-SRV/TRI-TROOPER20KVA-WL,
AVR-SRV/TRI-TROOPER30KVA-WL, AVR-SRV/TRI-TROOPER40KVA-WL,
AVR-SRV/TRI -TROOPER60KVA-WL, AVR-SRV/TRI-TROOPER75KVA-WL,
AVR-SRV/TRI-TROOPER100KVA-WL
INSTRUCTION MANUAL
Advertisement
Table of Contents
Related Manuals for Well AVR-SRV/TRI-TROOPER7.5KVA-WL
Summary of Contents for Well AVR-SRV/TRI-TROOPER7.5KVA-WL
- Page 1 INSTRUCTION MANUAL AUTOMATIC VOLTAGE REGULATOR Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: AVR-SRV/TRI-TROOPER7.5KVA-WL, AVR-SRV/TRI-TROOPER10KVA-WL, AVR-SRV/TRI-TROOPER15KVA-WL, AVR-SRV/TRI-TROOPER20KVA-WL, AVR-SRV/TRI-TROOPER30KVA-WL, AVR-SRV/TRI-TROOPER40KVA-WL, AVR-SRV/TRI -TROOPER60KVA-WL, AVR-SRV/TRI-TROOPER75KVA-WL, AVR-SRV/TRI-TROOPER100KVA-WL...
-
Page 2: Led Indicator
OPERATION INSTRUCTION: 1. Please make sure the connection of the wire correctly. Input power must be connected with neutral, then turn the regulator on, use the line voltage selected switch observe the output voltage, if the indicate normal voltage 380V+4%, then press the button for starting, this machine can supply power in model of the auto-adjust voltage. -
Page 3: Button Functions
1. Symbol Symbol Meanings When this “DELAY” light blinks, regulator is in delaying status. When this “LOW VOLTAGE” light blinks, regulator is in low voltage protection. When this “HIGH VOLTAGE” light blinks, regulator is in high voltage protection. This light shows output/input voltage value of A phase or output/input voltage value between A phase and B phase. This light shows output/input voltage value of B phase or output/input voltage value between B phase and C phase. -
Page 4: Principle Of Work
E-7: Regulator is in phase fault protection Buzzer is sounded. Please check all wire connections whether are correct. E-8: Regulator is in zero phase losing Buzzer is sounded. Please check “N” line whether is well connected. protection Principle of work: 1. - Page 5 gear, after fix a breakdown resume use. When you testing, please turn round the electrical brush lightly, so as not to damaged the servo type machine and the reduction of speed system. 6. Do not overload, use the remaining enough of capacity, especially used for equipment. The compound of regulation power rating efficacy is three times than the general efficacy.
