INSTRUCTION MANUAL

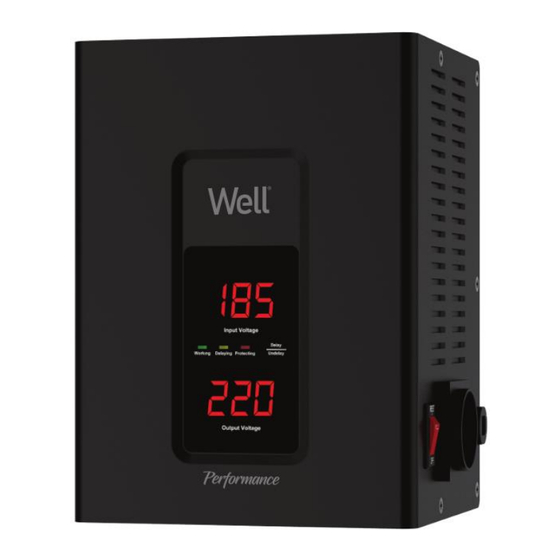

Automatic Voltage Regulator
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: AVR-SRV-PERF1000BK-WL, AVR-SRV-PERF1000WE-WL
Thank you for selecting this smart automatic voltage regulator (AVR). It provides you with a
perfect protection for connected equipment. The manual is a guide to install and use the AVR. It
includes important safety instructions for operation and correct installation of the AVR. Should
have any problems with the AVR, please refer to this manual before calling customer service.
This symbol gives information regarding the points important for user's own health and
safety, AVR operation and the safety of your data.
This symbol gives information, warnings, and other suggestions.
Advertisement
Table of Contents
Related Manuals for Well AVR-SRV-PERF1000WE-WL
Summary of Contents for Well AVR-SRV-PERF1000WE-WL
- Page 1 INSTRUCTION MANUAL Automatic Voltage Regulator Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: AVR-SRV-PERF1000BK-WL, AVR-SRV-PERF1000WE-WL Thank you for selecting this smart automatic voltage regulator (AVR). It provides you with a perfect protection for connected equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Important Safety Instructions ……………………………………………….2 2. Specifications …………………………………………………………………4 3. Before Installation ……………………………………………………………4 a. Contents b. Visual observation 4. Introduction to the Regulator………………………………………………...4 a. Front of the Regulator b. Rear of the Regulator 5. Operation of the AVR…………………………………………………………5 a. - Page 3 Without earth connection or unproved earth connected units are dangerous for user health and have high risk of electronic circuit board faults. When installing the AVR to use cable with improper diameter can be dangerous for user’s health and safety of the unit. - Place all the cables in a proper place so that they are not stepped on or get caught into people’s feet.
-
Page 4: Specifications
2. Specifications AVR-SRV-PERF1000WE-WL Model No. AVR-SRV-PERF1000BK-WL 1000VA/ 600W Capacity AC Input Voltage 150V~250V (±3V) Input Frequency 45Hz~65Hz AC Output Voltage 230V Output Frequency Synchronized with mains frequency Output Precision ±3% (without load) ±3V Distortion <3% (compare to input wave form) -
Page 5: Introduction To The Regulator
4. Introduction to the Regulator Familiarize yourself with the various features and facilities by studying the two diagrams below to obtain maximum benefit from the regulator. a. Front of the Regulator 1. Input voltage display 2. Output voltage display 3. Delay button 4. -
Page 6: Operation Of The Avr
b. Back of the Regulator 7.HANGER 9.OUTLET 8.POWER SWITCH 10. INPUT CABLE 5. Operation of the AVR a. Connect the Electrical Appliance to Regulator • Make sure all appliances are turned "OFF", and put power switch of AVR to “OFF” position. •... -
Page 7: Led Operation
e. LED Operation • When the Green LED is "ON", it indicates Power ON and also that the input voltage and output voltage is normal, the AVR is working. • When the Yellow LED is “ON” and flash, it indicates that the regulator is in a delay status, the output will be delayed. -
Page 8: Short Circuit Protection
Do not place the AVR under direct sunlight or excessive humidity. Keep away from fire, heat sources. Keep the AVR in well ventilated place. Leave at least a distance of 10 cm between the AVR and the walls in order to maintain adequate air-flow. - Page 9 a. Apply to traffic system; b. Apply to medical purpose; c. Apply to nuclear, power system; d. Apply to aviation and aerospace; e. Apply to all kinds of safety devices; f. Other special usages. Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
