Replaceable Parts

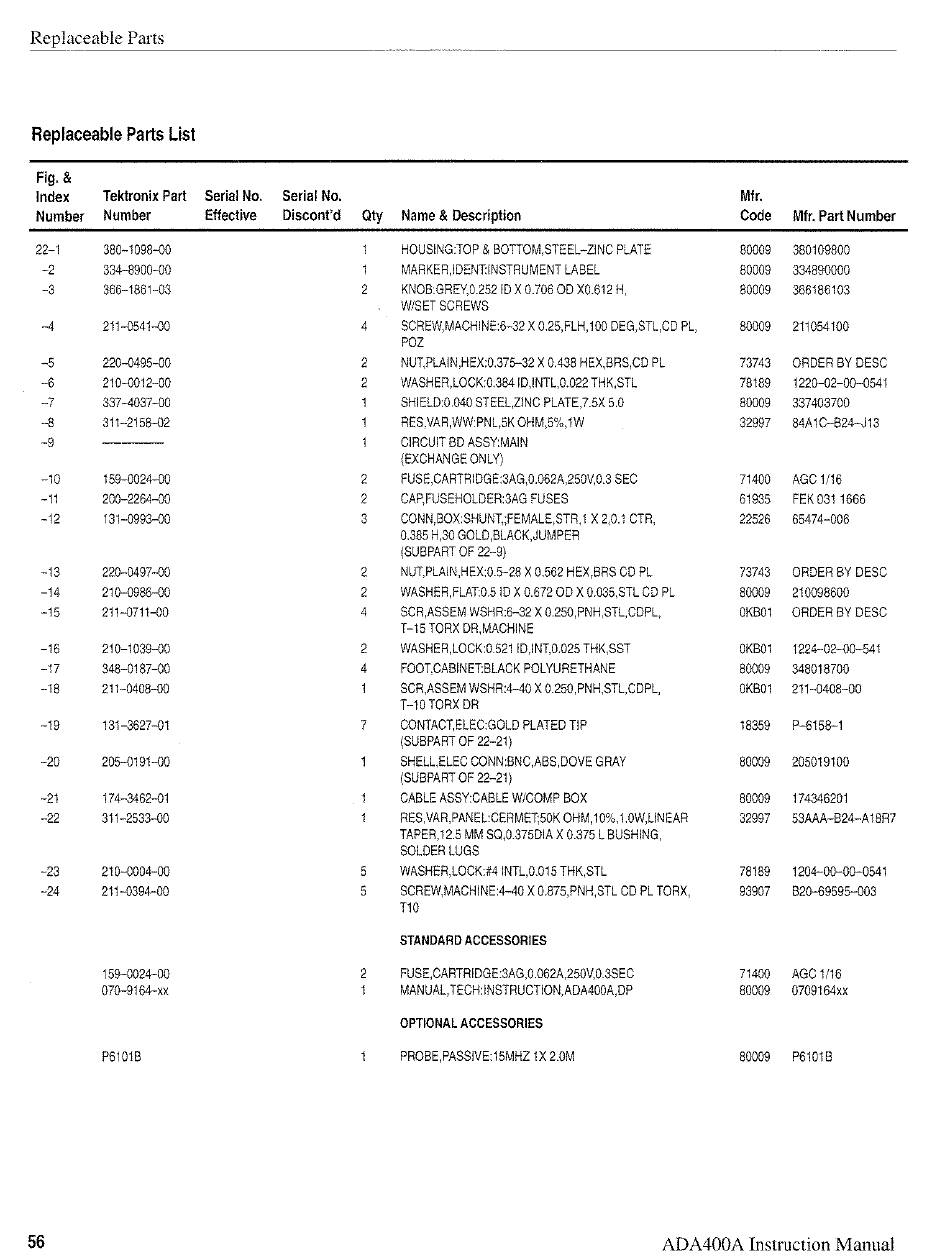

Replaceable Parts List
Fig. &
Index Tektronix Part SerialNo. Serial No. Mfr.
Number Number Effective Disconi'd Qty Name & Description Code Mfr. Part Number
22-4 380~-1098-00 1 HOUSING:TOP & BOTTOM, STEEL-ZINC PLATE gooeg 380109800
-2 334-8900-00 1 MARKER, |DENTINSTRUMENT LABEL 80009 334890000
-3 366-1861-03 2 KNOB:GREY,0.252 ID X 0.706 OD X0.612 H, 80009 366486103
-4 211-0541-00 4 SCREW,MACHINE:6-32 X 0.25,FLH,100 DEG,STL,CD PL, goo0g = 211054100
POZ
5 220-0495-00 2 NUT,PLAIN,HEX:0.375-2 X 0.438 HEX,BRS,CD PL 73743 ORDER BY DESC
-6 210-0012-00 2 WASHER, LOCK:0.384 ID,INTL,0.022 THK,STL 78189 1220-02-00-0541
-7 337-4037-00 1 SHIELD:0,040 STEEL,ZINC PLATE,7.5X 5.0 80009 337403700
-8 $11-2158-02 1 RES. VAR, WW-PNL,5K OHM,5%,1W 32907 84A10-B24—J13
-9 — 1 CIRCUIT BD ASSY:MAIN
{EXCHANGE ONLY)
~10 159-0024-00 2 FUSE, CARTRIDGE:3AG 0.062 250V,0.3 SEC 71400 AGC 1/16
"1 200-2264-00 2 CAP FUSEHOLDER:SAG FUSES 61985 FEK 031 1666
~12 131~0993-00 3 CONN,BOX:SHUNT, -FEMALE,STR,1 X 2.0.1 CTR, 22526 — 65474~006
0,385 H,30 GOLD, BLACK JUMPER
(SUBPART OF 22-9)
~13 220-0497-00 2 NUT,PLAIN,HEX:0.5~28 X 0.862 HEX,BAS CD PL 73743 ORDER BY DESC
-14 210-0986-00 2 WASHER, FLAT:0.5 ID X 0.672 OD X 0,038,STL CD PL soo0g 210098600
~15 211-0711-00 4 SCR,ASSEM WSHR:6~32 X 0.250,PNH,STL,CDPL, OKBO1 ORDER BY DESC
-16 210-1039-00 2 WASHER, LOCK:0.521 ID,INT,0.025 THK,SST OKBOT —1224-02-00~541
-17 348-0187-00 4 FOOT,CABINET:BLACK POLYURETHANE 80009 348018700
-18 211-0408-00 1 SCR,ASSEM WSHR:4~40 X 0.250,PNH,STL,CDPL, OKBOT 211-0408-00
~19 131-3627-01 7 CONTACT,ELEC:GOLD PLATED TIP 18359 P-8158~1
(SUBPART OF 22-21)
20 205-0191-00 1 SHELL,ELEC CONN:BNC,ABS,DOVE GRAY 0009 205019100
(SUBPART OF 22-21)
"21 174-3462-01 1 CABLE ASSY:CABLE W/ICOMP BOX 80009 = 174346201
-22 311-2533-00 1 RES, VAR,PANEL:CERMET:S0K OHM, 10%, 1.0W, LINEAR 32997 SSAAA-B24—A18R7
TAPER,12.5 MM SQ,0.375DIA X 0.375 L BUSHING,
SOLDER LUGS
-23 210-0004-00 5 WASHER,LOCK;:#4 INTL,0.015 THK,STL 78189 — 1204~00-00-0541
~24 211-0394-00 5 SCREW,MACHINE:4~40 X 0.875,PNH,STL CD PL TORX, 93907 B20-69595~003
TIO
STANDARD ACCESSORIES
159-0024~00 2 FUSE,CARTRIDGE:3AG,0.062A ,250V,0.3SEC 71400 AGC IN6
070-9164—xx 1 MANUAL, TECH:INSTRUCTION, ADA400A,DP 80009: 0709164xx
OPTIONAL ACCESSORIES
P6101B 1 PROBE,PASSIVE:15MHZ 1X 2.0M 80009 P6101B
