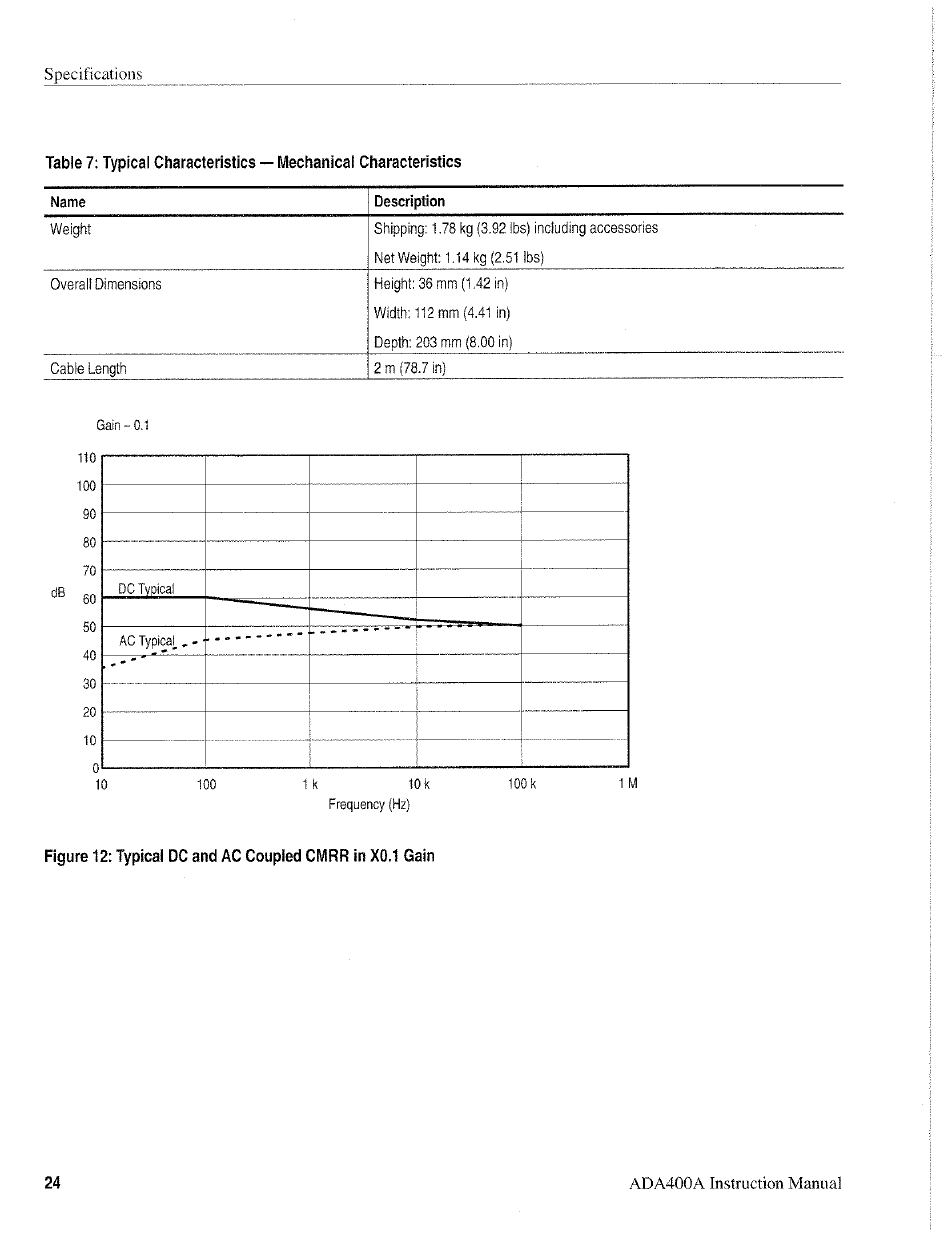

Tektronix ADA400A Instruction Manual page 34

Table 7: Typical Characteristics — Mechanical Characteristics
Name Description
Weight Shipping: 1.78 kg (3.92 Ibs) including accessories
Net Weight: 1.14 kg (2.51 Ibs)
Overall Dimensions Height: 36 mm (1.42 in)
Width: 112 mm (4.41 in)
Depth: 203 mm (8,00 in)
Cable Length 2 m (78.7 in)
Gain ~- 0.1
100
90
80
70
cB gg DC Typical
80, | nmr
20
0
10 100 tk 10k 100 k 1M
Frequency {Hz}
Figure 12: Typical DC and AC Coupied CMRR in X0.1 Gain
24 ADA4OOA Instruction Manual
