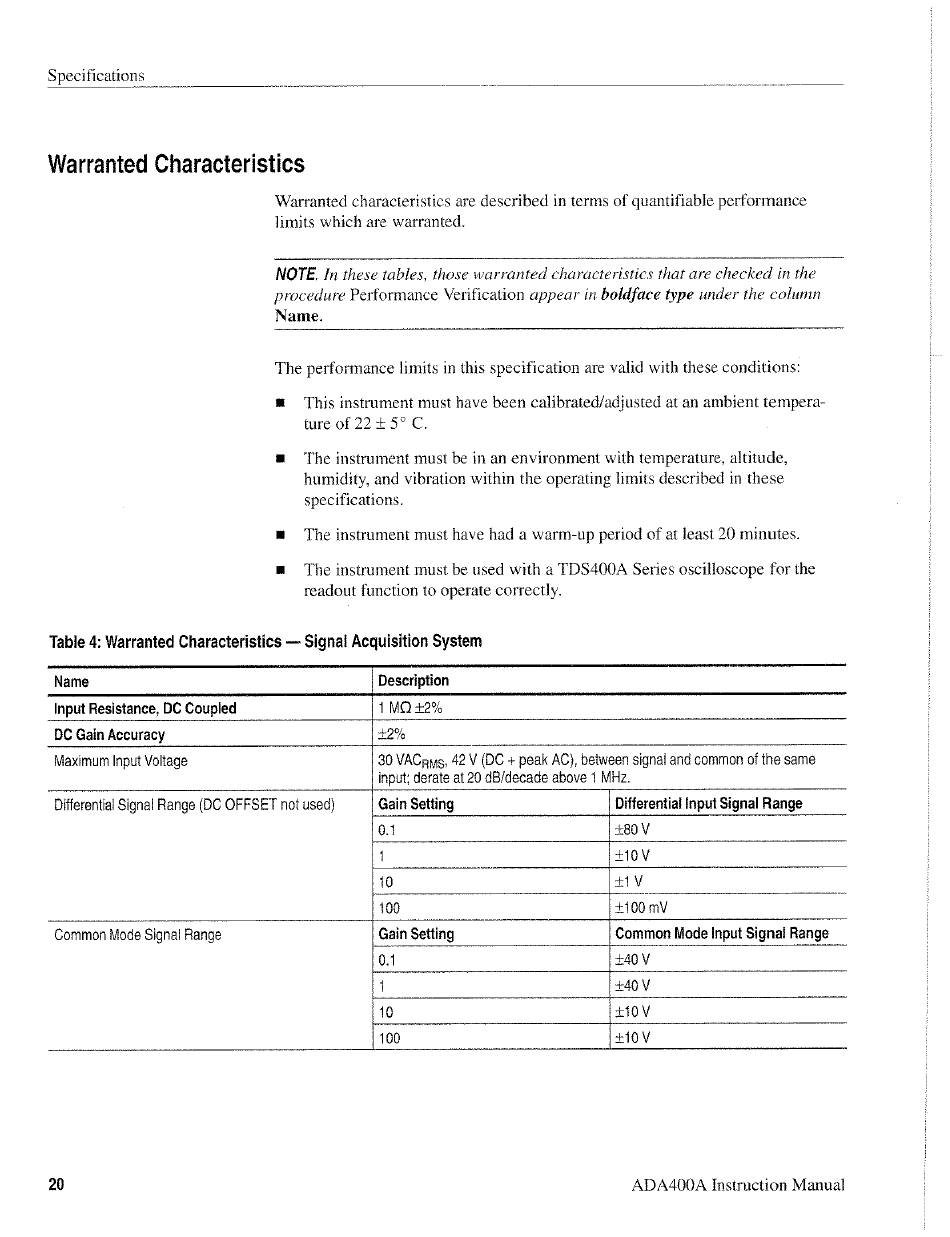

Specifications
Warranted Characteristics
Warranted characteristics are described in terms of quantifiable performance
limits which are warranted,
NOTE. In these tables, those warranted characteristics that are checked in the
procedure Performance Verification appear in beldface type under the column
Name.
The performance limits in this specification are valid with these conditions:
m= This instrament must have been calibrated/adjusted at an ambient tempera-
== The instrument must be in an environment with temperature, altitude,
humidity, and vibration within the operating limits described in these
specifications.
m= The instrament must have had a warm-up period of at least 20 minutes.
m= The instrument must be used with a TDS400A Series oscilloscope for the
readout function to operate correctly.
Table 4: Warranted Characteristics — Signal Acquisition System
Name Description
Input Resistance, DC Coupled 1MQ 22%
DC Gain Accuracy 2%
Maximum Input Voltage
30 VACays, 42 V (DC + peak AC), between signal and common of the same
input; derate at 20 dB/decade above 1 MHz.
Differential Signal Range (DC OFFSET not used) Gain Setting Differential Input Signal Range
0.1 +80V
1 +10V
10 HV
100 £100 mV
Common Mode Signal Range Gain Setting Common Mode Input Signal Range
04 H40V
1 a40V
10 HOV
100 HOV
20 ADA4OOA Instruction Manual
