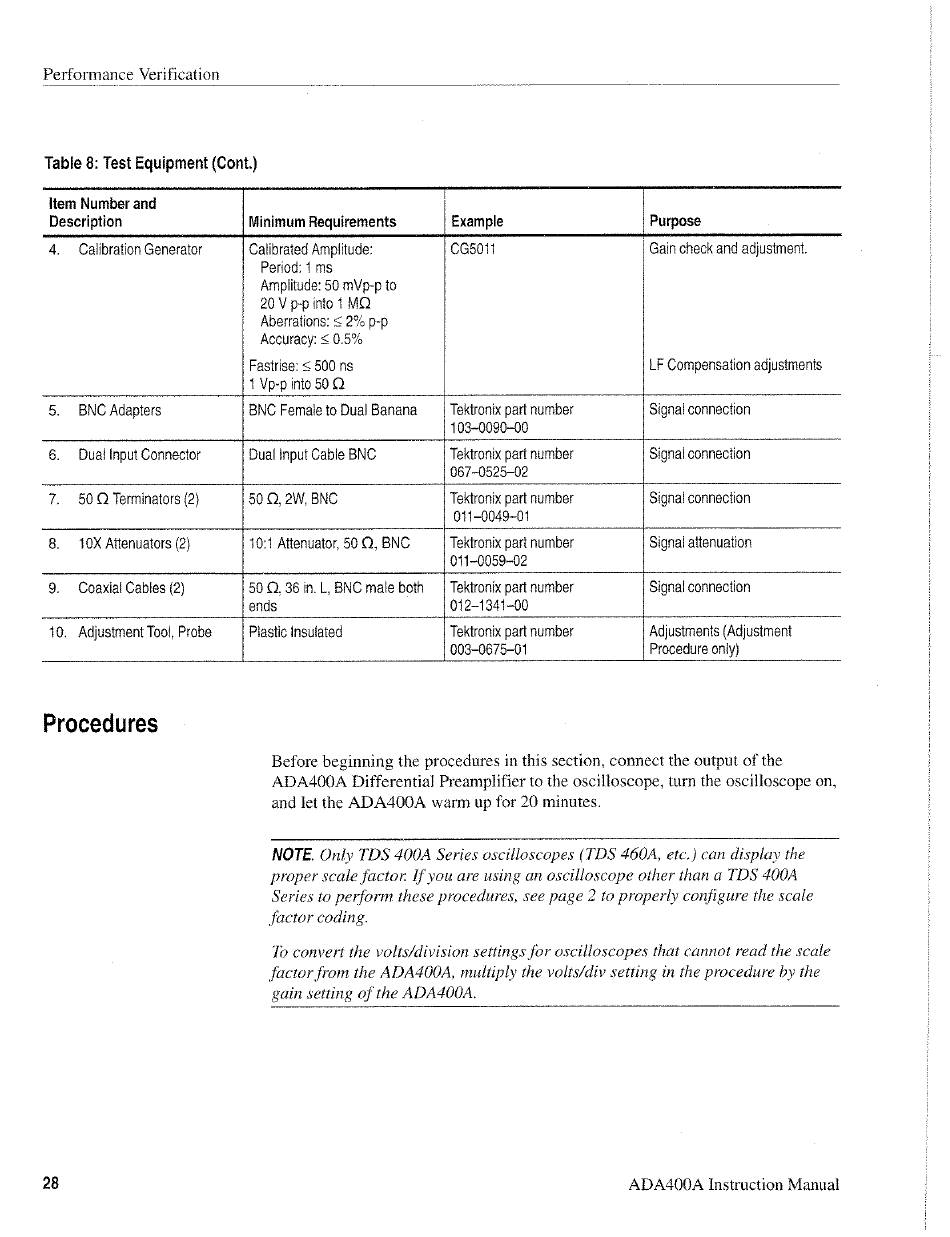

Performance Verification
Table 8: Test Equipment (Cont.)
Item Number and
Description Minimum Requirements Example Purpose
4. Calibration Generator
Period: 1 ms
Amplitude: 50 mVp-p to
Aberrations: < 2% p-p
Fastrise: < 500 ns
1 Vp-p into 50 QO
Gain check and adjustment.
LF Compensation adjustments
5. BNC Adapters BNC Female to Dual Banana
Signal connection
6. Dual Input Connector Dual Input Cable BNC Tektronix part number Signal connection
067-0525-02
7. 50 Q Terminators (2) 50 ©, 2W, BNC Tektronix part number Signal connection
011-0049-01
8. 10X Attenuators (2) 10:1 Attenuator, 50 Q, BNC Tektronix part number Signal attenuation
9. Coaxial Cables (2) 50 ©, 36 in. L, BNC male both | Tektronix part number Signal connection
ends 012-1341-00
10, Adjustment Tool, Probe Plastic Insulated Tektronix part number Adjustments (Adjustment
003-0675-01 Procedure only)
Procedures
28
Before beginning the procedures in this section, connect the output of the
ADAA4OOA Differential Preamplifier to the oscilloscope, turn the oscilloscope on,
and let the ADA4O0A warm up for 20 minutes.
NOTE. Only TDS 400A Series oscilloscopes (TDS 460A, etc.) can display the
proper scale factor. If you are using an oscilloscope other than a TDS 400A
Series to perform these procedures, see page 2 to properly configure the scale
factor coding.
To convert the volts/division settings for oscilloscopes that cannot read the scale
factor from the ADA400A, multiply the volts/div setting in the procedure by the
gain setting of the ADA400A.
