70mai M310 Manual

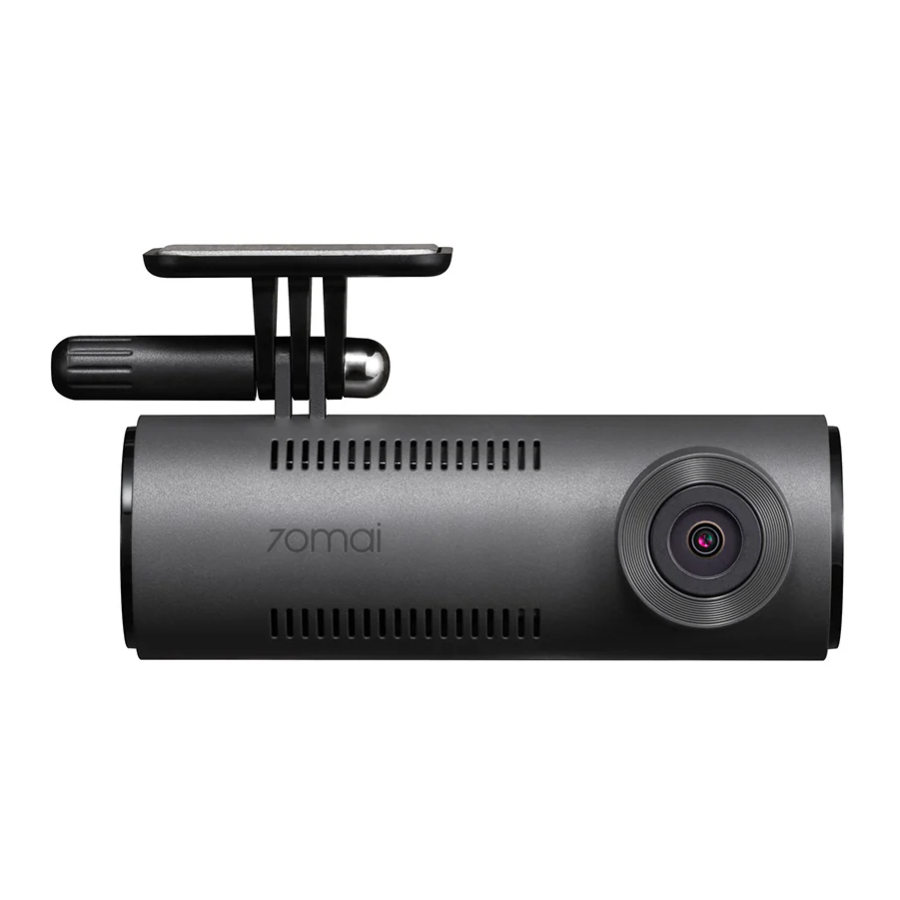

Product overview

Please read this manual carefully before using the product and keep it in a safe place.

Product overview

Package contents

  1. Dash Cam × 1
  2. Power cord × 1
  3. Car charger × 1
  4. Electrostatic sticker × 2
  5. Adhesive sticker × 1
  6. Wiring trim tool × 1
  7. User manual × 1

warning Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Installation

Installing the electrostatic sticker

Paste the electrostatic sticker on the recommended area on the front windshield. Press the sticker to remove air bubbles out.

Avoid the edge of the windshield and select the flat and smooth area for the installation.

warning Note: Keep windshield clean and dry without liquid residue to prevent the sticker from losing adhesion and dash cam from dropping.

Installing the memory card

Insert the memory card into the card slot with the contacts side facing left, as illustrated in the figure.

Mounting the dash cam

Paste the dash cam onto the electrostatic sticker.

Connecting the power cord

Connect the dash cam and car charger with the power cord.

Routing cable

Route the power cord to the vehicle's power outlet and plug the car charger into the power outlet. Start the car engine, and the dash cam will automatically turn on.

warning Note:

  • Use the included wiring trim tool to hide the power cord underneath the vehicle's headliner and rubber seal along the A-pillar.
  • Depending on the vehicle, the power outlet may be located in a different position. The provided figure is for reference only.

Adjusting the camera angle

Bind the dash cam to the 70mai app and enter the dash cam's homepage. Adjust the camera angle based on the real-time image on the screen.

Button functions

Dash cam status Operation Function
Turned off (Dash cam should connect with power source) Press once Turn on the device
Turned on Press and hold for about 3 seconds Turn off the device
Press once Turn the Wi-Fi on/off
Press 4 times in a row Format the memory card
Press 5 times in a row Reset factory settings
Press and hold for about 15 seconds Force restart the device
Receiving the connection request from the phone Press once Confirm the connection authorization

Connecting with the 70mai app

This product needs to be used in conjunction with the 70mai app. Follow the steps below to connect it with the app.

  1. Scan the QR code to download and install the app.

    Scan to download the app

    Or search for "70mai" in the app store to download and install it.
    www.apple.com
  2. Open the app, tap "+" in the device page, find the corresponding dash cam type and tap the dash cam image.
  3. Turn on the dash cam and enable the Wi-Fi hotspot. Follow the on-screen instructions to connect the dash cam's Wi-Fi hotspot in your phone's settings.
  4. Once successfully connected, go back to the 70mai app. In the device page, connect the dash cam and enter the dash cam's homepage. You can view the live video and configure the dash cam settings.

warning Note: Android 5.0 & iOS 11.0 or above is required to connect to the dash cam's Wi-Fi hotspot with a mobile phone.

If you need more help when connecting the app, please scan the QR code below to view the tutorial video.


Scan to view the video

The Wi-Fi hotspot information is as follows:
Hotspot name: 70mai_M310_XXXX (Please check the label on the device for the hotspot name.)
Default password: 12345678

Voice control

Dash cam supports voice control. When the dash cam is operating, voice commands from the user will trigger the corresponding functions.

If the broadcast language of the dash cam is set to Traditional Chinese, the Mandarin voice commands are supported. If any other language is set, only the English voice commands are supported. The voice commands are as follows:

Voice command Function
Take photo Dash cam will take a photo and save it to the album.
Lock the video Dash cam will record an emergency video and store it in the emergency video directory.
Turn on audio Dash cam will record audio as well as videos.
Turn off audio Dash cam will not record audio but only videos.
Turn on hotspot Dash cam's Wi-Fi hotspot will turn on.
Turn off hotspot Dash cam's Wi-Fi hotspot will turn off.

warning Note: When the dash cam is connected to the 70mai app, voice control is not supported.

Specifications

Product: Dash Cam

Model: M310

Input: 5V 2A

Battery capacity: 300mAh

Resolution: 2304 × 1296

Lens: FOV 130°/ F2.0

Battery type: Li-ion battery

Power supply: Car cigarette lighter

Item dimensions: 100.3 × 52.5 × 36.1mm

Wireless connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz

Wi-Fi operation frequency: 2400–2483.5MHz

Wi-Fi maximum output: < 20dBm

Precautions

Before using this dash cam, please read all the precautions and user guide to ensure correct and safe use.

  • This dash cam is a driving aid designed to record external images of the vehicle. And it does not have the function of ensuring the user's driving safety. Users must abide by local traffic rules and regulations and take driving safety as a priority consideration. Do not operate this product while driving.
  • Due to differences in vehicle conditions, driving style, driving environment, and other factors, some functions may not work properly. A power failure, usage in environments outside the normal operating temperature or humidity range, a collision, or a damaged memory card may cause the dash cam to function abnormally. There is no guarantee that this dash cam will function normally under all circumstances. Videos recorded by this dash cam are for reference purposes only.
  • Please install this dash cam correctly, and do not block the driver's line of sight, or block the vehicle's airbag, in order to avoid product failure or personal injury.
  • If the front windshield where the dash cam is installed is covered with colored automotive film, it may affect the video recording quality or cause video distortion. If metallic film is applied to the front windshield, it may lead to a decrease in GPS signal quality for dash cam models equipped with built-in GPS modules.
  • Avoid collisions or forceful jolts to the dash cam, otherwise the product may malfunction. Keep this dash cam away from any strong magnetic fields.
  • Never use chemical solvent or detergent to wash the dash cam.
  • Do not use this dash cam in environments with temperatures over 60°C or below -10°C.
  • When the dash cam has been operating for a period of time, the temperature of the outer casing will rise, so use caution when touching it.
  • Please only use this dash cam within the scope permitted by law.

Safety information

  • Please use the included car charger, power cord, and other accessories in order to avoid product failure due to non-conformance. We shall not be held liable for any loss or damage caused by the use of a non-genuine car charger or power cord.
  • If you use power adapter to charge the dash cam, only use the power adapters that comply with the local safety standards or certified and supplied by qualified manufacturers.
  • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
  • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
  • This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself.
  • Replacement of a battery with an incorrect type can defeat a safeguard (for example, in the case of some lithium battery types).
  • The dash cam and its accessories may contain small parts. To avoid choking or other hazards or damages caused by the children, keep the dash cam out of the reach of children.

Memory card instructions

  • A memory card (sold separately) must be installed in the dash cam before use.
  • The dash cam supports standard microSD cards. Please use memory cards with capacity of 16GB ~ 256GB and rating of class 10, U1 or higher.
  • The default file partition format of the memory card may be inconsistent with the format supported by the dash cam. When inserting the memory card for the first time, please format it in the dash cam before use. Formatting the memory card will delete all files on the card. Please back up important data to another device beforehand.
  • The memory card may become damaged or deteriorated after repeated cycles of overwriting, and this may affect its ability to save video and image files. If this occurs, immediately replace it with a new memory card.
  • Please use a high-quality memory card purchased from a reputable vendor. Inferior memory cards may have issues such as actual reading/writing speeds that do not match the stated speeds, and an actual storage capacity that does not match the stated storage capacity. We shall not be held liable for lost or damaged videos caused by the use of a low-quality memory card.
  • Do not insert or remove a memory card while the dash cam is turned on.

Service

Service: help@70mai.com
For further information, please go to www.70mai.com
Scan the QR code and email us at help@70mai.com
