70mai M300 - Dash Cam Manual

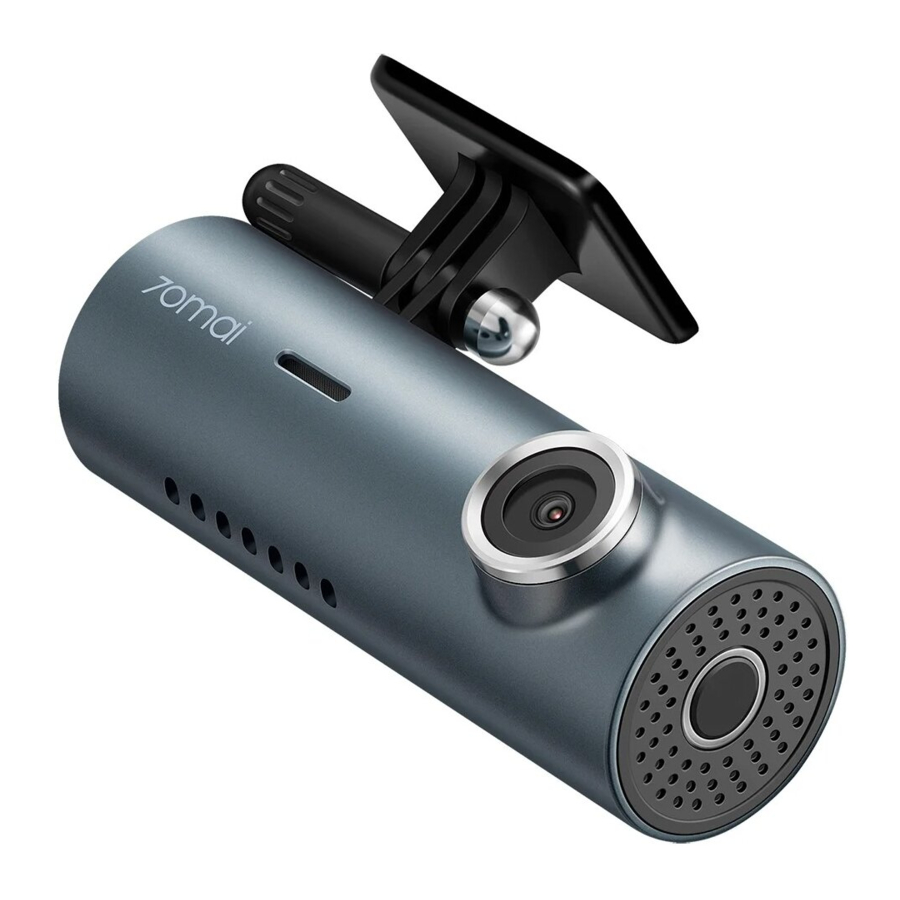

Product overview

Product overview

information Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Installation

Installing the electrostatic sticker

Clean your windshield and put the electrostatic sticker on the recommended area as shown in the figure. Avoid the edge of the windshield and select the flat and smooth area for the installation.

Make sure you remove air bubbles between the sticker and the glass.

Installing the memory card

Insert the memory card into the card slot with its contacts facing up until you hear a click. The memory card is well-installed.

Mounting the dash cam

Peel off the protective film from the adhesive sticker on the base of the mount, and paste the dash cam onto the electrostatic sticker in the dotted area.

Connecting the power supply

As shown in the figure, run the power cord along the top of the windshield, down the A-pillar, and around the glove compartment, so that the power connector is near the cigarette lighter. Connect the power cord to the car charger, then plug the charger into the cigarette lighter socket.

information Note: Depending on the vehicle, the cigarette lighter socket may be located in a different position. The figure provided is for reference only.

Button functions

Press the power button a different number of times to perform different functions.

Status Operation Function
Turned off Press once Turn on the device
Turned on Press once Turn the Wi-Fi on/off
Press 3 times in a row Format the memory card
Press 5 times in a row Reset factory settings
Press and hold for 3 seconds Turn off the device
Receiving the connection request Press once Confirm the connection authorization

information Note: If the dash cam won't turn on, or it's not responding during the operating, use a pin to press the reset button, and then the dash cam will automatically turn on.

Download 70mai app

This product may be used in conjunction with the 70mai app. Please search for "70mai" in the app stores or scan the QR code to download and install the app.

information Note: Android 5.0 & iOS 11.0 or above is required to connect to the dash cam's Wi-Fi hotspot with a mobile phone.

70mai Dash Cam M300 Wi-Fi hotspot information
Hotspot name: 70mai_M300_XXXX (Please check the label on the device for the hotspot name.)
Default password: 12345678

Please refer to the online guide for how to establish a connection.

Online guide

Scan the QR code to access the online guide. The guide provides detailed product information, including descriptions of functions. Please carefully read this guide before use in order to avoid damage due to incorrect use.

Memory card instructions

  • A memory card (sold separately) must be installed in the dash cam before use.
  • The dash cam supports standard MicroSD cards. Please use memory cards with the capacity between 16 GB ~ 128 GB and rating speed of Class 10 or above.
  • The default file partition format of the memory card may be inconsistent with the format supported by the dash cam. When inserting the memory card for the first time, please format it in the dash cam before use. Formatting the memory card will delete all files on the card. Please back up important data to another device beforehand.
  • The memory card may become damaged or deteriorated after repeated cycles of overwriting, and this may affect its ability to save video and image files. If this occurs, immediately replace it with a new memory card.
  • Please use a high-quality memory card purchased from a reputable vendor. Inferior memory cards may have issues such as the actual reading/writing speeds do not match the stated speeds, and the actual storage capacity does not match the stated storage capacity. We shall not be held liable for lost or damaged videos caused by the use of a low-quality memory card.
  • In order to avoid reading and writing speeds decreasing after prolonged use, it is recommended to format the memory card in the dash cam every two weeks.
  • Do not insert or remove the memory card while the dash cam is turned on.

Precautions

Before using this dash cam, please read all the precautions and the online guide to ensure correct and safe use.

  • This dash cam is intended to assist drivers with the purpose of recording the environment outside the vehicle. The dash cam does not guarantee the user's driving safety. We shall not be held liable for any accident, damage, or loss of information caused by operating the dash cam while driving.
  • Due to differences in vehicle conditions, driving style, driving environment, etc., some functions may not work properly. A power failure, usage in environments outside the normal operating temperature or humidity range, a collision, or a damaged memory card may cause the dash cam to function abnormally. There is no guarantee that this dash cam will function normally under all circumstances. Videos recorded by this dash cam are for reference only.
  • Please install this dash cam correctly, and do not block the driver's line of sight, nor block the vehicle's airbag, in order to avoid product failure or personal injury.
  • Please use the included car charger, power cord, and other accessories in order to avoid product failure due to nonconformance. We shall not be held liable for any loss or damage caused by the use of a non-genuine car charger or power cord.
  • If the battery becomes deformed, swollen, or starts leaking during use or storage, stop using the dash cam immediately in order to avoid safety issues, and contact after-sales service.
  • Please keep this dash cam away from any strong magnetic fields, as they may cause damage to the dash cam.
  • Do not use this dash cam in environments with temperatures over 60°C or below -10°C.
  • Please only use this dash cam within the scope permitted by law.

Specifications

Product: Dash Cam
Model: M300
Input: 5 V 1.5 A
Power supply: Car cigarette lighter
Battery type: Lithium polymer battery
Battery capacity: 240 mAh
Wireless connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz

Packing list

  1. 70mai Dash Cam M300 × 1
  2. Power cord × 1
  3. Car charger × 1
  4. Electrostatic sticker × 1
  5. User manual × 1

Safety information

Battery abuse or mishandling can cause overheat, liquid leakage, or an explosion. To avoid possible injury, do the following:

  • Do not open, disassemble, or service any battery.
  • Do not attempt to replace the internal rechargeable lithium batteries.
  • Do not crush or puncture the battery.
  • Do not short-circuit the battery, or expose it to water or other liquids.
  • Keep the battery away from children.
  • Keep the battery away from fire.
  • Do not leave the battery in an extremely high-temperature environment or an extremely low air pressure environment.
  • Stop using the battery if it is damaged, or if you notice any discharge or the buildup of foreign materials on the battery leads. We recommend that the batteries be charged about once every three months to prevent overcharge.
  • Do not put the battery in trash that is disposed of in landfills. When disposing of the battery, comply with local laws or regulations.

Service: help@70mai.com

For further information, please go to www.70mai.com

Manufacturer: 70mai Co., Ltd.

Address: Room 2220, Building 2, No. 588 Zixing Road, Minhang District, Shanghai, China 07

Scan the QR code and email us at help@70mai.com
