70mai Lite, Midrive D08 - Dash Cam Manual

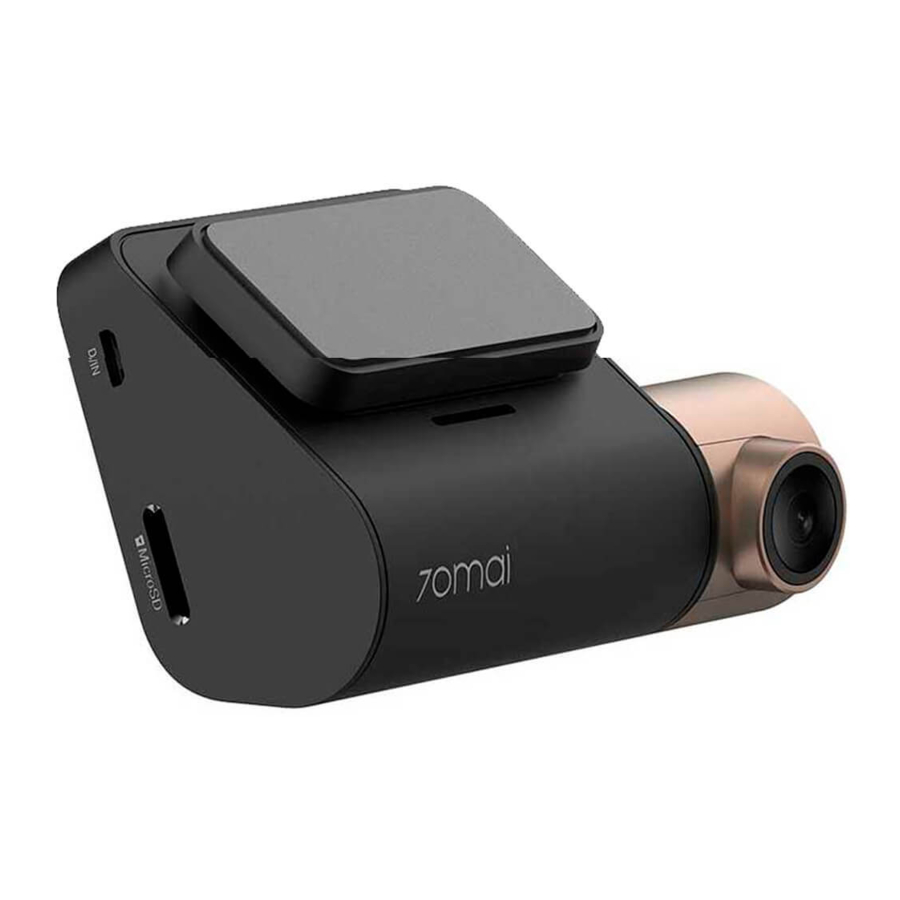

The 70mai Dash Cam Lite is equipped with professional video recording chip and image sensor for capturing high-quality videos.

Activating the Device

The 70mai Dash Cam Lite must be activated using the 70mai app. To download and install the app, search for "70mai" in Google Play Store (Android) or App Store (iOS).
Or you can download the app by scanning the QR code below:

Please select "Add Device" in the 70mai app and complete the activation according to the prompts.

Product overview

Product overview - Part 1
Product overview - Part 2

Installation

Please install the product following the method below.

Install the electrostatic sticker
Clean your windshield and put the electrostatic sticker on the recommended area as shown in the figure below.
Make sure you remove air bubbles between the sticker and the glass.
Install the bracket
Lock the bracket to the Dash Cam, as shown in the figure below. You will hear a snap when it is in place.
Stick the camera mount to the windshield
Remove the protective cover from the mount and stick the mount's base to the center of the electrostatic sticker. Make sure your Dash Cam body is parallel to the ground.
Press the mount to attach it to the electrostatic sticker tightly.
Connect USB cable to the cigarette lighter receptacle
Align the cable with the top edge of the windshield and fasten it along the passenger's side and the glovebox as shown below. Connect the cable to the power adapter and insert the adapter into the cigarette lighter receptacle.

Note: The cigarette lighter receptacle might be positioned differently in your car. The picture is provided for reference only.
Note: You can use the cable crowbar in the box to hide the power cord underneath a rubber sealing strip.

Adjust the Dash Cam angle
Turn on the Dash Cam and adjust the camera angle up and down against the preview screen to ensure that the camera is facing the front.

Accessory

This device can be used together with 70mai GPS Mount Holder(sold separately).
After being properly installed and connected with the mount holder, you can enable ADAS and other functions on the device.
Please scan the QR code below to get the online user guide.

Specifications

Model: Midrive D08
Image sensor: SONY IMX307
Resolution: 1920×1080
Camera: FOV 130°
Wireless connection: Wi-Fi IEEE 802.11 b/g/n/ 2.4GHz
G-sensor: Acceleration sensor
Expandable memory: MicroSD card with capacity of 16-64GB and read/write speed of Class10 and above
Supported OS: Android4.4/iOS9.0 and above
Power supply: Car cigarette lighter
Battery type: Li-polymer battery
Battery capacity: 500mAh
Input: 5V 1.5A
Operating temperature: -10℃ ~ 60℃
Dimensions: 82 × 58.2 × 40.5mm

Package contents

70mai Dash Cam Lite ×1
USB cable×1
Power adapter×1
Electrostatic sticker×1
Heat resistant adhesive ×1
Mounting bracket ×1
User manual×1

Safety precautions

Please read all precautions and instructions carefully before using this product to ensure proper and safe usage.

This product records videos outside of moving vehicles. It can't protect drivers and passengers from any accidents. We shall not take any responsibility if the user gets involved in any traffic accident and/ or bear any loss due to product failure, information loss, or product operation.
Due to differences in vehicle type, driving preferences, the environment, and other differences, parts of the product or the whole product may not work normally in some circumstances. The device may not record normally due to loss of power source, abnormal temperatures and/or humidity, collisions, damage to the TF card, and other reasons. We do not guarantee that all the recorded videos will be saved completely in any given situation. The images recorded by this product are for reference only.
Install the product correctly. Do not block the driver's vision. Do not obstruct the air bag. Keep the product at least 20cm away from the driver and passengers. Incorrect installation of the product may cause product failure and injury.
Please use the car charger and USB cable that comes with this device to avoid compatibility issues. 70mai is not responsible for any loss caused by the use of non- standard car chargers and USB cables.
The memory card is not included in the package. You will need to buy it by yourself.
Use a TF card with storage capacity between 16GB and 64GB, and reading and writing speed not lower than Class10. Format the TF card before using it.
Do not insert or pull out the TF card when the product is working to avoid damaging the TF card.
TF card may be damaged after repetitive use. Replace TF cards in time to maintain proper recording. We shall not bear any responsibility caused by failed TF cards.
This device is equipped with a built-in battery that is not removable. Do not disassemble the device yourself. The battery (battery pack or assembled battery) shall not be exposed to overheating environments such as sunlight, fire, or the like. If the battery is replaced improperly, there is a danger of explosion, so that it can only be replaced with a battery of the same or equivalent type.
The device should not be exposed to water droplets or water splashes. Keep the device dry to avoid battery failure.
If the battery is deformed, swelling, or leaking, stop using the product immediately and contact customer service.
Do not shake or press the product. Strong impact or shaking may cause irreparable damage to the product.
Do not clean this product by chemical solvents or cleansers.
Keep this product away from strong magnetic fields to avoid damage.
Do not use this product in temperatures higher than 60℃ or lower than -10℃.
Please note that the housing's temperature rises when the device is running.
Use this product within the scope of the law.

Service: help@70mai.com
For further information, please go to www.70mai.com
Manufacturer: 70mai Co., Ltd
Address: Room2220, building2, No.588, Zixingroad, MinHangDistrict, Shanghai, China
