Product overview

Please read this manual carefully before using the product and keep it in a safe place.

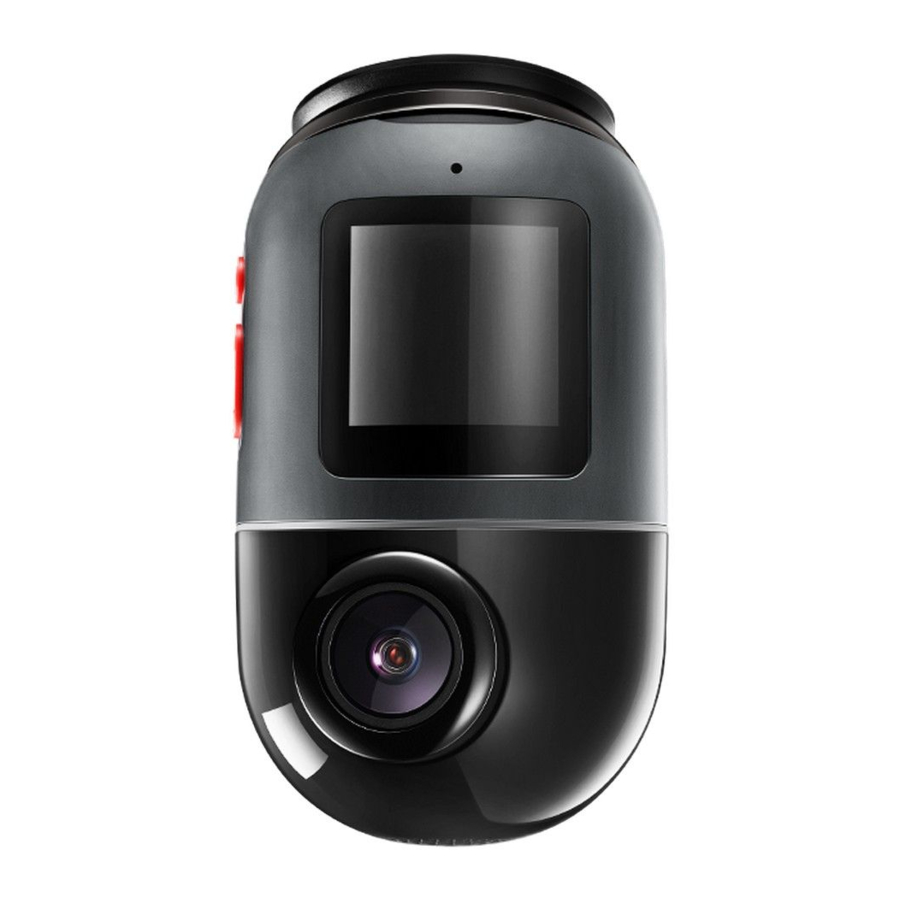

Product overview

Power button
Upper button
Lower button
Adhesive sticker
Mount
Microphone
Display screen
Camera
Speaker
Power port
Round-shape indicator
Tripod head

Specifications

Product: Dash Cam
Model: X200
Resolution: 1920 × 1080
Lens: FOV 140°/ F1.5
Battery capacity: 300 mAh
Input: 5 V 2 A
Power supply: Car cigarette lighter
Battery type: Lithium polymer battery

Packing list

Dash Cam × 1
Power cord × 1
Car charger × 1
Mount(Pre-installed on the dash cam) × 1
Electrostatic sticker × 2
Wiring crowbar × 1
Adhesive sticker × 2 (With 1 piece pre-applied to the mount)
User manual × 1

warning Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Installation

Selecting mounting position
Mount the dash cam on either of the recommended positions of front windshield as appropriate:
1. Near the center of rearview mirror;
2. On the front of the passenger seat.
  Notes:
  - Make sure the camera is below the level line of the rearview mirror.
  - Attach the electrostatic sticker on the selected position, with the gap image facing upwards. Press the sticker to remove air bubbles out.
  - Keep windshield clean and dry without liquid residue to prevent the sticker from losing adhesion and dash cam from dropping.
Installing the dash cam
Paste the dash cam on the electrostatic sticker.
Make sure the gap on the adhesive sticker aligns with that on the electrostatic sticker and the display screen faces the car interior.
Routing cable
Route the power cord to the cigarette lighter and connect to power.

warning Notes:

Use the included crowbar to hide the power cord underneath the vehicle's headliner and rubber seal along the A-pillar.
Depending on the vehicle, the cigarette lighter socket may be located in a different position. The figure provided is for reference only.

Adjusting the dash cam angle
Hold the dash cam and turn the dash cam up and down to adjust the dash cam angle based on the preview screen.

Installing/uninstalling the mount

The mount is pre-installed on the dash cam. If you need to uninstall it, follow the steps below:

Uninstalling the mount: Hold the dash cam and screw it clockwise and then the dash cam will separate with the mount.

Installing the mount:

Align the microphone with the big locating point on the right of the mount, and then the dash cam is inserted to the mount.
Hold the dash cam and screw counterclockwise until the microphone is aligned with the big locating point on the left of the mount, and then the dash cam is tightened up with the mount.

Downloading 70mai app

This product needs to be used in conjunction with the 70mai app. You can download and install the app by scanning the QR code or finding "70mai" in the app store.

warning Note: Android 5.0 & iOS 11.0 or above is required to connect to the dash cam's Wi-Fi hotspot with a mobile phone.

Accessories (optional)

This product can also be used with the 70mai 4G Hardwire Kit. Scan the QR code to obtain the user guide for the 70mai 4G Hardwire Kit.

Precautions

Before using the dash cam, please read all the precautions and the user guide to ensure correct and safe use.

The dash cam is intended to assist drivers with the purpose of recording the environment outside the vehicle. The dash cam does not guarantee the user's driving safety. We shall not be held liable for any accident, damage, or loss of information caused by operating the dash cam while driving.
Due to differences in vehicle conditions, driving style, driving environment, etc., some functions may not work properly. A power failure, usage in environments outside the normal operating temperature or humidity range, or a collision may cause the dash cam to function abnormally. There is no guarantee that this dash cam will function normally under all circumstances. Videos recorded by this dash cam are for reference only.
The eMMC (Embedded Multi Media Card) is built in the dash cam for storage. You can find the memory capacity information on the label of the dash cam and product box.
Install this dash cam correctly, and do not block the driver's line of sight, nor block the vehicle's airbag, in order to avoid product failure or personal injury.
Use the included car charger, power cord, and other accessories in order to avoid product failure due to nonconformance. We shall not be held liable for any loss or damage caused by the use of a non-genuine car charger or power cord.
The dash cam is equipped with a built-in battery that cannot be removed. Do not disassemble the dash cam. Do not expose batteries or battery packs to sunlight, fire, or environments where the ambient temperature is extreme heat. There is a risk of explosion if the battery is incorrectly installed, therefore only use and replace with the same or an equivalent type of battery.
Keep the dash cam away from water drops or splashes. Keep the device dry to avoid battery failure.
If the battery becomes deformed, swollen, or starts leaking during use or storage, stop using the dash cam immediately in order to avoid safety issues, and contact after-sales service.
Never wash the dash cam with chemical solvent or cleaner.
Keep the dash cam away from any strong magnetic fields, as they may cause damage to the dash cam.
Do not use the dash cam in environments with temperatures over 60°C or below -10°C.
After working for a period of time, the case temperature of the dash cam will rise, please be careful when touching it.
Only use this dash cam within the scope permitted by law.
