Computer System Requirements
Supported Systems
Operating System: Windows 10 and 11
l
USB:USB 2.0 and later
l
Minimum Requirements
Processor: Core i5 at 2.7 GHz
l
RAM: 4 GB
l
Free Hard Disk Space on C: drive: 20 GB
l

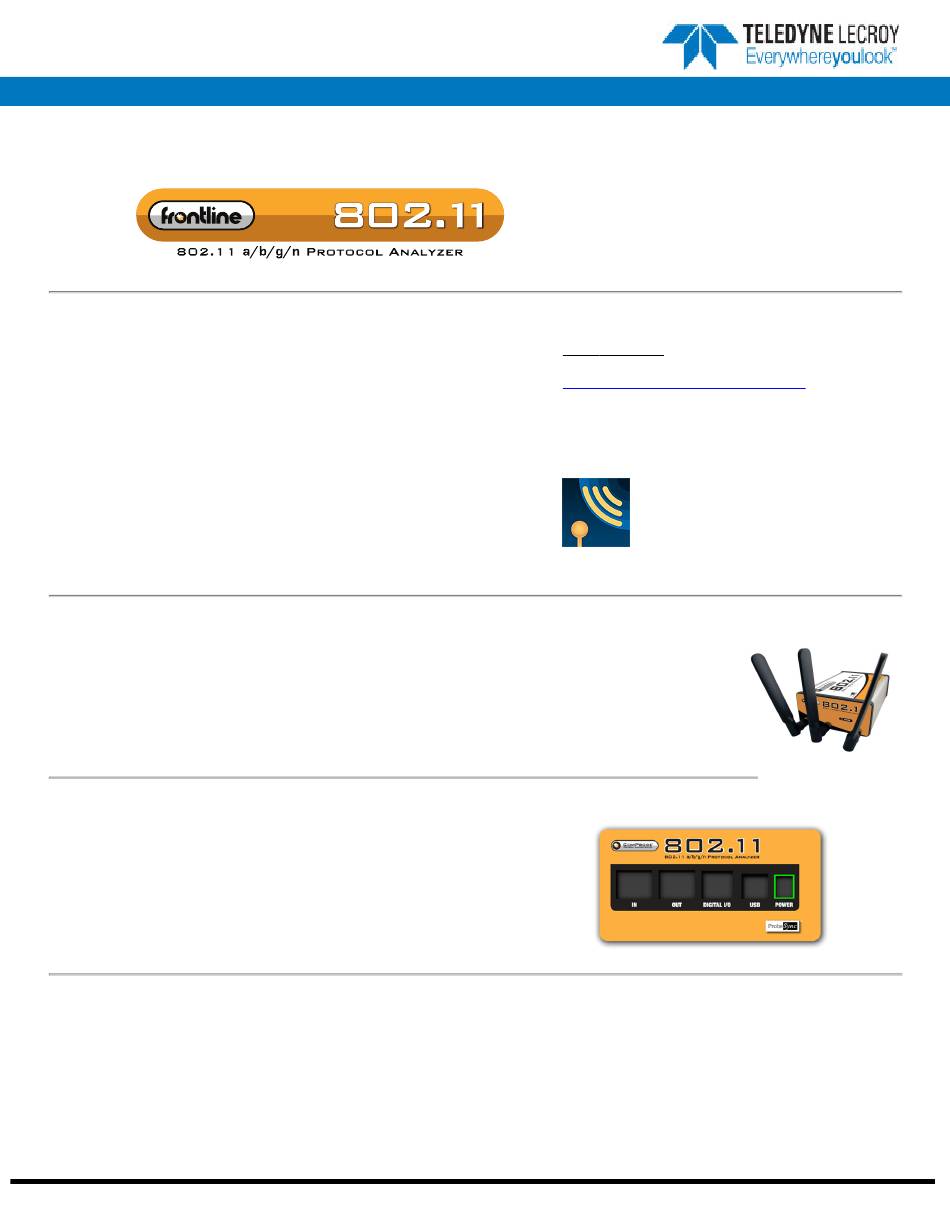

1. Attach Antennas
Remove the Frontline 802.11 hardware from the box and attach the antennas to the two SMA connectors.
2. Apply Power
1. Insert the 12 volt AC adapter DC connector int the POWER jack on the back panel.
2. Plug the 12 volt AC adapter into an AC power source. The front panel POWER light
illuminates.
3. Connect to the PC
1. Insert the USB cable into the USB jack on the back panel.
2. Insert the other end of the USB cable into a USB port on your PC.
Frontline Technical Support: Frontline_TechSupport@Teledyne.com
Quick Start
Guide
Install Software
From Download: Download the latest Frontline
l
installer from FTE.
https://fte.com/products/default.aspx. Once
downloaded, double-click the installer and follow
the directions.
When the installation is complete pin the Wireless
Protocol Suite icon to your taskbar.
