Computer System Requirements
Supported Systems
Operating System: Windows 10
l
USB:USB 2.0 and later
l
Minimum Requirements
Processor: Core i5 at 2.7 GHz
l
RAM: 4 GB
l
Free Hard Disk Space on C: drive: 20 GB
l

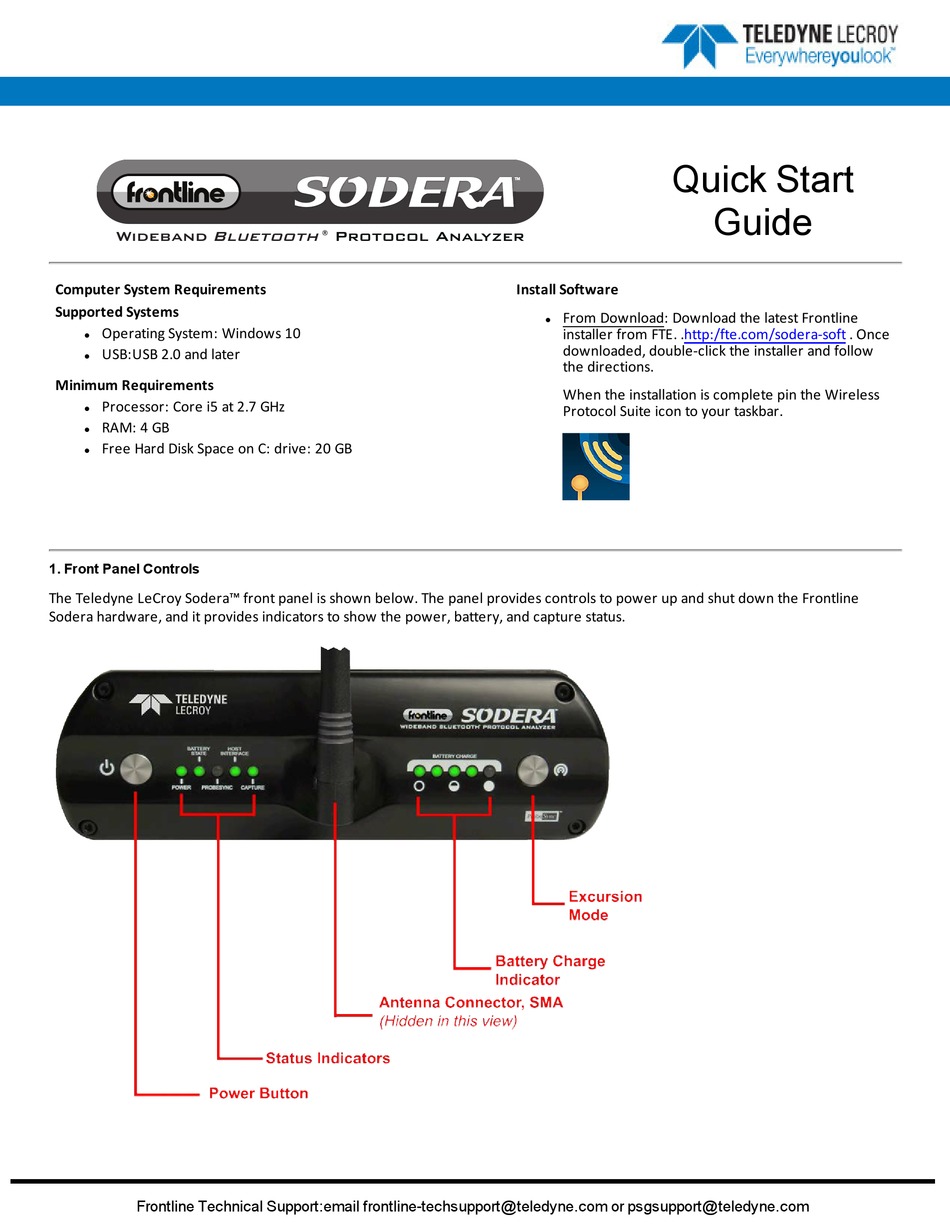

1. Front Panel Controls
The Teledyne LeCroy Sodera™ front panel is shown below. The panel provides controls to power up and shut down the Frontline
Sodera hardware, and it provides indicators to show the power, battery, and capture status.
Frontline Technical Support:email frontline-techsupport@teledyne.com or psgsupport@teledyne.com
Quick Start
TM
Install Software
From Download: Download the latest Frontline
l
installer from FTE.
.http:/fte.com/sodera-soft
downloaded, double-click the installer and follow
the directions.
When the installation is complete pin the Wireless
Protocol Suite icon to your taskbar.
Guide
. Once
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Lecroy Frontline Sodera
Summary of Contents for Teledyne Lecroy Frontline Sodera
- Page 1 Free Hard Disk Space on C: drive: 20 GB 1. Front Panel Controls The Teledyne LeCroy Sodera™ front panel is shown below. The panel provides controls to power up and shut down the Frontline Sodera hardware, and it provides indicators to show the power, battery, and capture status.
- Page 2 Sodera Front Panel Controls and Indicators Power On/Off Button: Press and hold the button for at least 1/2 second, and then release the button to power on or power off the system. Pressing and holding the button for at least five seconds will initiate an emergency shut down sequence. Status Indicators: Colored LEDs show the status of power and capture.
-
Page 3: Charge Status
, HCI, and for connection to the computer hosting the Wireless Protocol Suite. Sodera Rear Panel Connectors +12 VDC: Connection to the Teledyne LeCroy supplied AC-to-DC power adapter, or a 12 Vdc auxiliary vehicle outlet system can be used. ™... - Page 4 Antenna Attachment Point Remove the Frontline Sodera™ hardware from the box and attach the antenna to the SMA connector on the front panel. The base of the antenna can be carefully rotated by 90 degrees, so that the antenna points upward.
- Page 5 ComProbe 802.11 Back Panel 5. Applying Power The Sodera hardware is powered by three methods: the Teledyne LeCroy supplied AC-to-DC adapter, an external DC power source that can include power from an automobile auxiliary power source and an optional internal battery.
- Page 6 Wireless Protocol Suite: Start Page Select Sodera to bring up the Wireless Protocol Suite window. The Wireless Protocol Suite Application Eicon icon will be placed in your taskbar at the bottom of your screen. Wireless Protocol Suite Application Eicon Frontline Technical Support:email frontline-techsupport@teledyne.com or psgsupport@teledyne.com...
- Page 7 7. Wireless Protocol Suite Wireless Protocol Suite 8. User Configuration Overview The Frontline product Sodera is capable of simultaneously capturing and demodulating RF channels and packet types defined in Bluetooth Specifications up to and including 5.1. The user is not required to specify the addresses of the devices to be captured or their roles (master or slave) during the connection lifetime.
- Page 8 The default settings are sufficient for capturing most Bluetooth Options connections. Details of the configuration settings are in the Wireless Protocol Suite Hardware and Software User Manual available to download from FTE.com or in Frontline Sodera on-line help. Frontline Technical Support:email frontline-techsupport@teledyne.com or psgsupport@teledyne.com...
- Page 9 9. Record Begin Capture When starting a capture session all of these actions occur:: The active status of all devices is cleared in the pane and the pane. Wireless Devices Wired Devices pane is emptied. Security pane retains all prior logged events. Event Log On the Toolbar, click on the...
-
Page 10: Capture Menu
Table 3 - Common Data Capture and Device Selection Scenarios (continued) Scenario Wireless/Wired Devices View Selection Analyzing all traffic involved in Inquiries In the Options menu select Analyze Inquiry Process Packets Once Devices are selected, analysis of the capture can begin. 11. - Page 11 Wireless Protocol Suite Application Icon 12. Saving Analyzed Data to Disk Note: is not available when viewing a previously recorded Capture file. Start Record Start Analyze/Stop Analyze available in Wireless Protocol Suite application window, allowing different analyses to be performed on previously recorded and saved captures.
-
Page 12: Service Notes
Voltage rating: 125V ac/dc This quick start guide provides sufficient information to begin the data capture. Detailed hardware and software information is contained in the Frontline Sodera User Manual. The manual is available on FTE.com. © 2020 Teledyne LeCroy, Inc. - Page 13 Publish date: 8/20/2020 Frontline Technical Support:email frontline-techsupport@teledyne.com or psgsupport@teledyne.com...
