Operator's
Manual
PP008 Passive Probe
PP008-1
PP008-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP008 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Lecroy PP008

Summary of Contents for Teledyne Lecroy PP008

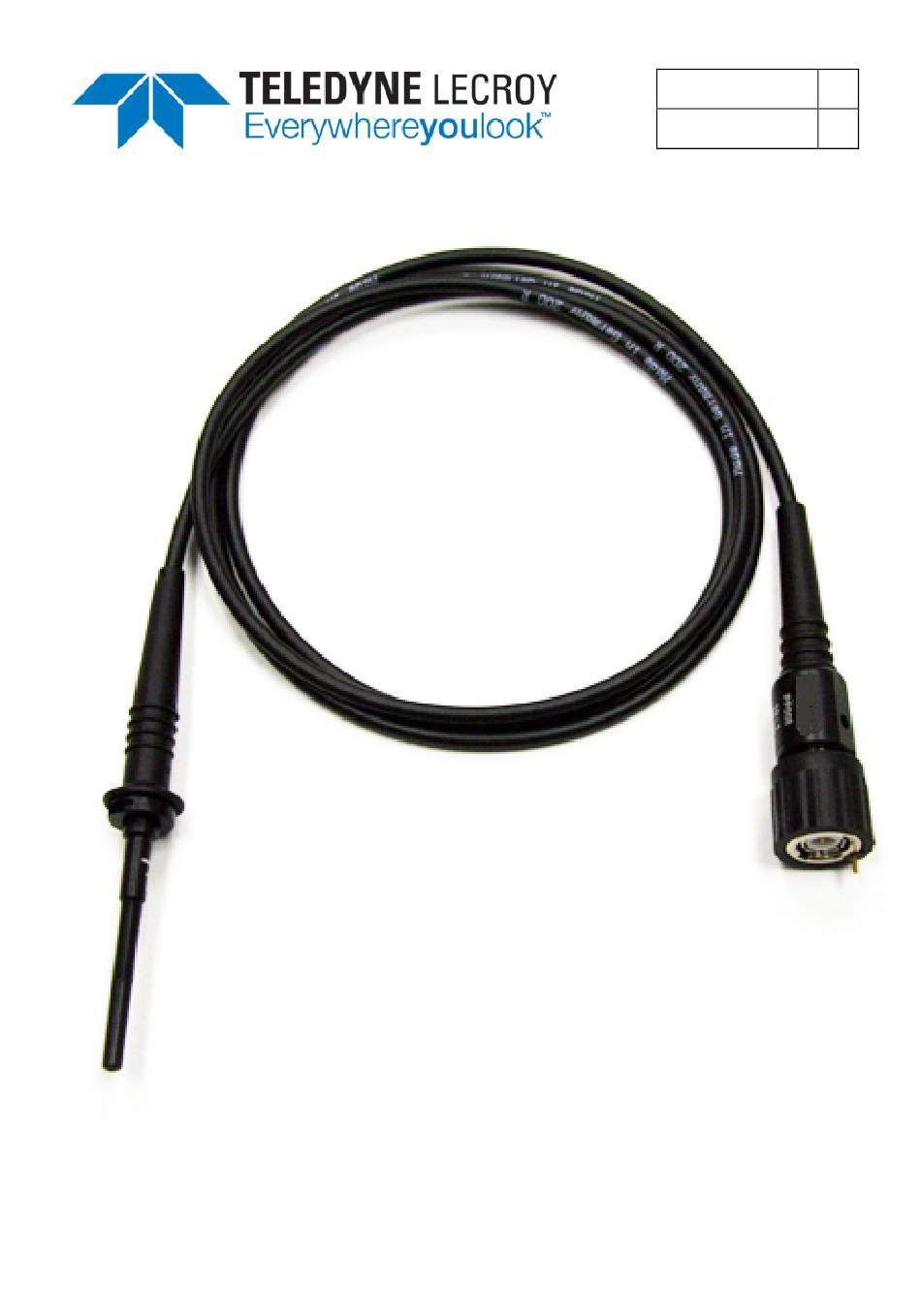

  • Page 1 PP008-1 PP008-2 Operator’s Manual PP008 Passive Probe...

  • Page 2: Warranty

    The customer will be responsible for the transportation and insurance charges for the return of products to the service facility. Teledyne LeCroy will return all products under warranty with transportation charges prepaid.

  • Page 3: Safety Instructions

    Operator’s Manual Safety Instructions Follow generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. Symbols These terms and symbols may appear on the probe body or in this manual to alert you to important safety considerations.
  • Page 4 PP008 Passive Probe Do not overload. To avoid electric shock or fire, do not apply any potential to the probe leads that exceeds the maximum rating of the probe. Comply with voltage derating curve. When measuring higher frequency signals, comply with the Voltage vs. Frequency Derating Curve.

  • Page 5: Specifications

    Operator’s Manual Introduction The PP008 is a miniature high impedance passive probe designed for use with ≤ 600 MHz Teledyne LeCroy oscilloscopes. Its high input resistance and low capacitance make it ideal for general purpose probing of signals with frequency content from DC through several hundred MHz.

  • Page 6: Operating Environment

    PP008 Passive Probe Operating Environment Temperature, Operating to 50 Temperature, Storage to 71 Altitude, Operating Up to 2000 m (6560 ft) Humidity, Operating 5% to 85% RH to 30° C 5% to 65% RH 30° C to 40° C 5% to 45% RH above 40° C...

  • Page 7: Connectivity Accessories

    The PK007 series of connectivity accessories is compatible with any Teledyne LeCroy 2.5 mm PP008 series probe. Accessories are shown with the Teledyne LeCroy part number followed by the description. PK701 Basic Adapter Kit replaces the common standard accessories with Qty. 2 each of 1, 2, 4, 5 and 14, plus Qty.

  • Page 8: Standard Accessories

    PP008 Passive Probe Standard Accessories PK007-001 PK007-002 PK007-003 Sprung Hook Standard Ground Lead Adjustment Tool (4, 5) (7, 8, 9, 10, 11) PK007-004 PK007-007 PK007-008 IC Cap 0.5 mm pitch (green) Rigid Tip, 0.5mm Insulating Cap PK007-009 IC Cap 0.65 mm pitch (blue) PK007-010 IC Cap 0.8 mm pitch (gray)

  • Page 9: Optional Accessories

    Operator’s Manual Optional Accessories NPUT DAPTERS AND LIPS (17) (18) (19) (20) PK007-017 PK007-018 PK007-022 PK007-023 Single Lead Adapter Dual Lead Adapter Adapter, 2 mm plug Adapter, 4 mm plug (21) (22) (23) PK007-019 PK007-020 PK007-021 Pico Hook™ Micro Clip, Long Micro Clip, Short (24) PK007-031...
  • Page 10 PP008 Passive Probe ROUND EADS (25) (26) PK007-024 PK007-025 Probe Tip Ground Lead w 0.8 mm Socket Probe Tip Ground Lead with Alligator Clip (28) (29) (30) PK007-026 PK007-027 PK007-028 Ground Lead with mini clip Ground Lead, 8 mm socket...

  • Page 11: Use And Maintenance

    Use of PCB Adapter The PCB adapter (Teledyne Lecroy P/N PK007-015) is intended to be designed into and permanently installed in circuit boards to provide a reliable, high frequency test point which eliminates the need to hand hold the probe.

  • Page 12: Probe Compensation

    PP008 Passive Probe Probe Compensation Proper compensation of the probe is required to assure good amplitude accuracy in the dynamic portions of the waveform being measured. LF compensation matches the probe to differences in oscilloscope input capacitance. The LF compensation should always be checked and adjusted as needed when first connecting a passive probe to the oscilloscope input.
  • Page 13 Operator’s Manual Tip Selection and Replacement The PP008 probe is supplied with two tip styles. The spring-loaded tip, which is installed when the probe is shipped, has a sharp point and an on-axis requirement. It provides reliable connection under a wide range of physical interconnect situtations.

  • Page 14: Environmental Compliance

    PP008 Passive Probe Certifications Teledyne LeCroy certifies compliance to the following standards as of the date of publication. See the EC Declaration of Conformity shipped with the product for current certifications. EC Declaration of Conformity - Safety The probe meets intent of EC Directive 2014/35/EU for Product Safety.
  • Page 16 928596-00 Rev A July, 2017...
  • Page 17 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Teledyne LeCroy PP008-1...
