Teledyne Lecroy ZS1000 User Manual

High-impedance active probes
Hide thumbs Also See for ZS1000:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ZS1000, ZS1500,
ZS2500, ZS4000
High-Impedance
Active Probes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZS1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Lecroy ZS1000

Summary of Contents for Teledyne Lecroy ZS1000

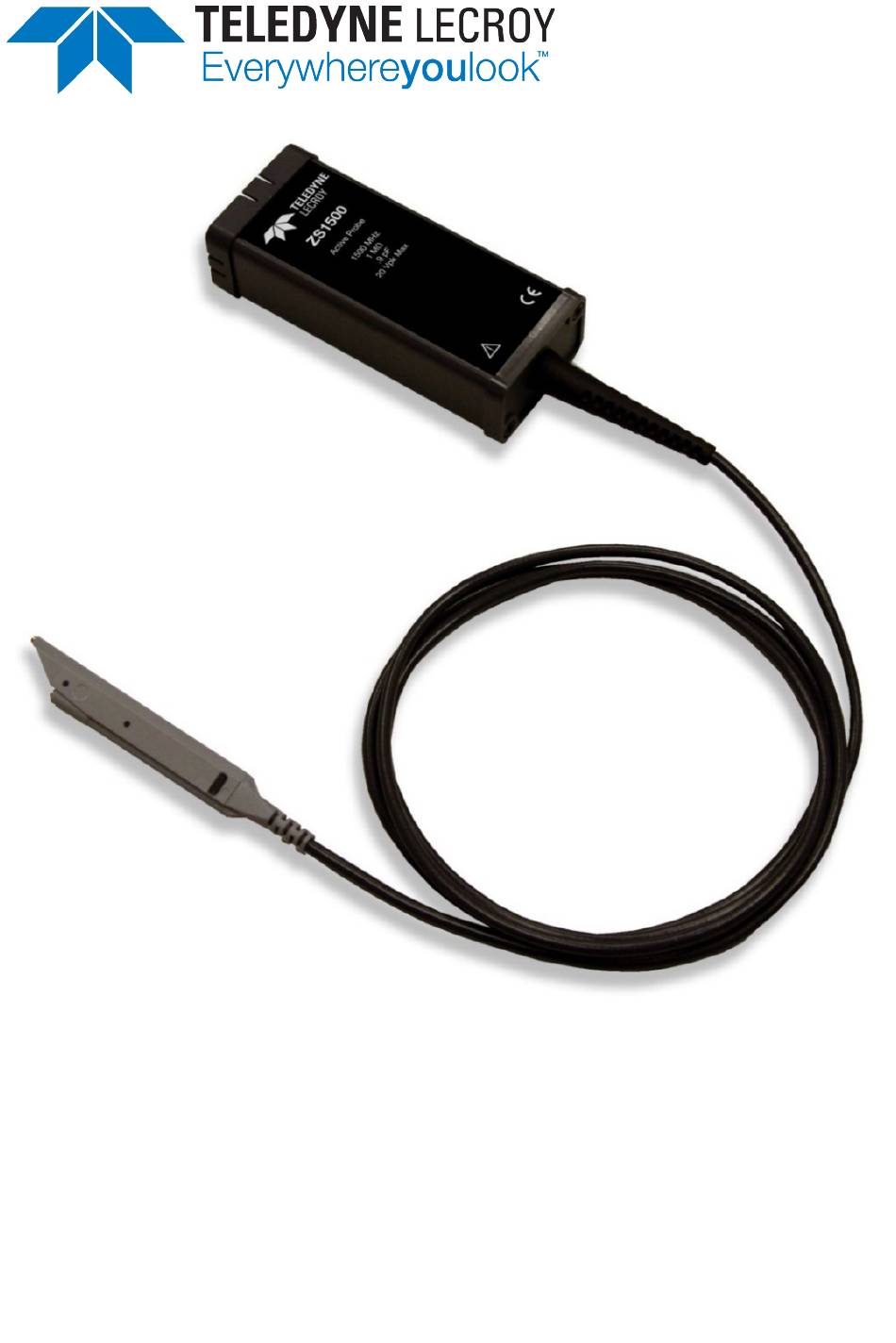

  • Page 1 User Manual ZS1000, ZS1500, ZS2500, ZS4000 High-Impedance Active Probes...
  • Page 2 Resale or unauthorized duplication of Teledyne LeCroy documentation materials is strictly prohibited. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Information in this publication supersedes all earlier versions.

  • Page 3: Table Of Contents

    User Manual Table of Contents Safety Instructions .................... 1 Introduction ......................2 Standard Accessories ..................3 ZS1000, ZS1500, ZS2500 Probe Accessories ........... 6 ZS4000 Probe Accessories ................7 Specifications ..................... 8 Probe Operation ....................12 Handling the Probe ..................12 Connecting the Probe to the Test Circuit ..........
  • Page 4 ZS Series High-Impedance, Active Probes...

  • Page 5: Safety Instructions

    User Manual Safety Instructions Observe generally accepted safety procedures in addition to the precautions listed here. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. Symbols These symbols appear on the probe body or in documentation to alert you to important safety considerations.

  • Page 6: Operating Environment

    : Up to 10,000 ft (3,048 m) Introduction The ZS Series (ZS1000, ZS1500, ZS2500 and ZS4000) are a small, high- impedance active probes designed to meet today’s demand for measurements on a variety of test points. With low input capacitance and high input resistance, circuit loading is minimized.

  • Page 7: Standard Accessories

    User Manual Standard Accessories ZS Series probes are shipped with the following standard accessories: ZS1000 ZS1500 Standard Accessory ZS2500 ZS4000 Description Tips Standard Straight Tip PK-ZS-001 PK-ZS-001 Rugged and designed for general probing. Fits in either probe socket. Right Angle Socket...
  • Page 8 ZS Series High-Impedance, Active Probes ZS1000 ZS1500 Standard Accessory ZS2500 ZS4000 Description Leads Straight Pin Lead – Short PK-ZS-003 PK-ZS-022 Has a socket on one end and a square pin on the Straight Pin Lead – Long PK-ZS-004 PK-ZS-023 other. Connects to the input or ground socket for general purpose probing.
  • Page 9 User Manual ZS1000 ZS1500 Standard Accessory ZS2500 ZS4000 Description Clips and Grabbers Micro-Grabbers (pair) 1 ea. PK-ZS-007R PK-ZS-007R Ideal for connecting to PK-ZS-007B PK-ZS-007B small IC legs or very tightly spaced pins. QFPIC Clips (set of 2) 1 set N/A...

  • Page 10: Zs1000, Zs1500, Zs2500 Probe Accessories

    ZS Series High-Impedance, Active Probes ZS1000, ZS1500, ZS2500 Probe Accessories...

  • Page 11: Zs4000 Probe Accessories

    User Manual ZS4000 Probe Accessories...

  • Page 12: Specifications

    ZS Series High-Impedance, Active Probes Specifications See the product page at teledynelecroy.com for complete probe specifications. Specifications ZS1000 ZS1500 ZS2500 ZS4000 Electrical Characteristics Probe Bandwidth 1 GHz 1.5 GHz 2.5 GHz 4 GHz Input Capacitance 0.9 pF 0.6 pF DC Input Resistance 1 MΩ...
  • Page 13 User Manual ZS1000, ZS1500 Impedance Chart 1000000 100000 10000 1000 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz 100MHz 1000MHz 10000MHz ZS1000, ZS1500 Equivalent Circuit...
  • Page 14 ZS Series High-Impedance, Active Probes ZS2500 Impedance Chart 1000000 100000 10000 1000 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz 100MHz 1000MHz 10000MHz ZS2500 Equivalent Circuit...
  • Page 15 User Manual ZS4000 Impedance Chart 10000000 1000000 100000 10000 1000 1000Hz 10kHz 100kHz 1MHz 10MHz 100MHz 1000MHz 10000MHz ZS4000 Equivalent Circuit 0.6pF...

  • Page 16: Probe Operation

    ZS Series High-Impedance, Active Probes Probe Operation ZS Series probes are designed for use with Teledyne LeCroy platforms equipped with the ProBus interface. When you attach the probe output connector to the oscilloscope’s input connector, the oscilloscope recognizes the probe, provides proper termination, and activates the probe control functions in the user interface.

  • Page 17: Operation With A Teledyne Lecroy Oscilloscope

    User Manual Operation with a Teledyne LeCroy Oscilloscope When the ZS probe is connected to any compatible Teledyne LeCroy oscilloscope, the displayed scale factor and measurement values are automatically adjusted. A Probe dialog appears behind the corresponding Channel dialog. The probe can be controlled through the oscilloscope front panel: The Volts/Div knob controls the oscilloscope’s scale factor to give full...
  • Page 18 ZS Series High-Impedance, Active Probes This effect is referred to as ground lead corruption. Because it is impossible to eliminate either the L or C from this circuit, the method to improve waveform fidelity is to raise the resonant frequency beyond the bandwidth of interest in the measurement.
  • Page 19 User Manual To determine how fast a waveform to be measured can be without causing ringing on a probe like this, divide the BW (ringing frequency) of the probe into 0.35: 0.35 0.35 ���� = 470 �������� �������� 750 ������������ ��������...
  • Page 20 ZS Series High-Impedance, Active Probes If, at a given frequency, the source impedance is large with respect to the input ���� impedance, a measurable reduction in the output signal amplitude may occur. ���� × ���� �������������������� ���� + ���� ������������ ����...

  • Page 21: Care And Maintenance

    The ZS probes utilize fine pitch surface mount devices. It is therefore impractical to attempt to repair in the field. Defective probes must be returned to a Teledyne LeCroy service facility for diagnosis and exchange. Defective probes under warranty are repaired or replaced. A probe that is not under warranty can be exchanged for a factory refurbished probe for a modest fee.

  • Page 22: Performance Verification

    ZS Series High-Impedance, Active Probes Performance Verification This procedure can be used to verify the warranted characteristics of a ZS Series High Impedance Active Probe. It tests: Output Zero Voltage • LF Attenuation Accuracy • Performance verification can be completed without removing the probe covers or exposing the user to hazardous voltages.
  • Page 23 User Manual Description Minimum Requirement Example Equipment Oscilloscope ProBus Interface; Teledyne LeCroy Windows-based WaveRunner 8000 or HDO 6000 Digital 4.5 digit Keysight 34401A Multimeter DC: 0.1% Accuracy Fluke 8842A-09 (DMM) with test AC: 0.1% Accuracy probe leads Function Sine Wave output...

  • Page 24: Test Setup And Preliminary Procedure

    ZS Series High-Impedance, Active Probes Test Setup and Preliminary Procedure 1. Connect the probe to the female end of the ProBus Extension Cable. Connect the male end of the ProBus Extension Cable to channel 1 of the oscilloscope. 2. Turn on the oscilloscope and allow at least 20 minutes warm-up time for the probe and oscilloscope before performing the Verification Procedure.

  • Page 25: Verification Procedure

    User Manual Verification Procedure A. Output Zero Voltage Output Zero Voltage Test Setup 1. Connect one end of a BNC cable to the female BNC connector on the probe end of the ProBus extender cable. Connect the precision 50 Ω terminator to the other end of the BNC cable.
  • Page 26 ZS Series High-Impedance, Active Probes B. LF Attenuation Accuracy LF Attenuation Accuracy Setup 1. Disconnect the BNC tee at the power supply from the dual banana plug adapter. Connect the BNC tee to the output of the function gen erator. (Use a 50 Ω...
  • Page 27 User Manual 6. Set the mode of the function generator to sine wave, the frequency to 70 Hz and the output amplitude to 5 Vrms ±10 mV as measured on the DMM. 7. Record the output voltage to 1 mV resolution as "Generator Output Voltage" in the Test Record.
  • Page 28 ZS Series High-Impedance, Active Probes 20. Remove the banana plug adapter from the DMM and connect the precision 50 Ω terminator to the DMM, making sure that the banana plug side marked "GROUND" is connected to the LOW or COMMON input of the DMM. 21.
  • Page 29 User Manual ZS_________ Probe Test Record Technician:_____________________________________________ Date:_____________________ Equipment Used Equipment Model Serial Number Cal Due Date Oscilloscope Digital Multimeter Function Generator Probe Lead Test Record UTPUT OLTAGE Step Description Results 1.0 mV Output Zero (Test limit ≤ ± LF A TTENUATION CCURACY Step...

  • Page 30: Certifications

    ZS Series High-Impedance, Active Probes Certifications Teledyne LeCroy certifies compliance to the following standards as of the time of publication. European Council The probe bears this mark to indicate it conforms to all applicable European Council standards. Please see the EC Declaration of Conformity document shipped with your product for current certifications.

  • Page 31: United Kingdom

    Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more in-formation about proper disposal of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. Restriction of Hazardous Substances (RoHS) The probe conforms to the 2011/65/EU RoHS2 Directive inclusive of any further amendments or modifications of said Directive.

  • Page 32: China

    ZS Series High-Impedance, Active Probes China Unless otherwise specified, all materials and processes are compliant with the latest requirements of China RoHS. The hazardous substances contained in the product are disclosed in accordance with the standards: SJ/T 11364-2014 Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products GB/T 26572-2011 Requirements on Concentration Limits for Certain Restricted Substances in Electrical and Electronic Products).

  • Page 33: Technical Support

    User Manual Technical Support Live Support Registered users can contact their local Teledyne LeCroy service center at the number listed on our website. You can also request Technical Support via the website at: teledynelecroy.com/support/techhelp Resources Teledyne LeCroy publishes a free Technical Library on its website. Manuals, tutorials, application notes, white papers, and videos are available to help you get the most out of your Teledyne LeCroy products.

  • Page 34: Returning A Product For Service

    Service for instructions on completing your import/export documents. Extended warranty, calibration and upgrade plans are available for purchase. Contact your Teledyne LeCroy sales representative to purchase a service plan. For a complete list of Teledyne LeCroy offices by country, including our sales and distribution partners, visit: teledynelecroy.com/support/contact.

  • Page 35: Warranty

    The customer will be responsible for the transportation and insurance charges for the return of products to the service facility. Teledyne LeCroy will return all products under warranty with transportation charges prepaid. This warranty replaces all other warranties, expressed or implied, including but not limited to any implied warranty of merchantability, fitness or adequacy for any particular purposes or use.
  • Page 36 936618-00 Rev A March, 2025...
