Frontline X240
Quick Start Guide
1
Introduction
Use this document for quick installation and setup.
TM

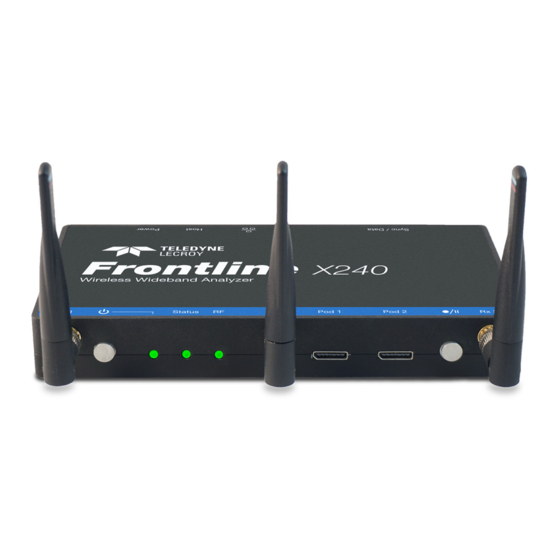

Frontline® X240
is capable of capturing and demodulating all RF channels and packet
types defined in all released Bluetooth specifications and beyond. The user is not required to
specify the addresses of the devices to be captured or their roles (master or slave) during
the connection lifetime. Prior to capturing the data the user does not need to enter any
information (PIN, OOB, long term key, link key) used to encrypt or decrypt data. X240
provides live capture of all 79 Classic Bluetooth channels or 40 Bluetooth low energy
channels storing data for both live and post-capture analysis. This quick start guide provides
sufficient information to begin data capture. Detailed hardware and software information is
contained in the Wireless Protocol Suite Hardware and Software User Manual. The manual
is available on FTE.com.
2
Components
Inspect the received shipping container for any damage. Unpack the container and account
for each of the system components listed on the accompanying packing list. Visually inspect
each component for absence of damage. In the event of damage, notify Teledyne LeCroy.
Retain all shipping materials for shipper's inspection. The X240
contain any user serviceable items. Any repairs and maintenance must be performed by a
service technician that has been trained and approved by Teledyne LeCroy. Before any
service is performed on X240
disconnecting any USB cables. The user should use the AC power supply and car adapter
included with the X240. USB Type C power must be provided via PD.
The analyzer package includes the following components in addition to the X240:
Protocol Analyzer
TM
TM
Frontline X240
TM
, all power sources must be removed. This includes
Protocol Analyzer
TM
hardware does not
TM
Advertisement
Table of Contents
Related Manuals for Teledyne Lecroy Frontline X240
Summary of Contents for Teledyne Lecroy Frontline X240
- Page 1 Inspect the received shipping container for any damage. Unpack the container and account for each of the system components listed on the accompanying packing list. Visually inspect each component for absence of damage. In the event of damage, notify Teledyne LeCroy. Retain all shipping materials for shipper's inspection. The X240 hardware does not contain any user serviceable items.
-
Page 2: Computer System Requirements
Front Panel Controls and Connectors Front panel controls: Frontline X240 front panel is shown below. The panel provides controls to power up and shut down the Frontline X240 hardware, and it provides indicators to show the power and capture status. - Page 3 Power On/Off Button: Press and release the button to power on or power off the system. Status Indicators: Colored LEDs show the status of power and capture. Table 1: X240 Front Panel Status Indicators Indicator Color State Status Indicated Power None Unit is powered off Purple...
- Page 4 Ethernet Host Power Frontline X240 Rear Panel Connectors Host: USB C 2.0/3.0 port for connecting X240 to the host computer where the Wireless Protocol Suite resides. This connector provides host computer command, control, and data transfer. If the USB cable is connected to a computer with a USB C 3.0 with power delivery or higher then the X240 can be powered through this port as well and will not need a USB cable connected to the Power connector on the X240.
-
Page 5: Attach Antennas
Frontline X240 Antenna Attachment Points on Front Panel Remove the Frontline X240 hardware from the box and attach the three ANTENNAS to the SMA connectors on the front panel. The base of the antennas can be carefully rotated by 90 degrees, so that the antenna points upward. - Page 6 Data Capture Method Connect a USB C cable to the USB connector labeled Host on the back panel of the X240 and the other end of the cable to the Host PC. When the X240 Analyzer is connected to the Host PC running the Wireless Protocol Suite the Start Page window will display the X240 option.
- Page 7 Datasource Window Datasource window with Display Panes User Configuration Overview X240 uses a two-stage capture analysis process, record and analyze. In the record stage clicking the Start Record button will activate the datasource to begin capturing data from all Bluetooth devices in range. In the analyze stage the user selects one or more wireless devices for analysis, clicks the Start Analyze button, and the X240 will begin sending captured data that is to/from those devices to the Wireless Protocol Suite.
- Page 8 Record: Begin Capture When starting a capture session: • the active status of all devices is cleared in the Wireless Devices panes, • the Security pane is emptied, and • the Event Log pane retains all prior logged events. On the Datasource Toolbar, click on the Start Record button or select Start Record from the Capture menu option.
-
Page 9: Start Analysis
In the Wireless Devices pane, place a check in the row of each active device to be analyzed. Active devices can also be selected while the recording is in progress. Note: Data filtered by the device selection is an "OR" function, not an "AND" function. When selecting device1, device2, device3,…... - Page 10 Wireless Protocol Suite: Main Window The Main Window icon will be shown in your taskbar, Wireless Protocol Suite: Application Icon Saving Analyzed Data to Disk Note: Start Record is not available when viewing a previously recorded Capture file. Start Analyze/Stop Analyze is available in Wireless Protocol Suite Main window, allowing different analyses to be performed on previously recorded and saved captures.
-
Page 11: License Manager
Files are placed in My Capture Files folder by default and have a .cfa extension. Watch the Status Bar on the Wireless Protocol Suite Main window to monitor how full the file is. Click on the Stop Record button to stop recording. Click the Stop Analyze button to stop analyzing. -
Page 12: Environmental Conditions
All other trademarks are property of their respective companies. Changes Product specifications are subject to change without notice. Teledyne LeCroy reserves the right to revise the information in this document without notice or penalty. © 2019 Teledyne LeCroy, Inc. All rights reserved.
