Teledyne Lecroy frontline SODERA le Quick Start Manual

Bluetooth low energy protocol analyzer
Hide thumbs Also See for frontline SODERA le:
Table of Contents

Advertisement

Quick Links

Download this manual

Computer System Requirements

Supported Systems
Operating System: Windows 7/8/10
l
USB:USB 2.0 and later
l

Minimum Requirements

Processor: Core i5 at 2.7 GHz
l
RAM: 4 GB
l
Free Hard Disk Space on C: drive: 20 GB
l

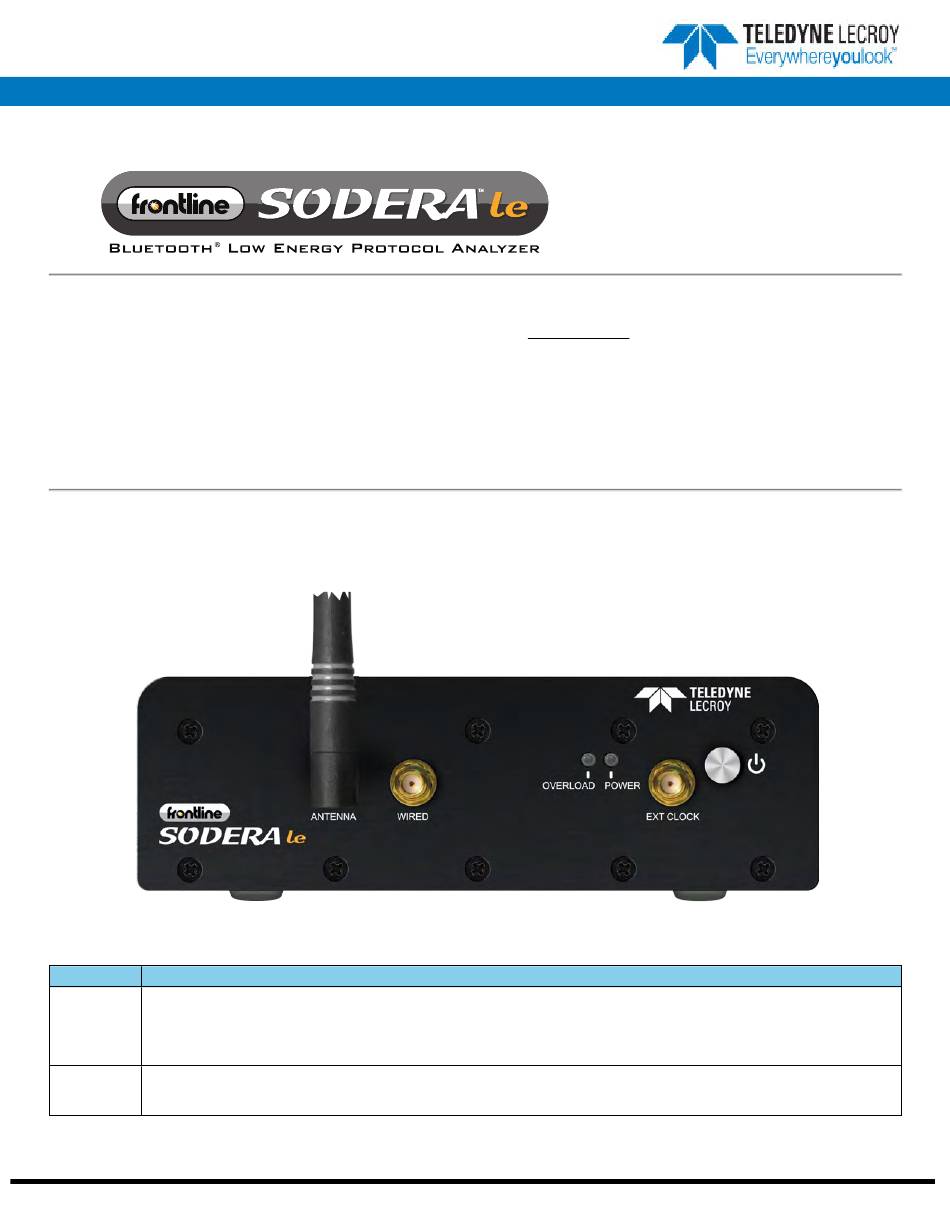

1. Sodera LE Front Panel

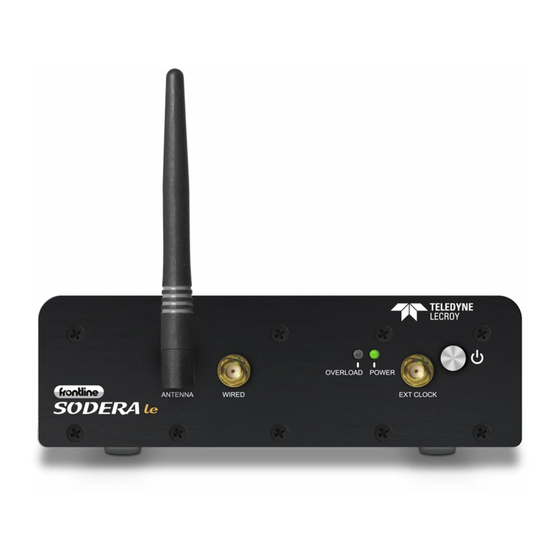

Frontline Sodera LE front panel is shown below. The panel provides controls to power up and shut down the Frontline Sodera LE
hardware, and it provides indicators to show the power and capture status.
Control
ANTENNA
Connect to the front panel antenna SMA connector. Used for wideband wireless capture of Bluetooth low energy
transmissions.
Maximum useable signal level: -10 dBm.
WIRED
Low sensitivity RF input suitable for conductive testing that utilizes a wired connection from the devices under test
(DUTs). Conductive testing allows for isolation of the DUTs from environmental interference.
Frontline Technical Support: Phone +1-434-984-4500 or email tech_support@fte.com
Install Software
l

Sodera LE Front Panel Controls and Indicators

Table 1 - Sodera LE Front Panel Controls
Description
Quick Start
Guide
From Download: Download the latest ComProbe installer
from FTE.com. Once downloaded, double-click the
installer and follow the directions.
http://www.fte.com/soderale-soft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the frontline SODERA le and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne Lecroy frontline SODERA le

Summary of Contents for Teledyne Lecroy frontline SODERA le

  • Page 1 Free Hard Disk Space on C: drive: 20 GB 1. Sodera LE Front Panel Frontline Sodera LE front panel is shown below. The panel provides controls to power up and shut down the Frontline Sodera LE hardware, and it provides indicators to show the power and capture status.
  • Page 2 Table 1 - Sodera LE Front Panel Controls (continued) Control Description Maximum useable signal level: 27 dBm. OVERLOAD RF overload indicator. If the RF signal level on either the ANTENNA or WIRED connector is too high, then this LED will light red. RF overload occurs when the signal level is greater than 27 dBm. Should an RF overload occur with the ANTENNA in use, try switching to the less sensitive WIRED connecter to relieve the problem.
  • Page 3 Note: All other connectors are not used. 3. Attach Antenna Antenna Attachment Point Remove the Frontline Sodera LE hardware from the box and attach the antenna to the SMA connector on the front panel. ANTENNA 4. Applying Power The Sodera LE hardware is powered by an external 9 VDC power source using an AC-to-DC power adapter.
  • Page 4 5. Sodera LE Data Capture Method When the Frontline Sodera LE is connected to the Host PC running Frontline software, the window will Select Data Capture Method... display the Sodera LE options.
  • Page 5 6. Control Window Sodera LE Control Window 7. Sodera Window - Datasource Sodera LE Datasource Window 8. Sodera LE: Record—Begin Capture When starting a capture session the active status of all devices is cleared in the panes , Wireless Devices pane is emptied, and Security pane retains all prior logged events.
  • Page 6 pane will show all encrypted Bluetooth links. Security pane will begin to populate with information, warnings, and error messages. Event Log will show a running total of captured packets. Status Bar Note: Starting a new capture session will clear all unsaved data from both the Sodera LE hardware and the Frontline software.
  • Page 7 10. Sodera LE: Starting Analysis The analysis begins by clicking on the button, or selecting from the menu. Analyze Analyze Capture Alternatively, click on the button In the window. The Sodera LE hardware will begin Start Analyze Control sending captured packets involving the selected device to the Frontline software. Once analysis has begun, you cannot change the device selection.
  • Page 8 This quick start guide provides sufficient information to begin the data capture. Detailed hardware and software information is contained in the Sodera LE User Manual. The manual is available on FTE.com. © 2017 Teledyne LeCroy, Inc. The Bluetooth SIG owns the Bluetooth word mark and logos, and use of such marks is under license.
