Table of Contents

1
Introduction
Use this document for quick installation and setup.

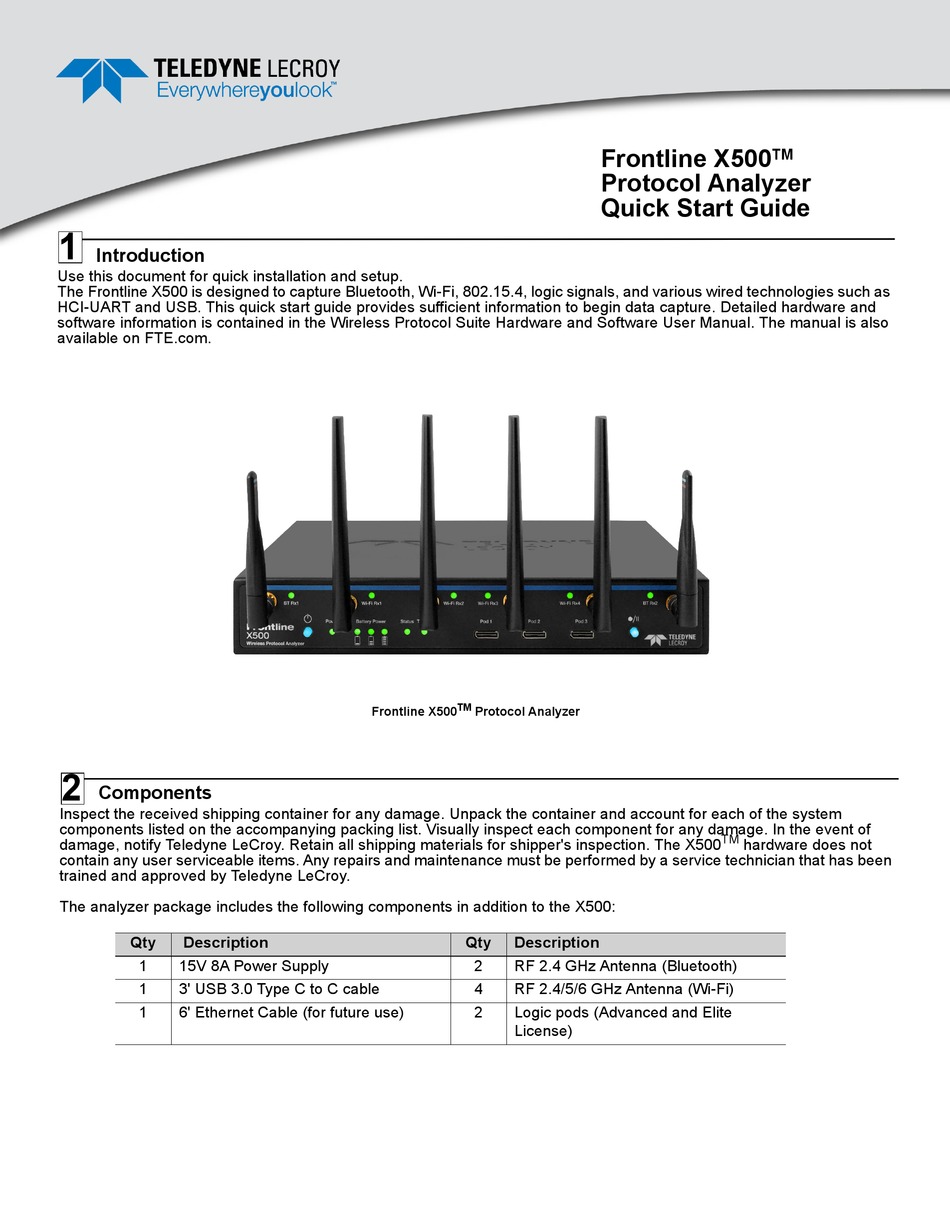

The Frontline X500 is designed to capture Bluetooth, Wi-Fi, 802.15.4, logic signals, and various wired technologies such as
HCI-UART and USB. This quick start guide provides sufficient information to begin data capture. Detailed hardware and
software information is contained in the Wireless Protocol Suite Hardware and Software User Manual. The manual is also
available on FTE.com.
2
Components
Inspect the received shipping container for any damage. Unpack the container and account for each of the system
components listed on the accompanying packing list. Visually inspect each component for any damage. In the event of
damage, notify Teledyne LeCroy. Retain all shipping materials for shipper's inspection. The X500
contain any user serviceable items. Any repairs and maintenance must be performed by a service technician that has been
trained and approved by Teledyne LeCroy.
The analyzer package includes the following components in addition to the X500:
Qty
Description
1
15V 8A Power Supply
1
3' USB 3.0 Type C to C cable
1
6' Ethernet Cable (for future use)
TM

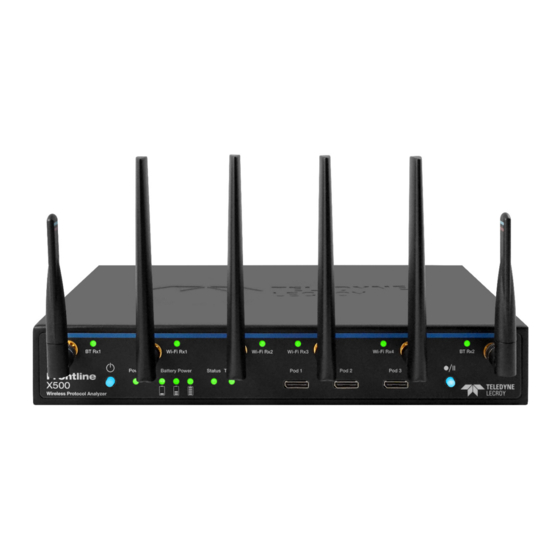

Frontline X500
Protocol Analyzer
Qty
Description
2
RF 2.4 GHz Antenna (Bluetooth)
4
RF 2.4/5/6 GHz Antenna (Wi-Fi)
2
Logic pods (Advanced and Elite
License)
Frontline X500
TM
Protocol Analyzer 
Quick Start Guide
TM
hardware does not

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everywhereyoulook Frontline X500 and is the answer not in the manual?

Questions and answers

Related Manuals for Teledyne Lecroy Everywhereyoulook Frontline X500

Summary of Contents for Teledyne Lecroy Everywhereyoulook Frontline X500

  • Page 1 Inspect the received shipping container for any damage. Unpack the container and account for each of the system components listed on the accompanying packing list. Visually inspect each component for any damage. In the event of damage, notify Teledyne LeCroy. Retain all shipping materials for shipper's inspection. The X500 hardware does not contain any user serviceable items.

  • Page 2: Computer System Requirements

    Computer System Requirements Supported Systems • Operating System: Windows 10 Install Software • USB: USB 2.0 and later From Download: Download the latest Wireless Protocol Minimum Requirements Suite installer from FTE.com. http://fte.com/x500-soft. Once downloaded, double-click the installer and follow • Processor: Core i5 at 2.7 GHz the directions.
  • Page 3 3. Power-up Hardware Power Button: The Power button illuminates when the unit is connected to a power source. Press and release the button to power on or power off the system. Status Indicators: Colored LEDs show the status of power, capture, and RF Status. Table 1: X500 Front Panel Status Indicators Indicator Color...
  • Page 4 Configuration Start the Wireless Protocol Suite software. The Start Page window displays the X500 option. Point to “X500” to see the hardware image. Click X500 under “Start”. Wireless Protocol Suite - Start Page When the Wireless Protocol Suite window pops up, you will see the following display with the Analyzer Toolbar that controls hardware record and configuration options.
  • Page 5 Begin Capture Start Record On the Wireless Protocol Suite's Toolbar, click the Start Record button or select Start Record from the Capture menu option. When the Start Record button changes to Stop Record, the X500 hardware is capturing data from all active Bluetooth devices within range and recording data on the PC.
  • Page 6 Saving Analyzed Data to Disk Stop Record Click the Stop Record button to stop recording. Stop Analyze Click the Stop Analyze button to stop analyzing. Save File Click the Save icon to save the file to the selected location. Saving Analyzed Data To clear captured data, click the Clear icon.

  • Page 7: Environmental Conditions

    Input Voltage: 15 V • Max Power: 90 W Teledyne LeCroy Customer Support Online Download Periodically check the Teledyne LeCroy Protocol Solutions Group web site for software updates and other support related to this product. Web: http://www.fte.com/products/default.aspx Sales: Frontline_OnlineSales@Teledyne.com Support: Frontline_Techsupport@Teledyne.com...
