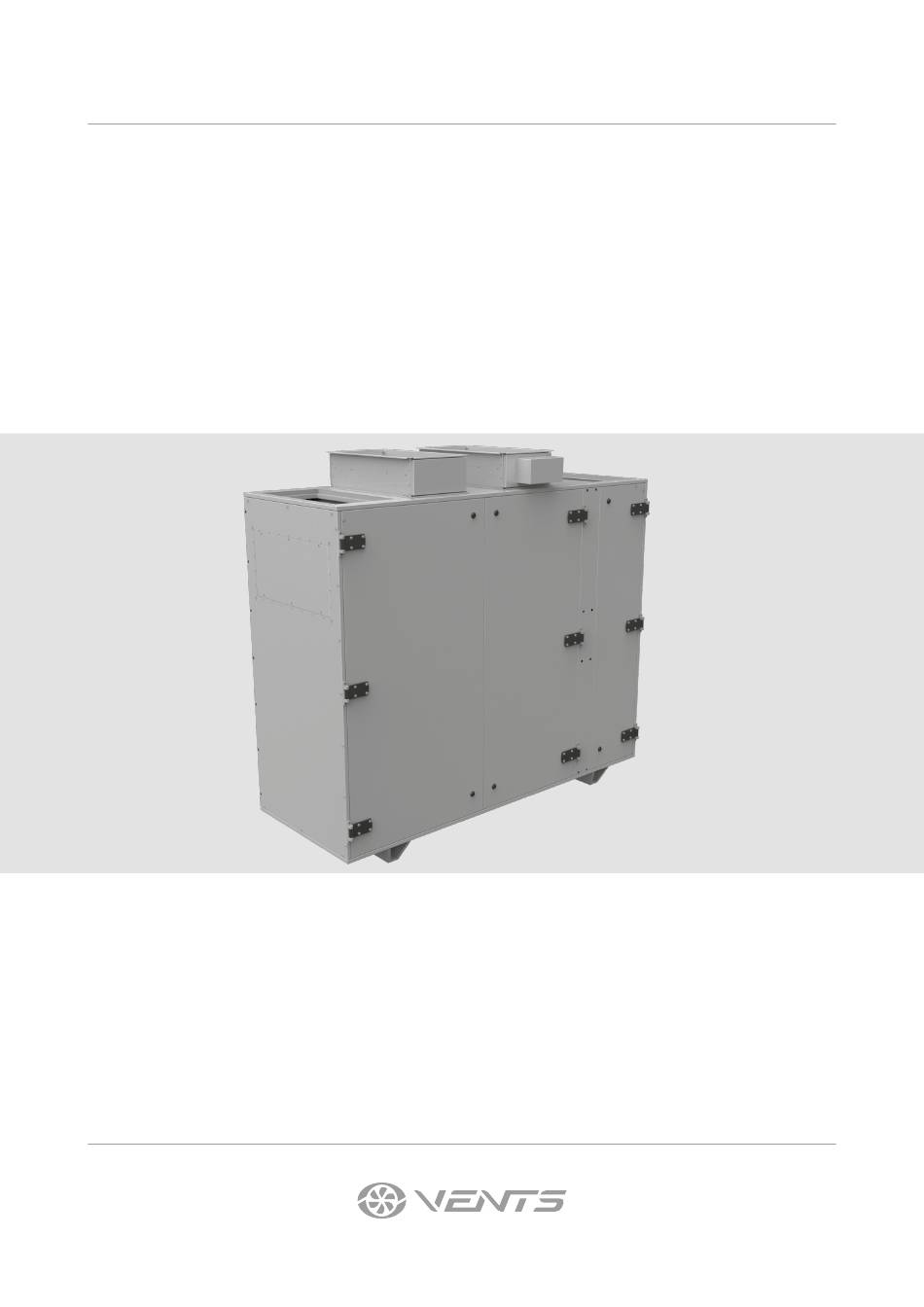

- Page 1 USER’S MANUAL Airvents CFV Air handling unit...
-
Page 2: Table Of Contents
Airvents CFV CONTENTS Safety requirements ..................................3 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit ........................................6 Installation and set-up................................8 Connection to power mains ..............................11 Technical maintenance ................................11 Storage and transportation regulations .......................... 13 Manufacturer’s warranty ................................ -
Page 3: Safety Requirements
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. -
Page 4: Purpose
Airvents CFV PURPOSE The air handling unit with heat recovery is designed for integration into central mechanical ventilation systems. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs). -
Page 5: Technical Data
TECHNICAL DATA The unit is designed for indoor or sheltered use. Outdoor unsheltered mounting is allowed provided an extra cover and weather hoods are installed on the air ducts (not included in the delivery set). The frost protection for the water drainage and connected pipelines must be provided during sub-zero ambient temperatures (if the unit is equipped with air cooler). -
Page 6: Unit
Airvents CFV ød Model AV02 CFV 1500(2500) 1822 1550 1950 AV03 CFV 3500 2070 1800 2200 AV07 CFV 5000(6000) 2070 1800 2330 1390 The full technical data list is stated in the supplied technical data sheet. UNIT UNIT DESIGN 1: drain pipe; 2: water heater (only for the units with water heater); 3: electric heater (only for the units with electric heater); 4: supply fan ;... - Page 7 The unit design provides change of the air duct positioning. For this purpose the side walls are plugged. To change positioning of the air ducts use the plugs from the side walls for the front panel. Intake air Exhaust air Extract air Supply air www.ventilation-system.com...
-
Page 8: Installation And Set-Up
Airvents CFV INSTALLATION AND SET-UP ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT. DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF. IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE. Condensate drainage The components of the unit that have a condensate drain must be equipped with a trap to ensure that the casing is watertight and that water can be drained out uninterrupted through the drainage spigot on both the suction and discharge sides. - Page 9 Fill up the U-traps with water before using the system. The trap must be filled with water at all times as long as the system is operating. The condensate drainage system should not be directly connected to the common sewage system to avoid polluting the air with bacteria and odors.
- Page 10 Airvents CFV For the models with a water heater For the models without water heater Casing dimensions A [mm] AV02 CFV AV03 CFV 1000 AV07 CFV The delivery set includes removable levelling feet to adjust horizontal levelling of the unit and provide required clearance from the floor to enable correct mounting of the condensed water drainage.
-
Page 11: Connection To Power Mains
CONNECTION TO POWER MAINS Connection to power mains must be conducted in compliance with the automation user’s manual. TECHNICAL MAINTENANCE OPEN THE UNIT FOR INSPECTION AND SERVICE NOT LESS THAN 2 MINUTES AFTER COMPLETE DE-ENERGIZING OF THE UNIT. THE FANS ROTATION MAY BE STILL PRESENT. IN CASE OF ANY ABNORMAL NOISE, SMELL AND COMPONENT DEFORMATION IMMEDIATELY CUT OFF POWER SUPPLY TO THE UNIT AND CONTACT A SERVICE PROVIDER OR THE UNIT SELLER. - Page 12 Airvents CFV To access the heat exchanger remove the holder 13 (see page 7). Loosen the screws (1) on the retaining clamps (2) using a hexagon wrench. Pull the heat exchanger out. www.ventilation-system.com...
-
Page 13: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5...+40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 14: Manufacturer's Warranty
Airvents CFV MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 V192-5EN-03...
