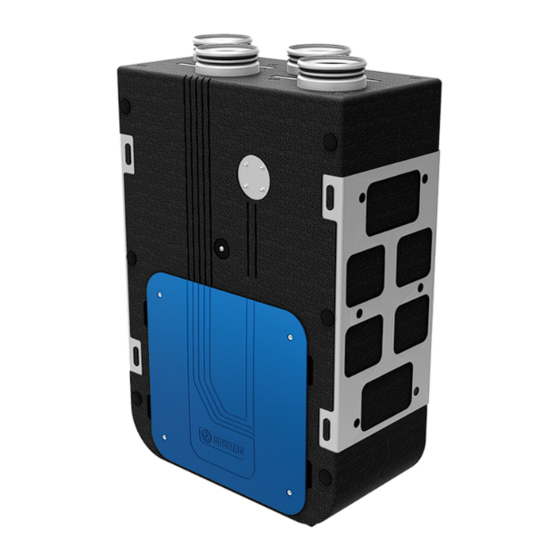

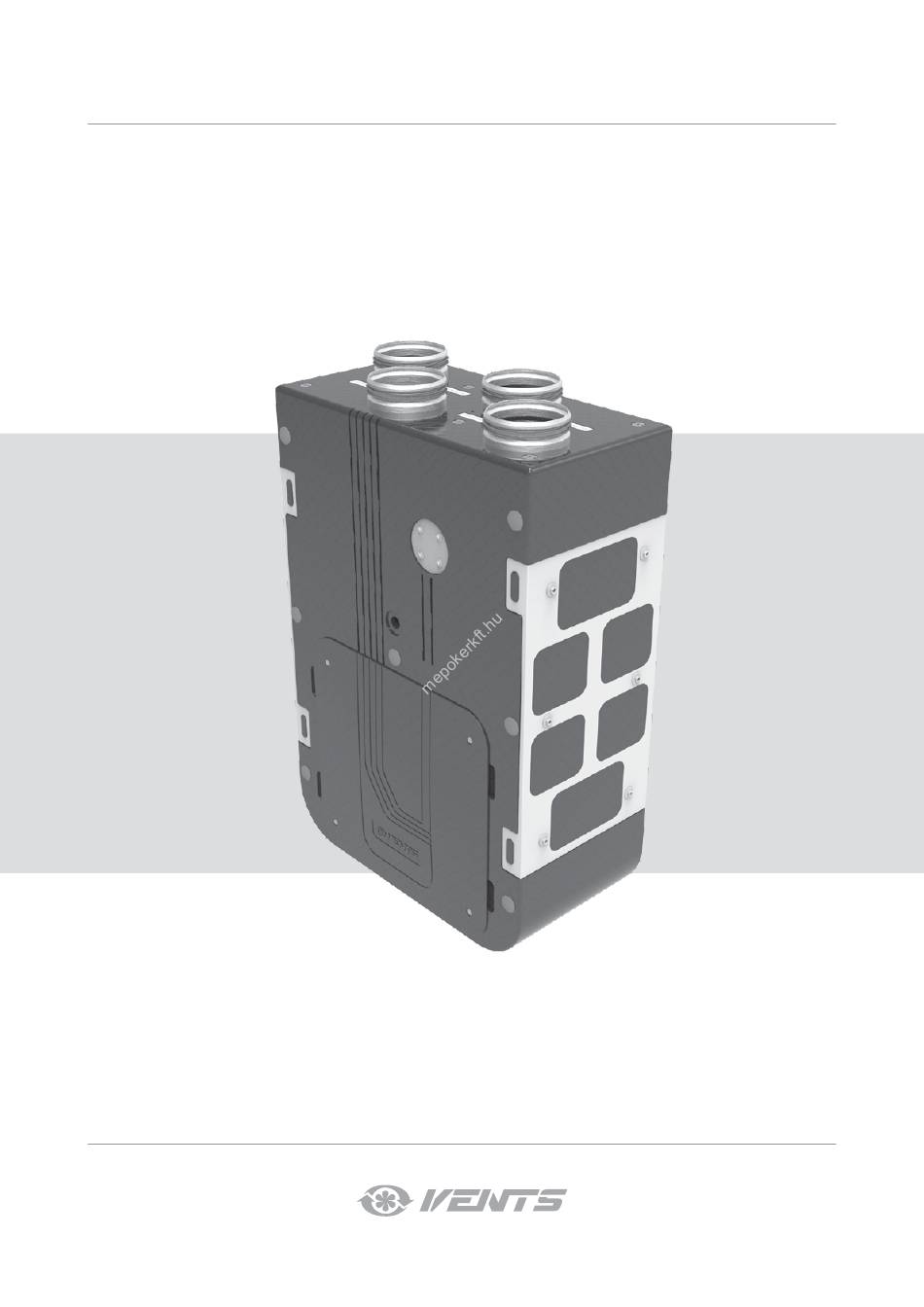

- Page 1 USER’S MANUAL VUT 270 V5B EC A14 VUE 270 V5B EC A14 Heat and energy recovery air handling unit...
-
Page 2: Table Of Contents
VUT/VUE 270 V5B EC A14 CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................4 Unit design and operating principle ..........................6 Installation and set-up................................8 Connection to power mains ..............................10 Unit control ....................................... - Page 3 • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable. Do not put any foreign objects on the power cable.
-
Page 4: Purpose
VUT/VUE 270 V5B EC A14 PURPOSE Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises. The unit is a component part and is not designed for stand-alone operation. The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of supply air. -
Page 5: Technical Data
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. TECHNICAL DATA MODEL VUT 270 V5B EC A14 VUE 270 V5B EC A14 Unit voltage [V/50 (60) Hz] 1 ~ 220-240 Max. - Page 6 VUT/VUE 270 V5B EC A14 DESIGN AND OPERATING PRINCIPLE The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
- Page 7 UNIT OPERATION MODES Heat recovery Extract air Intake air Warm stale extract air from the room flows into the unit, where it is Exhaust air Supply air filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
-
Page 8: Installation And Set-Up
VUT/VUE 270 V5B EC A14 INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. HV2 HUMIDITY SENSOR INSTALLATION AND CONNECTION The HV2 humidity sensor is not included in the delivery set and can be ordered separately. The humidity sensor must be installed prior to unit mounting. Install the humidity sensor through the extract spigot into the mount on the extract air duct panel and connect the humidity sensor plug to the respective socket on the control unit, refer to the External wiring diagram. - Page 9 The plate opposite to the service side must be fixed with screws (included in the delivery set) before installation. Unit floor mounting Unit wall mounting Install the unit on the pre-mounted floor supports, minimum Fasteners (dowels, self-tapping screws) for wall mounting 150 mm height, to ensure sufficient access for the drain pipe are not included in the delivery set and should be ordered connection to the U-trap and for condensate drain system...
- Page 10 CONDENSATE DRAINAGE Condensate drainage is required for the VUT 270 V5B EC A14 unit series. The VUE 270 V5B EC A14 units are equipped with a heat exchanger with an enthalpy membrane at the core. No condensate is formed in heat exchangers of this type, therefore, no condensate drainage is required.
-
Page 11: Connection To Power Mains
CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. - Page 12 VUT/VUE 270 V5B EC A14 External control units wiring diagram: PK re alarm panel (remove the jumper while connecting the contact) Control Electric actuators panel Humidity of the external air dampers sensor - Tx Rx + 220-240 V/50 (60) Hz External device supply exhaust...
-
Page 13: Unit Control
UNIT CONTROL OPERATION USING SOFTWARE To work with the pre-installed software, connect the unit to a laptop or to a PC via a USB cable with a Type A and Type В connectors. The USB cable is not included in the delivery set. USB type A micro USB type B... -
Page 14: Technical Maintenance
VUT/VUE 270 V5B EC A14 TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. It includes general cleaning of the unit and the following operations: 2. -
Page 15: Storage And Transportation Regulations
POSSIBLE REASONS AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, No power supply. otherwise troubleshoot the connection error. Turn the unit off. Troubleshoot the motor jam and the The motor is jammed, the impeller blades are soiled. The fan(s) does not start impeller clogging. -
Page 16: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations. - Page 17 www.ventilation-system.com...
- Page 18 VUT/VUE 270 V5B EC A14 www.ventilation-system.com...
-
Page 19: Certificate Of Acceptance
VUT/VUE 270 V5B EC A14 CERTIFICATE OF ACCEPTANCE Unit Type Heat and energy recovery air handling unit Model VUT/VUE 270 V5B EC A14 Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 V170-1EN-01...
