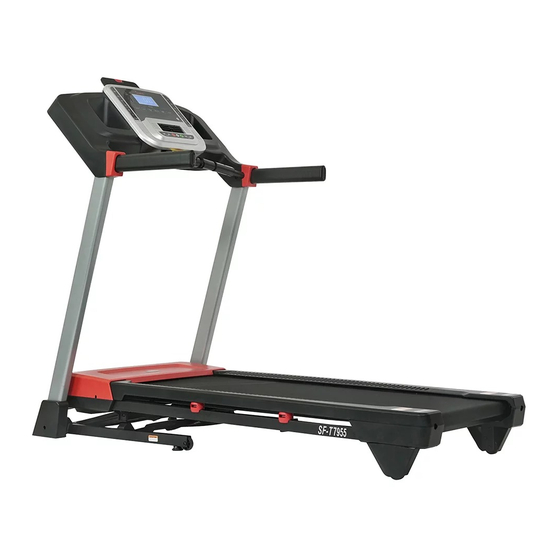

EVO-FIT TREADMILL

SF-T7955

USER MANUAL

IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.

Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE

CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Need help?

Do you have a question about the SF-T7955 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny SF-T7955

Page 1 EVO-FIT TREADMILL SF-T7955 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Page 2 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
Page 3 EXPLODED DIAGRAM...
Page 4 PARTS LIST Description Spec. Qty. Description Spec. Qty. Base Frame 39 Rear Roller Left Upright Tube 40 Cylinder Right Upright Tube 41 Hook 180*25.4*T2.5 Incline Frame 42 Spring Φ34*25*Φ2 Main Frame 43 Upper Motor Cover 714*88*353 Console Frame 44 Lower Motor Cover 714*80*353 Screw M8*25L...
Page 5 Description Spec. Qty. Description Spec. Qty. Signal Connecting 77 Rubber Cushion Ф25*Ф8*7 Wire 1b Power Connecting 78 Running Belt 2940*510*1.6T 100+200mm Wire 1 Power Connecting 79 Belt PJ522 200mm Wire 2 Power Connecting 80 Cable Tie 3*100, BK 100mm Wire 3 Power Connecting 81 Cable Tie 4*200, BK...
Page 6 HARDWARE PACKAGE #12 M8*70L*S20L 8PCS #34 φ 8* φ 16*2T 12PCS #13 M4*12L 2PCS #37 S6 1PC #25 M8*16L 4PCS Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: We recommend having two people to do the assembly. Open the carton and remove contents.
Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: #12 M8*70L*S20L 8PCS #34 φ 8* φ 16*2T 8PCS There are 2 joints for Signal #37 S6 1PC Connecting Wire 1 (No.
Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: #13 M4*12L 2PCS Left & Right Cover #37 S6 1PC Handlebar Covers (No. 60 &...
Page 10 LUBRICATING THE TREADMILL *IMPORTANT NOTE: This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. 115) and Running Belt (No. 78) is essential as the friction affects the life span and operation of the treadmill.
Page 11 MAINTENANCE & CARE General cleaning will help prolong the life and improve the performance of your treadmill. Keep the treadmill clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides both sides of the Running Belt (No. 78) will prevent dust from accumulating underneath.
Page 12 FOLDING INSTRUCTIONS FOLDING Restore the incline to flat position (Incline Level 0). Then turn off the power. Place your hand at position “A” and lift up the Main Frame (No. 5) to push top of the running board forward until the Cylinder (No. 40) locks into the tube.
Page 13 HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “M”...
Page 14 IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 15 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user.
Page 15 EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult with your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals.
Page 16 THE DISPLAY CONSOLE DISPLAY FUNCTION 1. Speed display window showing current speed value. 2. Incline / Heart rate display window shows the incline value and heart rate. 3. Time display window shows the time count-down and count-up when in running state. 4.
Page 17 KEY FUNCTION 1. START： Press to start up the treadmill in the stop state. The default speed displayed is 1.0 MPH. 2. PAUSE / STOP: When the treadmill is running, press PAUSE / STOP once to pause the treadmill. When the treadmill is paused, press PAUSE / STOP to stop the treadmill, and all values will be cleared.
Page 18 DATA DISPLAY RANGE AND SETTING RANGE OF VARIOUS PARAMETERS: DISPLAY DEFAULT MODE SETTING RANGE VALUE VALUE RANGE SPEED (MPH) 1.0 – 11.5 1.0 - 11.5 ┈ TIME (MIN) 0:00 – 99:59 30:00 30:00 5:00 - 99:00 0 - 99.9 1.0 - 99.9 DISTANCE (MI) ┈...
Page 19 8. At any time, if you need to stop the treadmill immediately, remove the Safety Key (No. 89). PROGRAM PARAMETERS (speed is in MPH) Setup time / 10 = running time for each section SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
Page 20 6. Each program is divided into 10 sections; operating time for each section will be 1/10 of the set time. 7. When the set time goes to zero, the treadmill will slow to a stop. All values go to zero and treadmill is now in standby mode.
Page 21 (5V---2A) BLUETOOTH FUNCTION When the treadmill is in standby mode, the peripheral device is connected to the bluetooth device (Bluetooth model number: SUNNY). After successful operation, user can play music from their mobile device. ERROR MESSAGE Please check whether the safety key is well connected and/or Safety key drop off.
