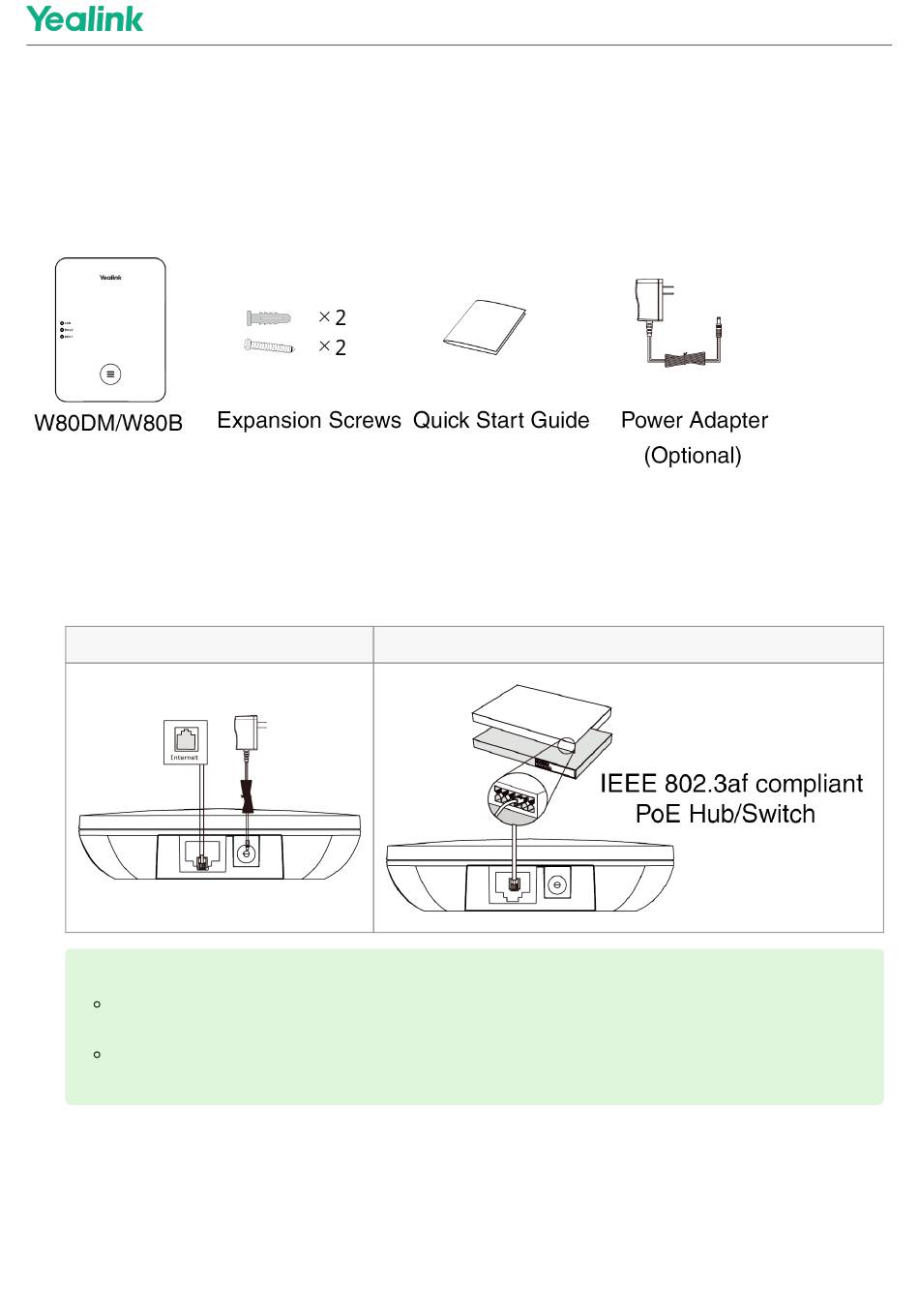

W80B & W80DM Quick Start
W80B & W80DM Quick Start
Package Contents
Package Contents
Assemble W80B/W80DM
Assemble W80B/W80DM
Procedure
Procedure
1. Connect the base station power and the network using method A or method B.
Method A - AC Power Option
Method A - AC Power Option
 TIP
TIP
If you choose method a, use Yealink supplied power adapter (5 V/1.2 A). A third-party power adapter
may damage the device.
If you choose method b, you do not need to connect the power adapter. Make sure the hub/switch is
PoE-compliant.
Method B - PoE (Power over Ethernet) Option
Method B - PoE (Power over Ethernet) Option
1
W80B & W80DM Quick Start
