USB5GX-520K
Pro AV/IT Integrator Series™ Seven (7) Port SuperSpeed USB 5Gbps
Extender Kit up to 330ft Over Cat6A with USB-C & USB-A Data Ports,
USB Host Switching, RS232, FSYNC GPIO
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB5GX-520K and is the answer not in the manual?

Questions and answers

Summary of Contents for Comprehensive USB5GX-520K

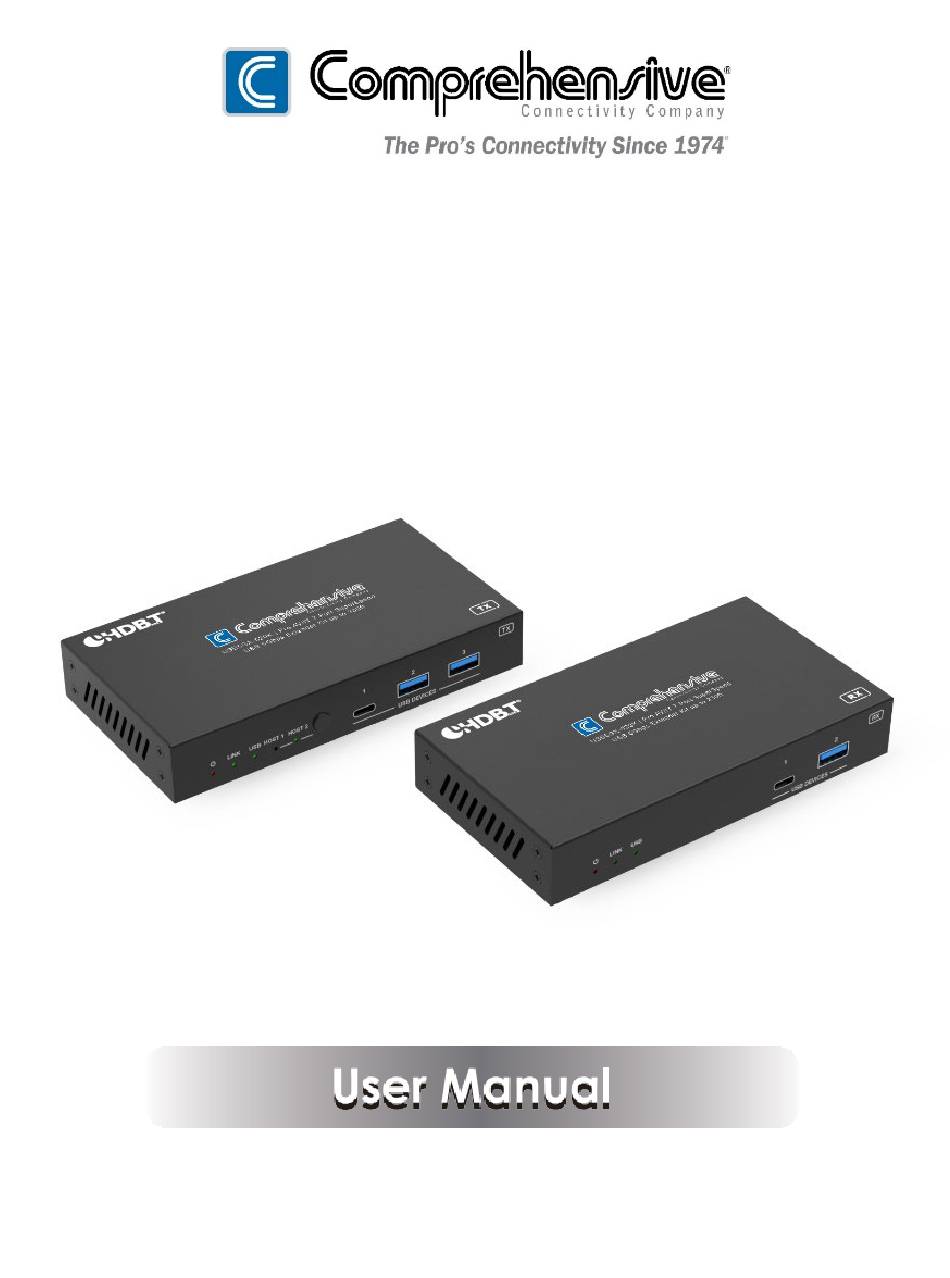

  • Page 1 USB5GX-520K Pro AV/IT Integrator Series™ Seven (7) Port SuperSpeed USB 5Gbps Extender Kit up to 330ft Over Cat6A with USB-C & USB-A Data Ports, USB Host Switching, RS232, FSYNC GPIO VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction The Comprehensive USB5GX-520K is a seven (7) port USB 3.2 super speed 5Gbps extension solution. The USB5GX-520K USB Extender allows you to extend a USB 3.2 (5Gbps) signal up to 100 meters (328 feet) using a single CAT6A cable. The transmitter has two input options: one USB-C port and one USB-B port, which you can switch between.
  • Page 4: Specifications

    4. Specifications Technical USB Protocol SuperSpeed USB 3.2 Gen 1 Transmission Rate Up to 5Gbps 5Gbps = Cat 5e/6 70m (230ft) Transmission Distance 5Gbps = Cat 6A/7 100m (330ft) 5Gbps = USB cable 1.5m (4.9ft) Also supports active USB cables Cat Cable Requirements Cat6A cable is recommended for optimal performance.
  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel 14 15 Name Function Description Power LED The LED will be on when the transmitter is powered on. Connection signal indicator. ▪ On: Transmitter and Receiver are connected and linked. LINK LED ▪...
  • Page 6: Function Description

    Name Function Description Connects to the HDBT-USB3 port on Receiver with CAT6a cable. HDBT-USB3 Connection signal indicator. LINK LED ▪ On: Transmitter and Receiver are connected and linked. ▪ Off: Transmitter and Receiver are not connected. Uplink USB-C port, connected to a PC or host. HOST 1 It can be used to update HUB firmware.
  • Page 7 Name Function Description Power LED The LED will be on when the receiver is powered on. Connection signal indicator. ▪ On: Transmitter and Receiver are connected and linked. LINK LED ▪ Off: Transmitter and Receiver are not connected. USB signal indicator. ▪...
  • Page 8: Api Commands

    6. API Commands This product supports API commands control. Connect the SERVICE or RS-232 port of the product to a PC, then open a Serial Command tool on PC to send ASCII commands to control the product. The API commands list is shown below. ASCII Commands 1.
  • Page 9 Example Function Feedback Default Command Set USB host input port (x=1~2) x=1: USB host 1 (USBC) set input 1 set input x Set input USB host 1 x=2: USB host 2 (USBB) get input get input Get USB host input port Input USB host 1 Get USB host input port 5V (x=0~2)
  • Page 10 Example Function Feedback Default Command Get RX USB device ports (x=0~4) power status RX all USB device x=0: RX all USB device ports get rx usbd 0 get rx usbd x ports power follow x=1: RX USB device 1 (USBC) power power USB host power...
  • Page 11: Application Example

    7. Application Example Mouse Transmitter Keyboard LINK USB HOST 1 HOST 2 HDBT-USB3 LINK HOST 1 HOST 2 RS-232 FSYNC SERVICE DC 24V Power Supply CAT6a Host USB Camera Microphone U Disk Receiver HDBT-USB3 LINK USB DEVICES RS-232 FSYNC SERVICE DC 24V LINK USB DEVICES...
