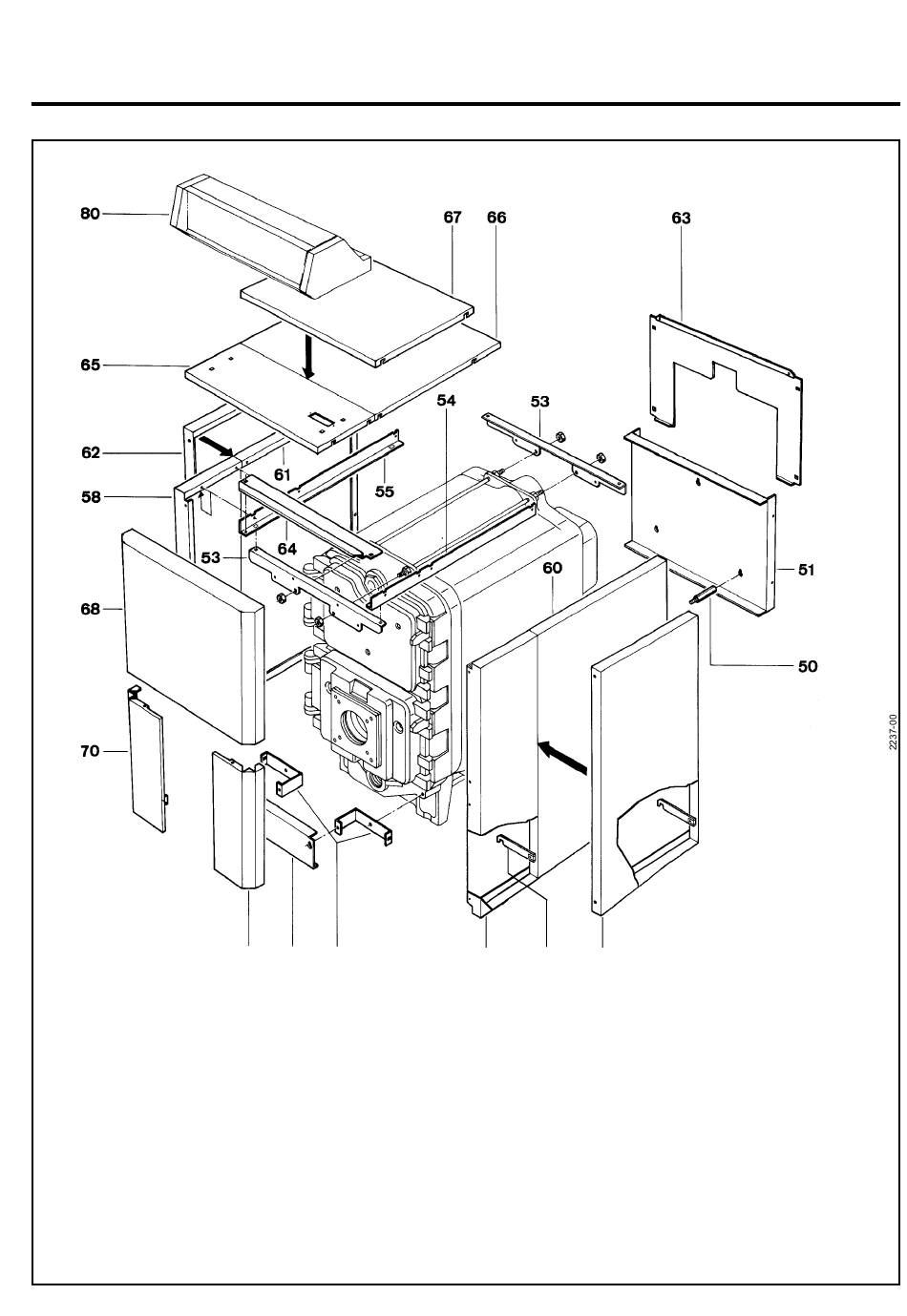

CASING ASSEMBLY
Fig. 15
50 Rear spacer
51 Lower rear
52 Lower foot
53 Cross-member
54 Right side-rail
55 Left side-rail
56 Lower mask
57 Right side
58 Left side
59 Side restraint
60 Rear right side
61 Rear left side
69 56 52 57 59 62
62 Middle side
63 Upper rear
64 Slinger
65 Front top
66 Rear top
67 Middle top
68 Upper front
69 Lower right front
70 Lower left front
71 Casing screw bag
80 Control panel
