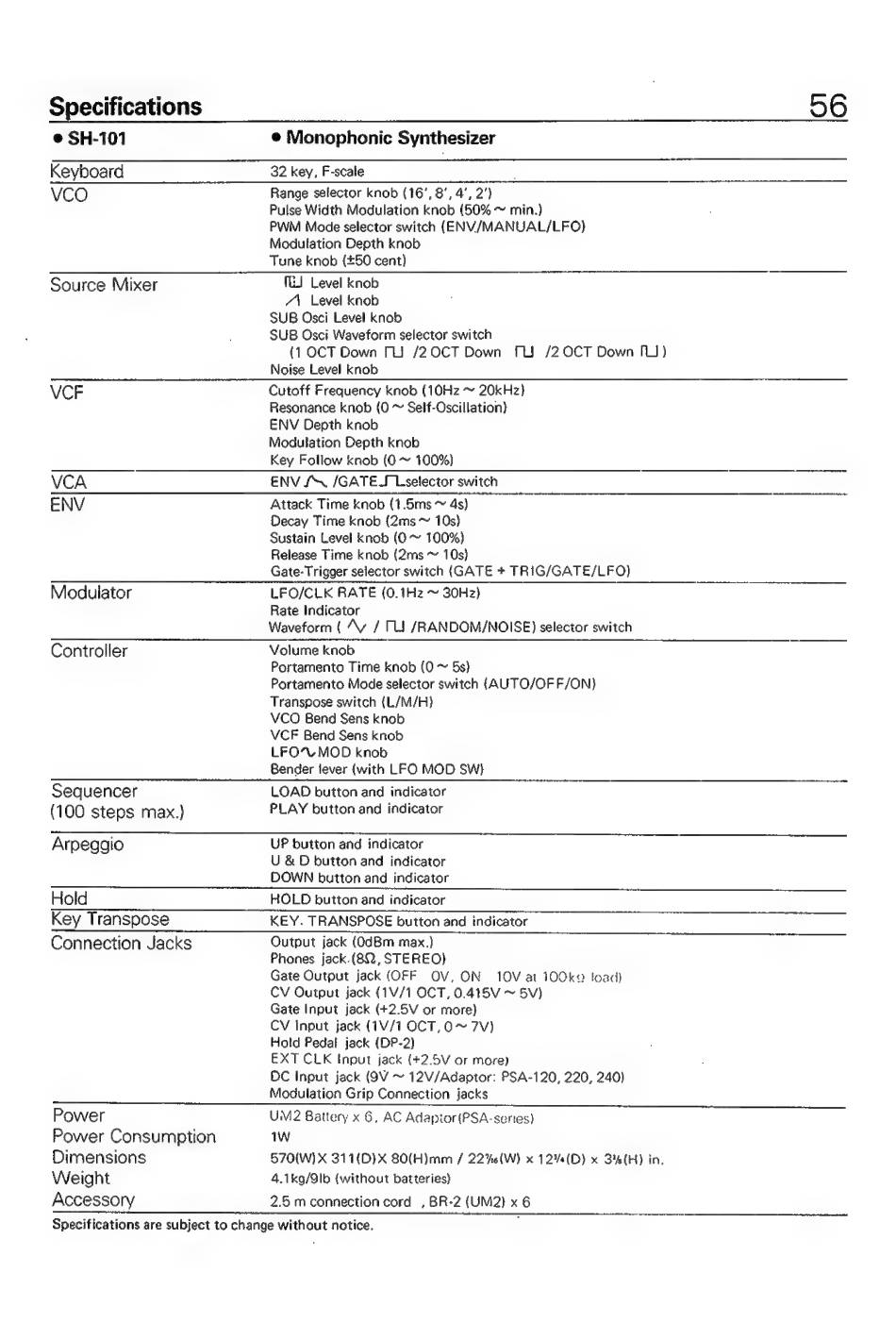

Roland SH-101 Owner's Manual page 56

Specifications
e SH-101
Keyboard
VCO
Source Mixer
06
® Monophonic Synthesizer
32 key, F-scale
Range selector knob (16', 8', 4', 2')
Pulse Width Modulation knob (50% ~ min.)
PWM Mode selector switch (ENV/MANUAL/LFO)
Modulation Depth knob
Tune knob {£50 cent)
fl Level knob
/\ Level knob
SUB Osci Level knob
SUB Osci Waveform selector switch
{1 OCT Down TU /20CT Down [LJ /2 OCT Down MJ)
Noise Level knob
Cutoff Frequency knob (10Hz ~ 20kHz}
Resonance knob (0 ~ Self-Oscillation}
ENV Depth knob
Modulation Depth knob
Key Follow knob (0 ~ 100%)
Modulator
Controller
Sequencer
(100 steps max.)
Arpeggio
Hold
Key Transpose
Connection Jacks
Power
Power Consumption
Dimensions
Weight
Accessory
ENV JS /GATES Lselector switch
Attack Time knob (1.5ms ~ 4s)
Decay Time knob {2ms ~ 10s)
Sustain Level knob (0 ~ 100%)
Release Time knob (2ms ~ 10s)
Gate-Trigger selector switch (GATE + TRIG/GATE/LFO)
LFO/CLK RATE (0.1H2z ~ 30Hz}
Rate Indicator
Waveform ( Av / TU /RANDOM/NOISE) selector switch
Volume knob
Portamento Time knob (0 ~ 5s}
Portamento Mode selector switch {AUTO/OFF/ON}
Transpose switch ({L/M/H}
VCO Bend Sens knob
VCF Bend Sens knob
LFO'~. MOD knob
Sender lever (with LFO MOD SW}
LOAD button and indicator
PLAY button and indicator
UP button and indicator
U & D button and indicator
DOWN button and indicator
HOLD button and indicator
KEY. TRANSPOSE button and indicator
Output jack (OdBm max.)
Phones jack.(8&, STEREO}
Gate Output jack (OFF OV, ON 10V at 100k toad)
CV Output jack {(1V/1 OCT, 0.415V ~ 5V)
Gate Input jack (+2.5V or more}
CV Input jack (1V/1 OCT, O~ 7V)
Hold Pedal jack {DP-2)
EXT CLK tEnput jack {+2.5V or more)
DC Input jack (9V ~ 12V/Adaptor: PSA-120, 220, 240)
Modulation Grip Connection jacks
1W
570(W) X 311(D}X 80(H)mm / 22%6(W) x 12%4(D) x 3'%*(H) in.
4.1kg/Olb {without batteries)
2.5m connection cord , BR-2 (UM2} x 6
Specifications are subject to change without notice.
