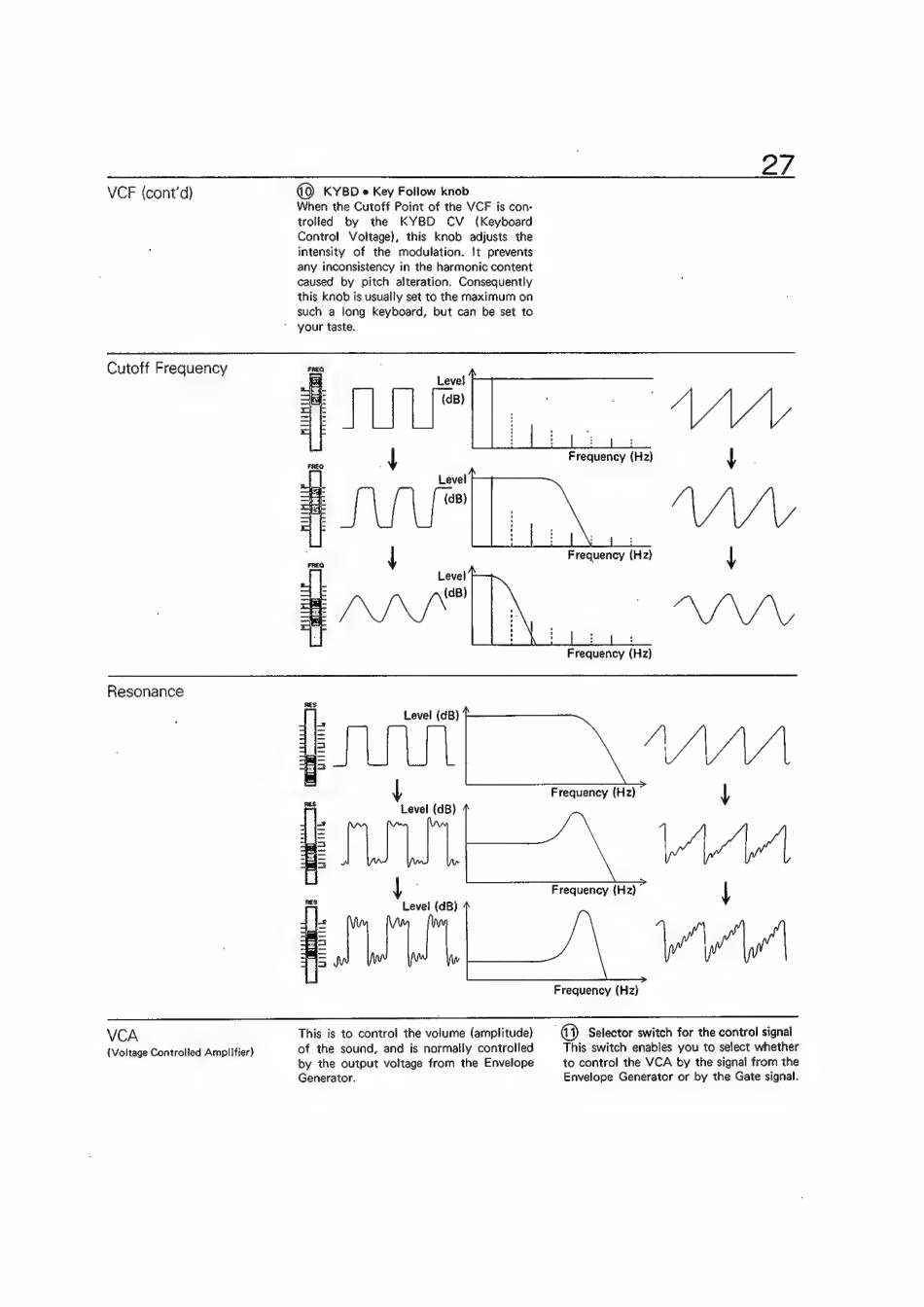

VCF (cont'd)
Cutoff Frequency
2/
KYBD e Key Follow knob
When the Cutoff Point of the VCF is con-
trolled by the KYBD CV (Keyboard
Control Voltage}, this knob adjusts the
intensity of the modulation. it prevents
any inconsistency in the harmonic content
caused by pitch alteration. Consequently
this knob is usually set to the maximum on
such a long keyboard, but can be set to
your taste.
Level
{dB}
J Frequency (Hz)
Level
(d8)
Frequency (Hz)
Level
AAA 2
1.
Oy
{
Frequency (Hz)
Resonance
RES
he Level (dB)
5
Frequency (Hz)
"4 ve (dB)
=
2 a
as
Frequency {Hz)
ao ae (dB)
=
es
Frequency (Hz}
VCA This is to control the volume (amplitude) ® Selector switch for the control signal
{Voltage Controlled Amplifier}
of the sound, and is normally controlled This switch enables you to select whether
by the output voltage from the Envelope to control the VCA by the signal from the
Generator. Envelope Generator or by the Gate signal.
