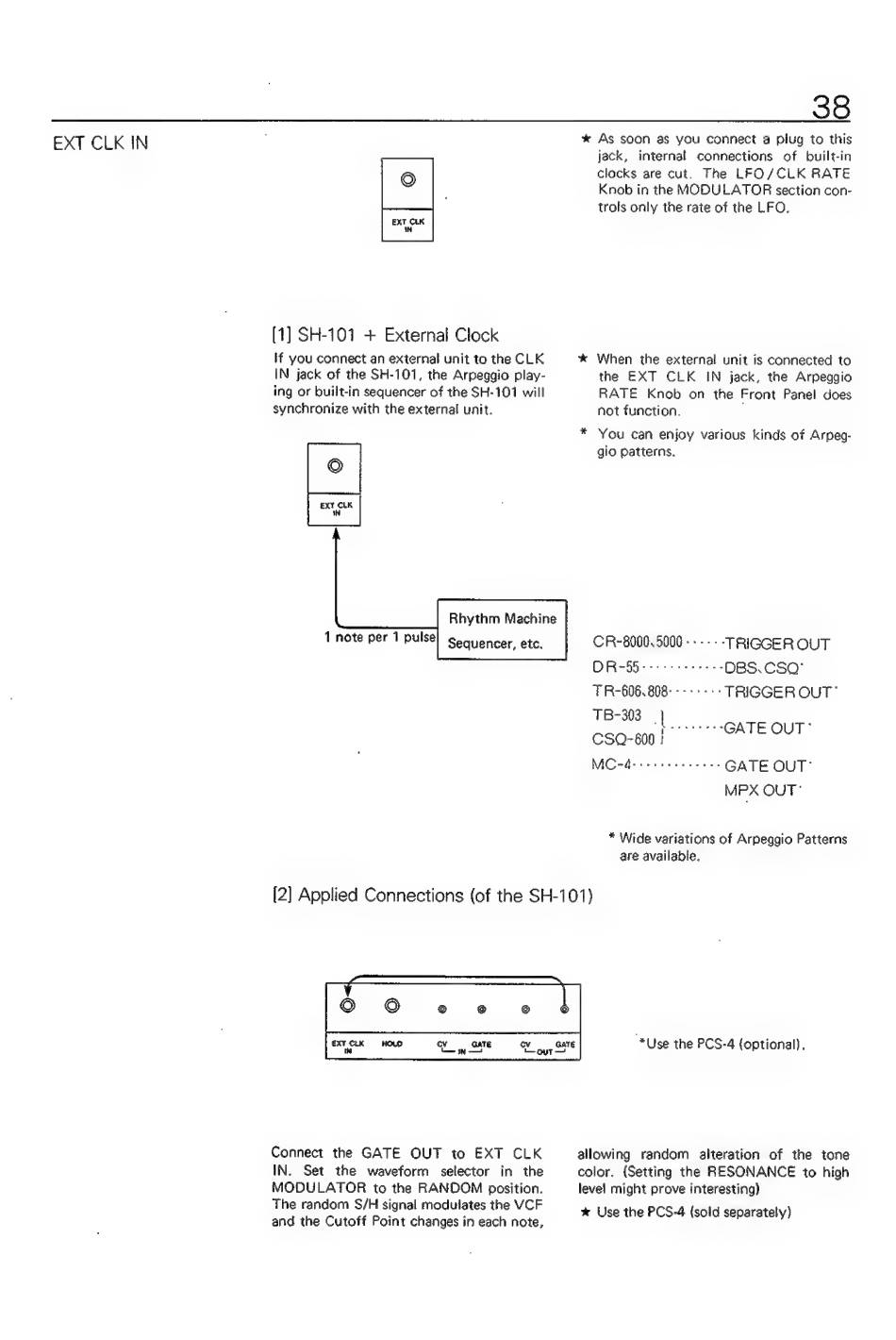

EXT CLK IN
[1] SH-1071 + External Clock
if you connect an external unit to the CLK
IN jack of the SH-101, the Arpeggio play-
ing or built-in sequencer of the SH-1071 will
synchronize with the external unit.
Rhythm Machine
1 note per 1 pulse! sequencer, ete.
38
* AS soon as you connect a plug to this
jack, internal connections of built-in
clocks are cut. The LFO/CLK RATE
Knob in the MODULATOR section con-
trols only the rate of the LFO.
* When the external unit is connected to
the EXT CLK IN jack, the Arpeggio
RATE Knob on the Front Panel does
not function.
You can enjoy various kinds of Arpeg-
gio patterns.
DRAGS estes 08S.CSQ°
TR-606.808-2 25+ TRIGGER OUT"
age rn GATE OUT"
CSQ-600 |
NA Se idcaates Bate GATE OUT:
MPX OUT"
* Wide variations of Arpeggio Patterns
are available.
[2] Applied Connections (of the SH-101)
yr SHE
Connect the GATE OUT to EXT CLK
IN. Set the waveform selector in the
MODULATOR to the RANDOM position.
The random S/H signal modulates the VCF
and the Cutoff Point changes in each note,
"*Use the PCS-4 (optional).
allowing random alteration of the tone
color. (Setting the RESONANCE to high
leve! might prove interesting)
* Use the PCS-4 (sold separately)
