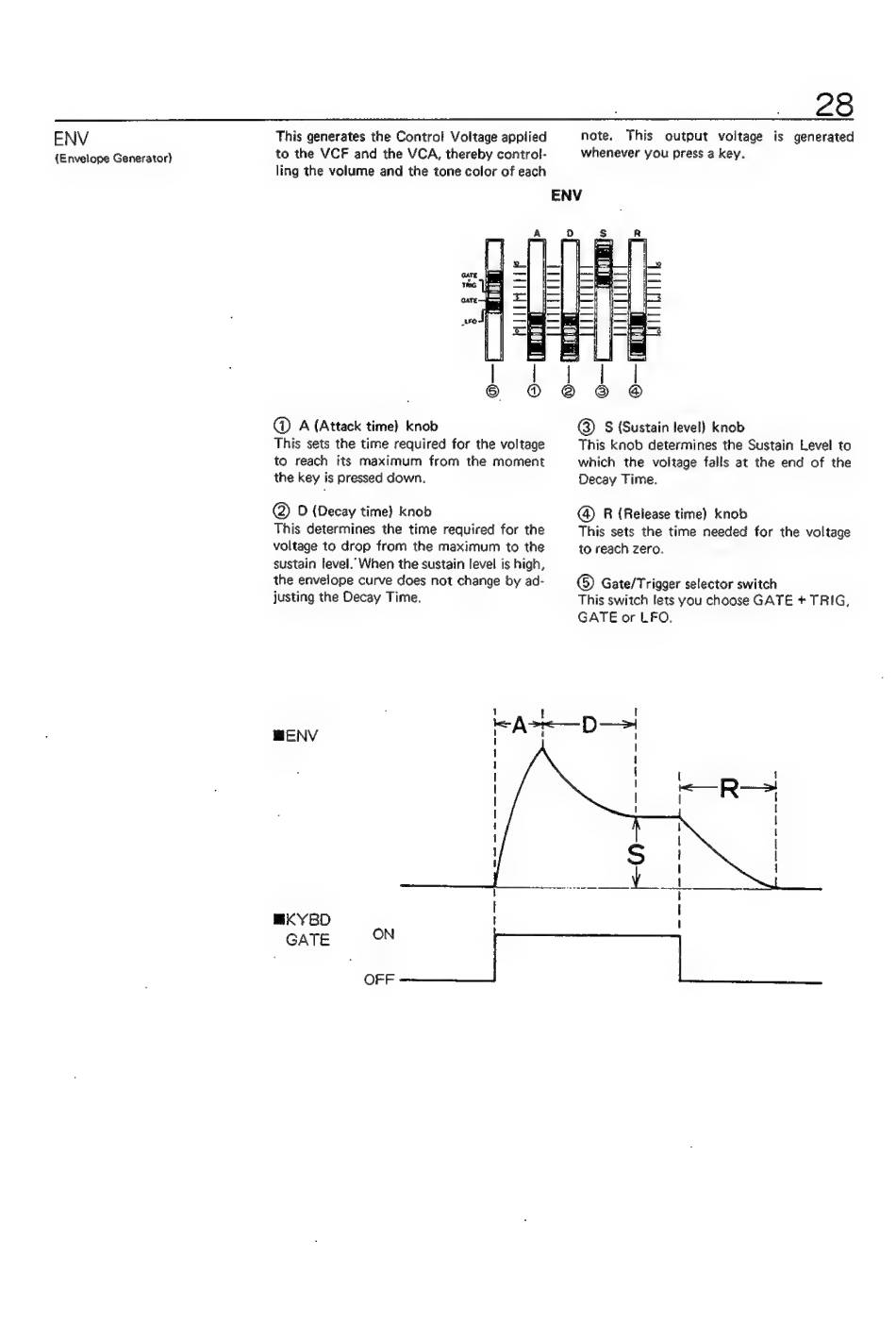

Roland SH-101 Owner's Manual page 28

28
note. This output voltage is generated
whenever you press a key.
This generates the Control Voltage applied
to the VCF and the VCA, thereby control-
ling the volume and the tone color of each
ENV
ENV
{Envelope Generator}
2.)
one ta
THG —
OaTE =
tro = x
| |
© @®
@) A (Attack time} knob
This sets the time required for the voltage
to reach its maximum from the moment
the key is pressed down.
@) D {Decay time} knob
This determines the time required for the
voltage to drop from the maximum to the
sustain level.' When the sustain level is high,
the envelope curve does not change by ad-
justing the Decay Time.
BENV
BKYBD
GATE
OFF
@) S$ (Sustain level) knob
This knob determines the Sustain Level to
which the voltage falls at the end of the
Decay Time.
@) R (Release time) knob
This sets the time needed for the voltage
to reach zero.
©) Gate/Trigger selector switch
This switch lets you choose GATE + TRIG,
GATE or LFO.
