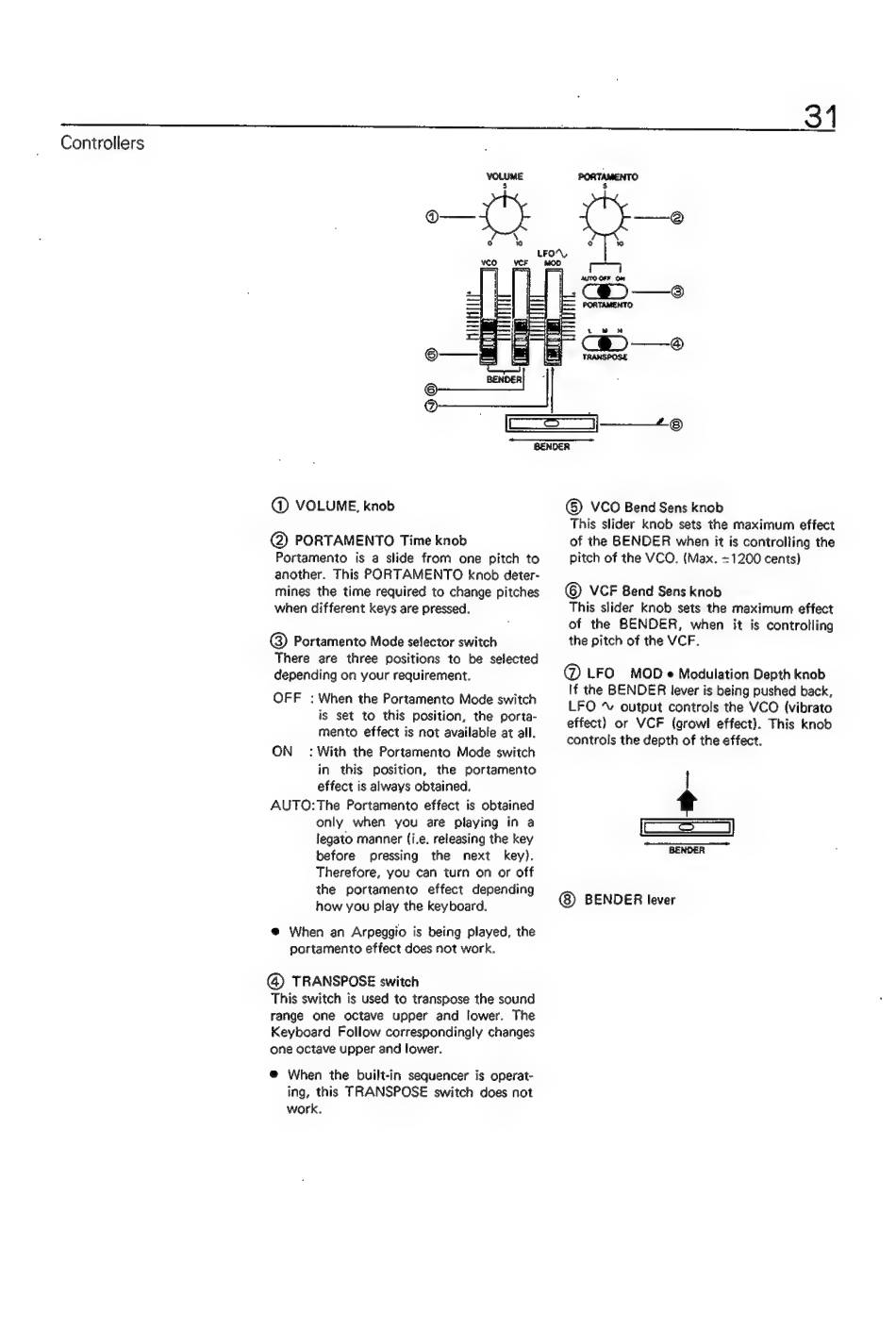

Roland SH-101 Owner's Manual page 31

31
Controllers
@ VOLUME, knob
@) PORTAMENTO Time knob
Portamento is a slide from one pitch to
another. This PORTAMENTO knob deter-
mines the time required to change pitches
when different keys are pressed.
@Q) Portamento Mode selector switch
There are three positions to be selected
depending on your requirement.
OFF : When the Portamento Mode switch
is set to this position, the porta-
mento effect is not available at all.
ON : With the Portamento Mode switch
in this position, the portamento
effect is always obtained.
AUTO:The Portamento effect is obtained
only when you are playing in a
legato manner (i.e. releasing the key
before pressing the next key).
Therefore, you can turn on or off
the portamento effect depending
how you play the keyboard.
® When an Arpeggio is being played, the
portamento effect does not work.
@) TRANSPOSE switch
This switch is used to transpose the sound
range one octave upper and lower. The
Keyboard Follow correspondingly changes
one octave upper and lower.
® When the built-in sequencer is operat-
ing, this TRANSPOSE switch does not
work.
() VCO Bend Sens knob
This slider knob sets the maximum effect
of the BENDER when it is controlling the
pitch of the VCO. (Max. =1200 cents)
© VCF Bend Sens knob
This slider knob sets the maximum effect
of the BENDER, when it is controlling
the pitch of the VCF.
@ LFO MOD e Modulation Depth knob
If the BENDER lever is being pushed back,
LFO ~ output controls the VCO (vibrato
effect) or VCF (growl effect). This knob
controls the depth of the effect.
|
t
BENDER
BENDER lever
