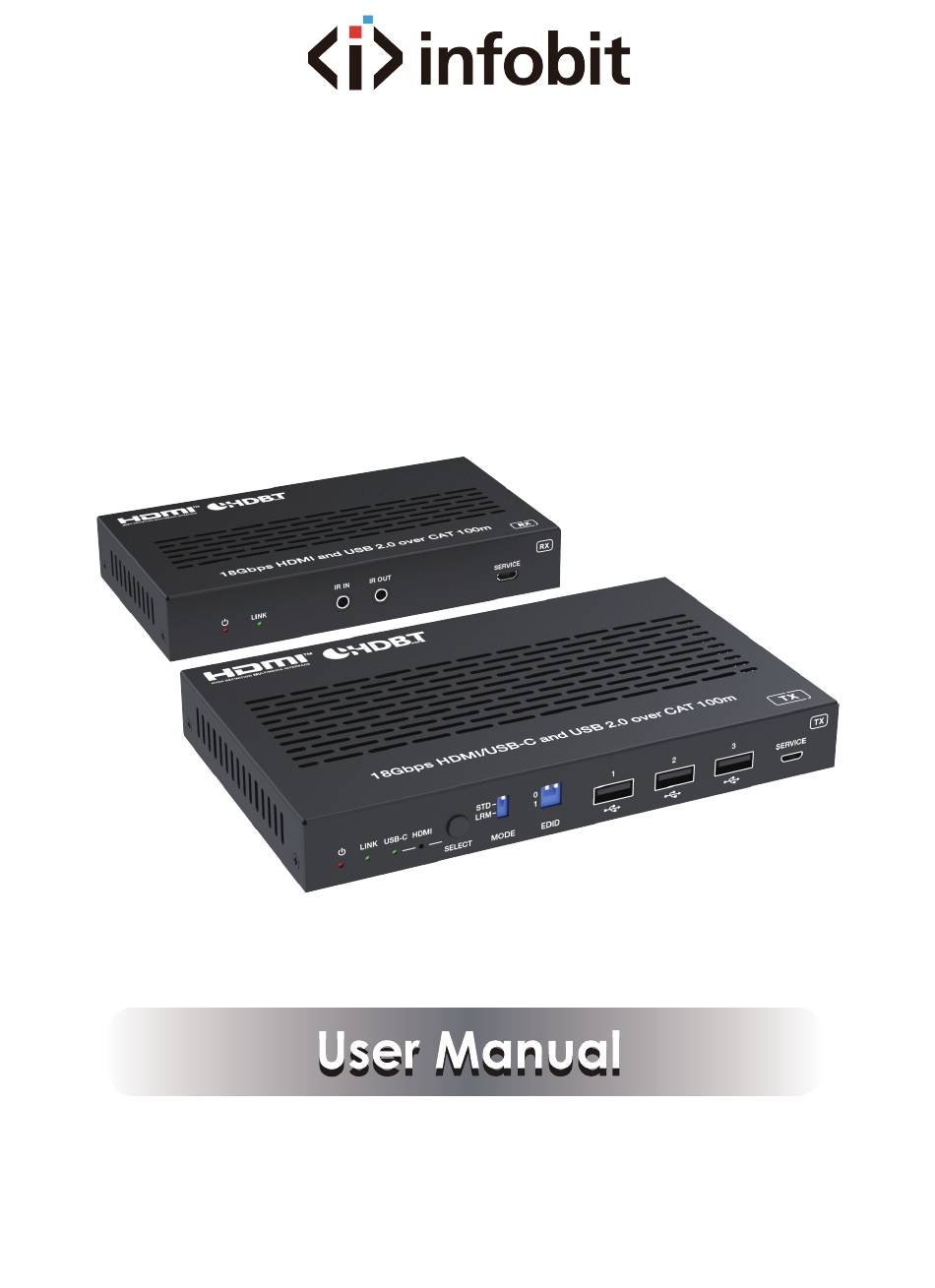

- Page 1 E100HCU 18Gbps HDMI/USB-C over HDBaseT 2.0 Extender (100m) with USB 2.0 VER 1.0 www.infobitav.com info@infobitav.com...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 18Gbps HDBaseT 2.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 328ft/100m via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. -
Page 4: Package Contents
3. Package Contents ① 1 × 18Gbps HDMI/USB-C over HDBaseT 2.0 Extender (Transmitter) ② 1 × 18Gbps HDMI Receiver ③ 1 × IR Blaster Cable (1.5 meters) ④ 1 × IR Wideband Receiver Cable (1.5 meters) ⑤ 2 × 3pin-3.81mm Phoenix Connector (male) ⑥... - Page 5 Connection Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C, 24-pin female] Output: 1 x HDBaseT OUT [RJ45, 8-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] Transmitter 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix connector]...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel 2 3 4 Name Function Description Power LED Red LED indicates that the transmitter is powered on. ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection LINK LED status. - Page 7 Name Function Description Used for EDID setting: 00- Copy display’s EDID (as factory default) EDID DIP 01- 4K30 4:4:4 switch 10- 1080p60 4:4:4 11- 1200p60 4:4:4 Three USB extension ports, connected to mouse, keyboard, USB USB Device Flash Drive or other USB devices, with a maximum power supply ports of 5V/500mA.
-
Page 8: Receiver Panel
Name Function Description DC 24V/3.75A power supply input port. Note that the extender supports POC function, it means that either transmitter DC 24V or receiver is powered on by 24V/3.75A power adapter, the other one doesn’t need power supply. 21 POC switch Use the switch to turn on/off the POC function. -
Page 9: Ir Pin Definition
Name Function Description ▪ Light on: There is video signal transmission with HDCP encryption. Data Signal ▪ Light flashing: There is video signal transmission without HDCP Indicator encryption. (Yellow) ▪ Light off: There is no video signal transmission. ▪ Light on: Transmitter and receiver are in good connection status. Link Signal ▪... -
Page 10: Api Commands
7. API Commands The product also supports API commands control. Connect the RS-232 port of the product to a PC or control system with a 3-pin phoenix connector cable, or connect the port of the product to a PC with a Micro USB cable. SERVICE Then, open a serial command tool on PC to send ASCII commands to control the product. - Page 11 Command Code Function Description Example Feedback Default Set TX input video s tx input x = USBC, HDMI, s tx input x USBC Set tx input from USBC USBC AVMUTE, OFF r tx input Get TX input port r tx input USBC Set TX auto-switching s tx autoswitch...
- Page 12 Command Code Default Function Description Example Feedback Set input ports EDID x = USBC, HDMI, ALL 00 - EDID dip switch (default) 01 - 1920x1080@60 8bit Stereo 02 - WUXGA 1920x1200 03 - 1920x1080@60 8bit High Definition Audio 04 - 3840x2160@60Hz 4:2:0 Deep Color Stereo s edid USBC to Set edid USBC to 00 - EDID...
-
Page 13: Application Example
8. Application Example Keyboard Printer Mouse Transmitter HDMI Matrix with RS-232 function Speakers IR Blaster Laptop 1 IR Receiver PC or CAT6A/7 cable Control System Amplifier Laptop 2 (with USB-C port) TV or Monitor USB Camera Power Supply USB Flash Drive Receiver IR Receiver IR Blaster...
