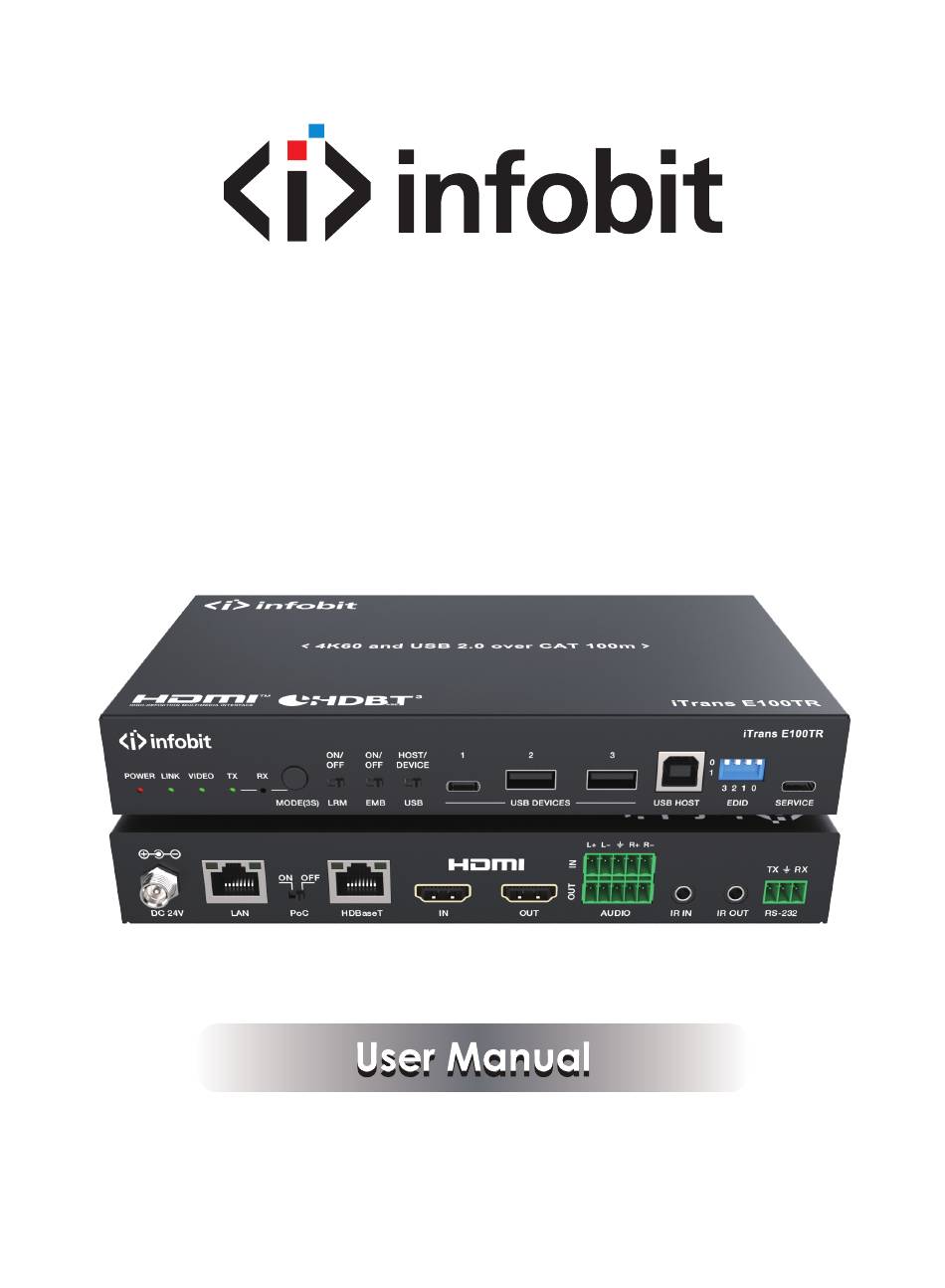

- Page 1 E100TR 4K60 HDBaseT 3.0 100m Extender (Transceiver) with USB 2.0 VER 1.0 www.infobitav.com info@infobitav.com...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This HDBaseT 3.0 Extender is designed as a transceiver, which can extend uncompressed HD/UHD video and audio signals, RS-232, bi-directional IR, 1GbE Ethernet and USB 2.0 signals up to 328ft/100m via a single CAT6A/7 cable. It features one HDMI input and one HDMI output. It supports audio embedding or de-embedding, EDID management, 1G network pass-through, USB 2.0 (Host/Device is configurable), bi-directional IR and RS-232. -
Page 4: Package Contents
3. Package Contents ① 1 x HDBaseT 3.0 Extender (Transceiver) ② 1 x 5pin-3.5mm Phoenix Connector (male) ③ 1 x 3pin-3.5mm Phoenix Connector (male) ④ 1 x IR Blaster Cable (1.5 meters) ⑤ 1 x IR Wideband Receiver Cable (1.5 meters) ⑥... - Page 5 IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Analog Audio Input Impedance 10KOhms Output Impedance 330Ohms Line Input Level 8.2dBu (2Vrms) @ balanced audio (Maximum) Line Output Level 8.2dBu (2Vrms) @ balanced audio (Maximum) Frequency Response (+0.5dB, -1dB) 20Hz to 20kHz Audio Output Delay <...
- Page 6 Input: 1 x HDMI IN [Type A, 19-pin female] 1 x HDBaseT [RJ45, 8-pin female] 1 x AUDIO IN [5pin-3.5mm phoenix connector, invalid] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [5pin-3.5mm Phoenix jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] RX mode 1 x RS-232 [3pin-3.5mm Phoenix jack]...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions Name Function Description POWER LED Red LED indicates that the unit is powered on. ▪ Light on: Transmitter and Receiver are connected via the LINK LED HDBaseT port. ▪ Light off: Transmitter and Receiver are not connected. ▪... - Page 8 Name Function Description USB HOST USB extension host port, connected to PC. EDID DIP EDID DIP switch, please refer to “6. EDID Mode” for details. switch USB-C port, used for API commands transmission or firmware SERVICE update. DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either the DC 24V transmitter or receiver is powered on by 24V/1A power adapter, the other one...
-
Page 9: Edid Mode
Name Function Description AUDIO IN: Analog audio input port, supporting balanced audio input (with a maximum support of 2Vrms) and unbalanced audio input (with a maximum support of 1Vrms). Balanced connection method: L+, L -, GND, R+, R- Unbalanced connection method: L+, GND, R+ AUDIO IN/ AUDIO OUT: Analog audio output port, supporting balanced audio output (with a maximum support of 2Vrms) and unbalanced... - Page 10 DIP [3210] = 1011: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 7.1ch PCM/DTS/ DOLBY/HD DIP [3210] = 1100: DVI 1280x1024@60Hz, Audio None DIP [3210] = 1101: DVI 1920x1080@60Hz, Audio None DIP [3210] = 1110: DVI 1920x1200@60Hz, Audio None DIP [3210] = 1111: Software EDID (via SERVICE port) The EDID modes in RX mode are as following: DIP [3210] = 0000: Auto EDID (default) Note: Auto EDID = RX HDMI OUT EDID or use 1080p@60Hz audio 2ch PCM...
-
Page 11: Audio Embedding And De-Embedding
7. Audio Embedding and De-embedding The Extender supports audio embedding and de-embedding in TX mode. The AUDIO IN port can be used for audio embedding, and the AUDIO OUT port can be used for audio de-embedding. ▪ TX Audio Embedding When the EMB ON/OFF switch is switched to left, the audio from external audio device will be embedded to the AUDIO IN port. -
Page 12: Usb Mode Applications
8. USB Mode Applications The Extender supports USB 2.0 transmission, and Host/Device is configurable. Mode 1: USB forward from TX to RX Switch the HOST/DEVICE USB switch of TX to left, then the TX will be set to USB Host mode. Meanwhile, switch the HOST/DEVICE USB switch of RX to right, then the RX will be set to USB Device mode. -
Page 13: Hdmi Out Video Function
9. HDMI OUT Video Function When the unit is in TX mode, the HDMI OUT port supports signal bypass; When the unit is in RX mode, the HDMI OUT port supports TMDS OFF/ BYPASS/AV MUTE/PATTERN, and supports setting the auto scaler mode through API commands. -
Page 14: Api Commands
11. API Commands The product also supports API commands control. Connect the SERVICE port of the product to a PC with a USB-C cable. Then, open a serial command tool on PC to send ASCII commands to control the product. The ASCII commands list about the product is shown as below. - Page 15 API for Command Default Function Description Example Feedback TX or RX Code or TX/RX Set TX internal pattern generator resolution (x=1~8) pattern(y=1~12) x=01: 1080P60Hz x=02: 4K60Hz x=03: 4K30Hz x=04: 4K50Hz x=05: 4K25Hz x=06: 4K24Hz set tx pattern Set TX pattern 1080P60Hz set tx pattern x=07: 720P60Hz checkboard...
- Page 16 API for Command Default Function Description Example Feedback TX or RX Code or TX/RX x=06: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 2ch PCM x=07: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 5.1ch PCM/DTS/DOLBY x=08: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 7.1ch PCM/DTS/DOLBY/HD x=09: DVI 1280x1024@ 60Hz, Audio None x=10: DVI 1920x1080@ 60Hz, Audio None...
- Page 17 API for Command Default Function Description Example Feedback TX or RX Code or TX/RX get edid data Get HDMI input port get edid data <00 FF FF FF….> TX/RX EDID data Set user defined EDID (x=0~2) to y x=0: User Defined 1 and set user edid set user edid User Defined 1 EDID is...
- Page 18 API for Command Function Description Example Feedback Default TX or RX Code or TX/RX Set RX internal pattern generator resolution (x=1~8) pattern(y=1~12) x=01: 1080P60Hz x=02: 4K60Hz x=03: 4K30Hz x=04: 4K50Hz x=05: 4K25Hz x=06: 4K24Hz x=07: 720P60Hz x=08: 480P60Hz set rx pattern set rx pattern Set RX pattern 1080P60Hz y=01: Black...
- Page 19 Note: The feedback of the command of “get status” is as following. (The middle line ends with <LF> <CR> and the last line ends with <CR><LF>.) ========================================================================================== Status Info HDBaseT 3.0 Extender FW v1.0.0 Mode Link Video Key LRM EDID DIP_0000: Auto EDID USB_Mode USBC1_Power...
-
Page 20: Application Example
12. Application Example Transmitter Power Supply IR Blaster HDMI Matrix with DVD or Blu-ray Router RS-232 function IR Receiver Player CAT6A/7 Audio Amplifier cable TV box IR Receiver Speakers IR Blaster Receiver Printer Keyboard Mouse The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
