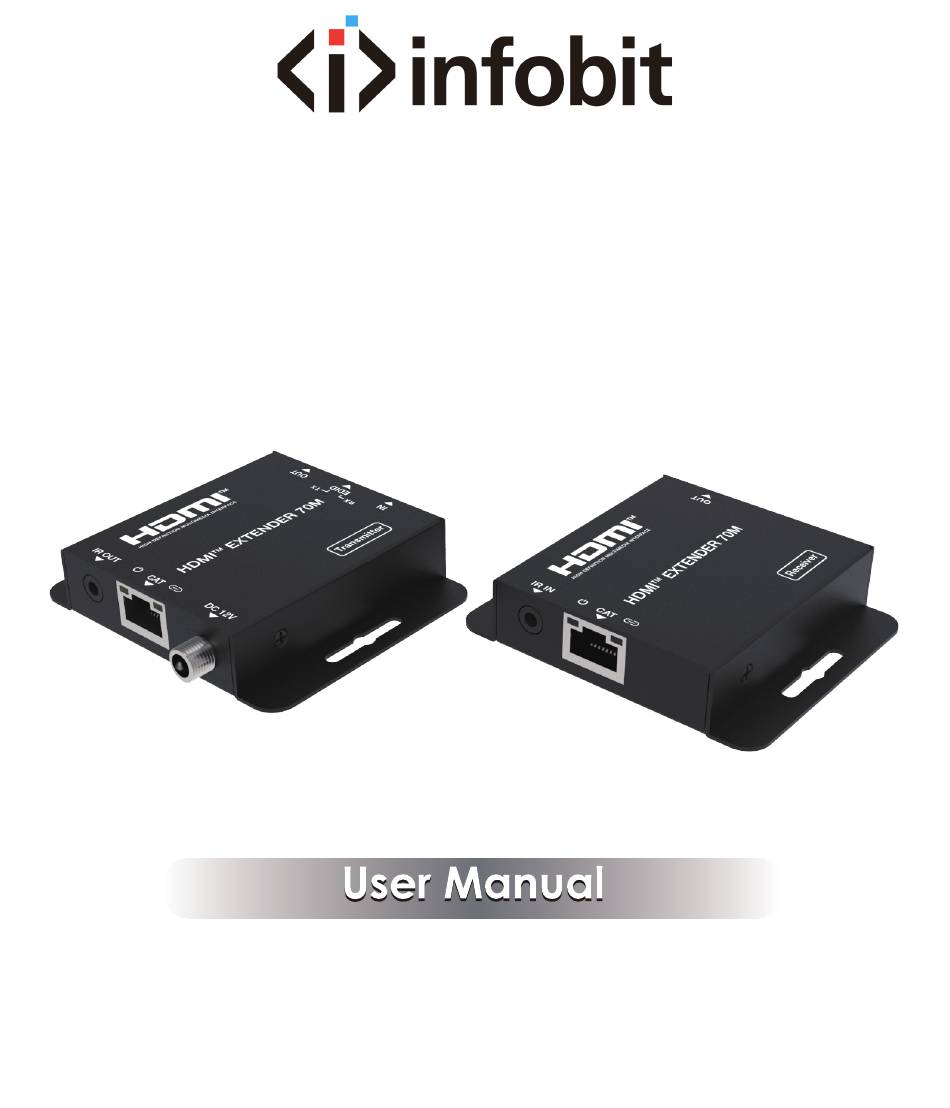

- Page 1 E70N HDMI Extender (70M) with IR Control VER 2.0 www.infobitav.com info@infobitav.com...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.
- Page 3 1. Introduction This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K30 resolution via a single CAT6 cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz.
- Page 4 3. Package Contents ① 1× HDMI Transmitter ② 1× HDMI Receiver ③ 1× IR Blaster Cable (1.5 meters) ④ 1× IR Receiver Cable (1.5 meters) ⑤ 1× 12V/1A DC Power Adapter ⑥ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps...
- Page 5 Connection Input: 1x IN [HDMI Type A, 19-pin female] Output:1x OUT [HDMI Type A, 19-pin female] Transmitter 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] Input: 1x IR IN [3.5mm Stereo Mini-jack] Receiver 1x CAT IN [RJ45, 8-pin female] Output: 1x OUT [HDMI Type A, 19-pin female] Mechanical Housing...
- Page 6 5. Operation Controls and Functions 5.1 Transmitter Panel EDID IR OUT DC 12V Name Function Description HDMI signal input port. Connect to HDMI IN port source device such as DVD or Set-top box. The switch is used for selecting EDID: Switch to the right position, the extender will EDID copy HDMI loop out display EDID information...
- Page 7 ▪ Light on: HDMI signal with HDCP. Digital signal ▪ Light flashing: HDMI signal without HDCP. indicator light ▪ Light off: No HDMI signal. DC 12V power supply port. DC 12V 5.2 Receiver Panel IR IN Name Function Description HDMI signal output port. Connect to HDMI OUT port display device such as HDTV.
- Page 8 5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding...
- Page 9 6. Application Example Transmitter Power Supply CAT5E/6 cable UHDTV DVD or Blu-ray Player IR Blaster Receiver IR Receiver UHDTV The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
