Owner's Manual
RRB-Series
This Owner's Manual provides assembly, install
and user guidance. It applies to all RRB Truck
Rack Series sold by Ranger Design. For a
list of compatible models, visit our website at
rangerdesign.com.
Contents
Warnings ....................2
Parts Included ............3
Tools Required ...........4
Assembly ...................5
Installation ............... 13
by
This Owner's Manual must remain in vehicle at all times.
Scan the QR code for the
latest Installation Guide.
For more information,
visit rangerdesign.com

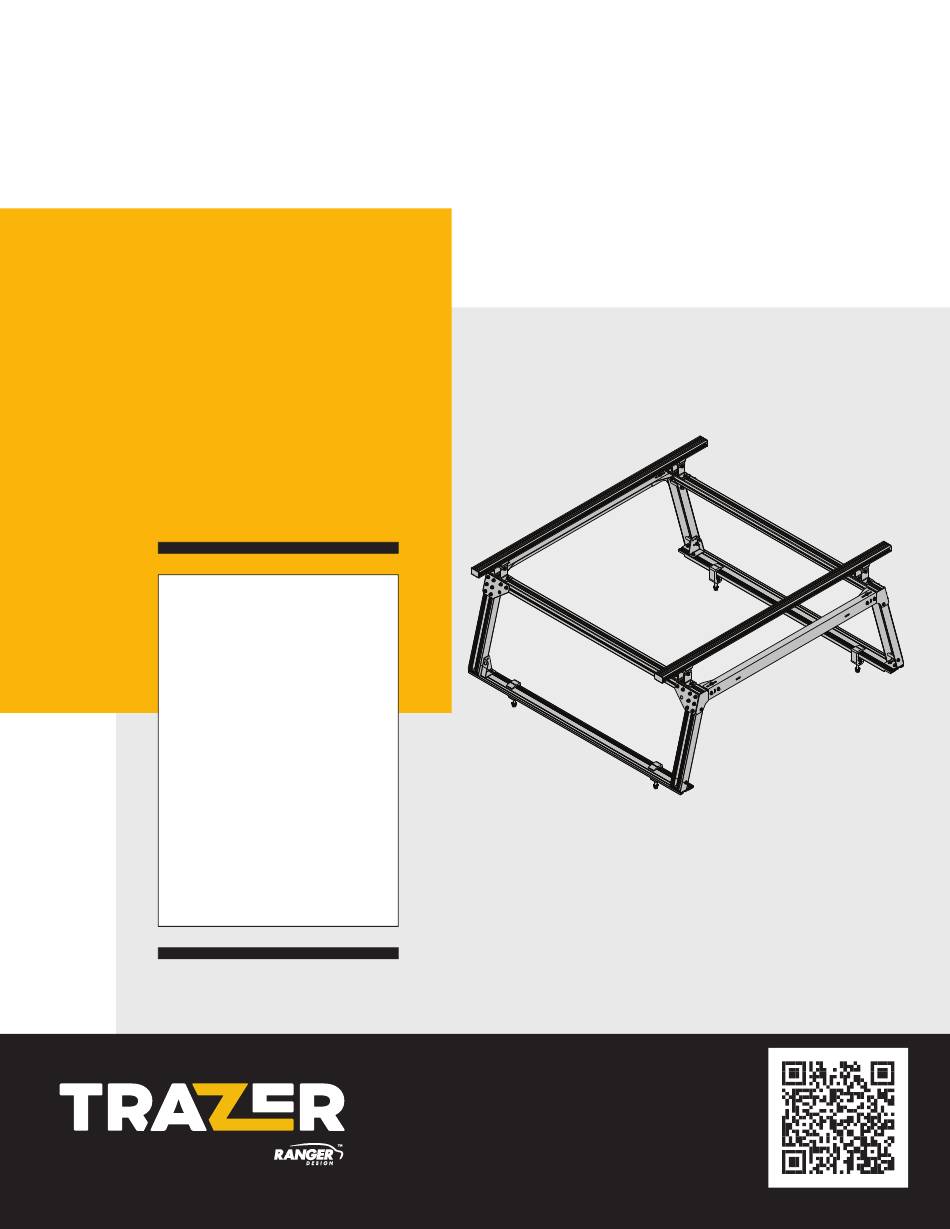

RRB-2055
shown
Advertisement
Related Manuals for Ranger design TRAZER RRB Series
Summary of Contents for Ranger design TRAZER RRB Series
-
Page 1: Table Of Contents
Owner’s Manual RRB-Series This Owner’s Manual provides assembly, install and user guidance. It applies to all RRB Truck Rack Series sold by Ranger Design. For a list of compatible models, visit our website at rangerdesign.com. Contents Warnings ....2 Parts Included ....3 Tools Required ...4... -
Page 2: Warnings
FR: Si vous avez besoin de ces instructions en français, s'il vous plait contacter notre service à la clientèle. +1-800-565-5321 ES: Si necesita estas instrucciones en español, comuníquese con el Servicio de atención al cliente de Ranger Design. +1-800-565-5321 Page 2 | RRB-Series Installation Guide | REV. E... -
Page 3: Parts Included
Parts Included Crossbeam Foot - Qty. 8 P/N 20-040 Extrusion Cross Bar - Qty. 2 P/N 18-041 Stud Plate - Qty. 4 P/N 20-018 End Cap - Qty. 4 P/N 18-198 Transverse Beam- Qty. 2 P/N 20- AAA 016 Short Upright - Qty. -
Page 4: Tools Required
Parts Included Installation Fastener Kit 96-2001 Content Assembly Fastener Kit 94-2001 Content P/N & P/N & Part Qty. Part Qty. Description Description P/N 90-209 P/N 90-205 Hex Bolt Bolt Carriage 5/16"-18 × 1'' 5/16"-18 × 3/4" SS 304 SS 304 P/N 90-237 P/N 90-261 Hex Bolt... -
Page 5: Assembly
Assembly STEP 1 Assemble uprights to base rail. Ensure uprights are ush to the ends and tighten in place. See Vehicle Chart below for positioning. HARDWARE Bolt Hex 5/16"-18x3/4" Qty: 8 Lorem ipsum Lock Spring Washer Qty: 8 Flat Washer Qty: 8 TOOLS ... - Page 6 Assembly If installing boxes, skip the install of the rear gusset and only hand tighten the bolts. NOTE: Use anti-seize provided when fastening bolts. STEP 2 Insert long hex bolts into the uprights with the head facing outwards and tighten. HARDWARE Hex Bolt 5/16"-18x4-1/4"...
- Page 7 Assembly NOTE: Use anti-seize provided when fastening bolts. STEP 3 Slide in the transverse beams until ush with the end & tighten down the nuts pre-installed in the uprights. TOOLS Ratchet 1/2" Socket Torque to 11 ft-lbs. For technical support, contact us at 1-800-565-5321 RRB - Series Installation Guide | REV.
- Page 8 Assembly If installing boxes, skip this step. NOTE: Use anti-seize provided when fastening bolts. STEP 4 Slide 8 carriage bolts into each transverse beam and 2 hex bolts into each channel on the uprights. Install the gussets in the top corners of each side frame, picking up the carriage and hex bolts.
- Page 9 Assembly STEP 5 Slide in plates with carriage bolts. HARDWARE Carriage Bolt 5/16"-18x1-1/2 Qty: 8 Carriage Bolt 5/16”-18 x 1-1/2” For technical support, contact us at 1-800-565-5321 RRB - Series Installation Guide | REV. E | Page 9...
- Page 10 Assembly NOTE: Use anti-seize provided when fastening bolts. STEP 6 Install brackets on front and rear of transverse beams. HARDWARE Hex Bolt 5/16"-18x4-1/4 Qty: 4 Carriage Bolt 5/16"-18x1" Qty: 8 Flat Washer Qty: 16 Nylock Nut 5/16 Qty: 12 TOOLS ...
- Page 11 Assembly NOTE: Use anti-seize provided when fastening bolts. STEP 7 Set rack aside, assemble feet to crossbar A distance from the end. HARDWARE Hex Bolt 5/16"-18x2-3/4 Qty: 4 Flat Washer Qty: 8 Nylock Nut 5/16 Qty: 4 TOOLS Model Distance ...
- Page 12 Assembly Skip this step if installing additional ladder racks or accessories to the crossbars. STEP 8 Add end caps to crossbars. TOOLS Rubber Mallet Page 12 | RRB-Series Installation Guide | REV. E For technical support, contact us at 1-800-565-5321...
-
Page 13: Installation
Installation NOTE: For RRB-2080, use 3 clamps per side and space the 3rd clamp centered on the base rail. STEP 9 Clamp each side to the truck bed ensuring an equal spacing, then tighten. Place the clamps on a smooth surface on the bed rail and bolt tip is ush and unobstructed under the bed rail. - Page 14 Installation NOTE: Use anti-seize provided when fastening bolts. STEP 10 Install front 20-0120 with logo and rear cross plates 20-012 no logo. HARDWARE Hex Bolt 5/16"-18x1" Qty: 12 Flat Washer 5/16" Qty: 24 Nylock Nut 5/16" Qty: 12 TOOLS Hex Bolt 5/16”-18x1”...
- Page 15 Installation If installing OTC, skip the install of the front crossbar. NOTE: Use anti-seize provided when fastening bolts. STEP 11 Bolt the crossbars to the bolts slid into the transverse beams. HARDWARE Nut 5/16"-18 Qty: 8 Lock Washer 5/16" Qty: 8 Flast Washer 5/16"...
- Page 16 Installation STEP 12 Select a warning label in the language best suited to your region and apply it to the rear upright. Use multiple stickers if required. Page 16 | RRB-Series Installation Guide | REV. E For technical support, contact us at 1-800-565-5321...
- Page 17 This page was intentionally left blank. For technical support, contact us at 1-800-565-5321 RRB - Series Installation Guide | REV. E | Page 17...
- Page 18 Page 18 | RRB-Series Installation Guide | REV. E For technical support, contact us at 1-800-565-5321...
- Page 19 For any feedback or suggestions you may have, please contact cs@rangerdesign.com. Copyright © 2024 All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever without the express written permission of Ranger Design, Inc.
