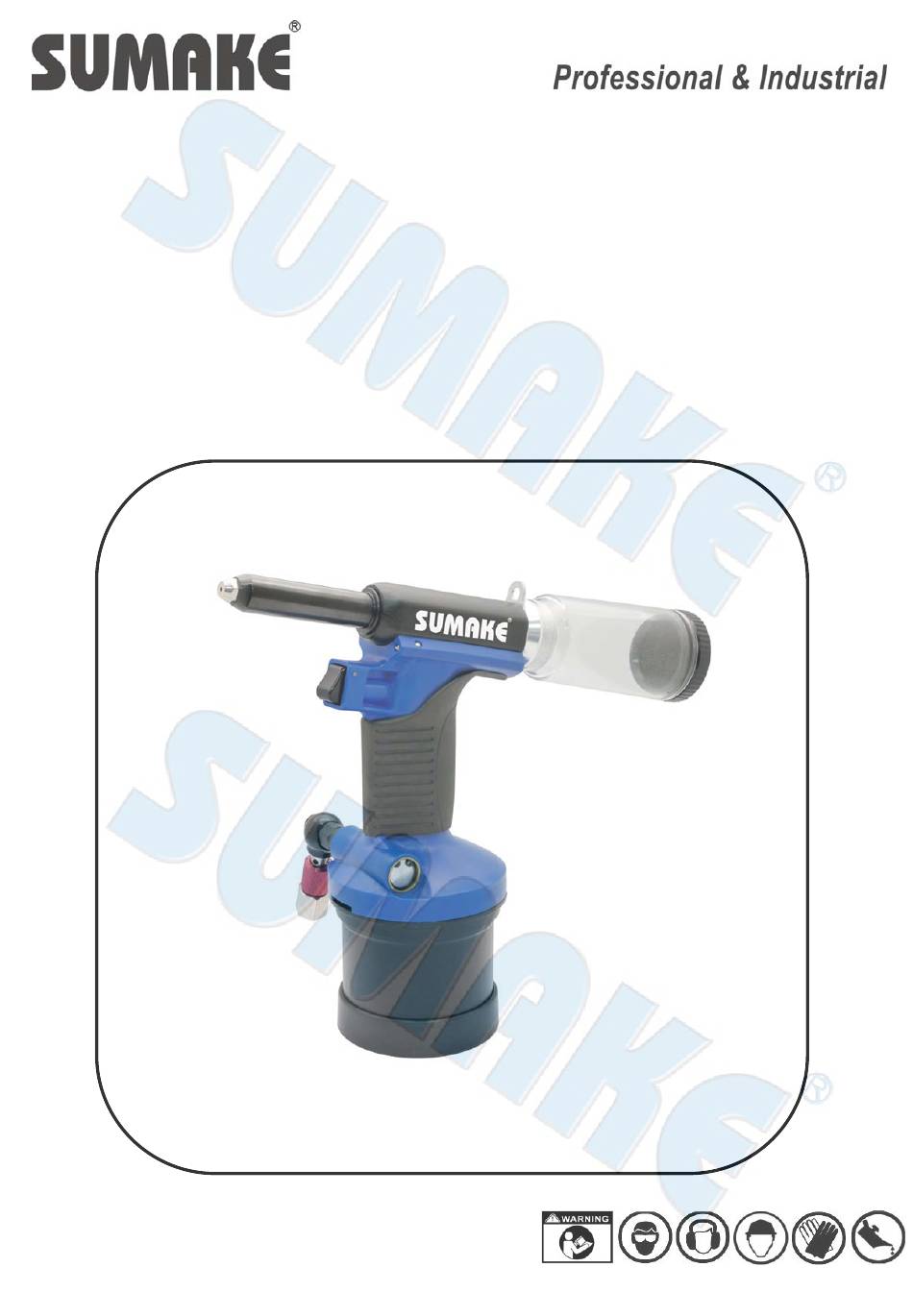

- Page 1 INSTRUCTION MANUAL ST-6220V ITEM NO.: 5/64"(2.0MM) AIR HYDRAULIC RIVETER (VACUUM TYPE) ST-6220V-I-1603B-C1...
-
Page 2: Table Of Contents
Contents TOOL SPECIFICATION..................2 GENERAL DESCRIPTION ................3 SAFETY INSTRUCTIONS ................4 OPERATION INSTRUCTIONS ................ 5 MAINTENANCE ....................7 TROUBLESHOOTING ..................8 PART LIST FOR TOOL ..............9 List of Figures FIG. 1 RIVET-PULL TOOL ............3 FIG. 2 DETAIL ILLUSTRATION OF CHANGE THE NOSEPIECE, ..4 FIG. -
Page 3: Technical Data
TOOL SPECIFICATIONS Technical Data Model Of Tool…………………………..……… Dimensions……………………………………... 11.06” X 9.68” X 3.79” (Length X Height X Width) (280mm X 245mm X 96.5mm) Weight…………………………..………..2.53 lbs [1.15 Kgs] Air Inlet………………………………………… 1/4” NPT Recommended Operating Pressure………...… 75 to100 psi [5.2 to7kg/cm2] Air Consumption………………...…. -
Page 4: General Description
It is designed to provide long life and trouble free services. HOOK TOOL BODY SHUTOFF VALVE Fig. 1 ST-6220V Riveter FEATURES Heavy-duty use. Lightweight rivet-pull tool. High efficient, powerful and quiet installation tool. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS DANGER Read this manual and understand all safety instructions before operating the tool. If you have any questions, please contact authorized representatives. Never allow the use of flammable gases (oxygen) as a power source for the tool. Use filtered, lubricated, and regulated compressed air only. -
Page 6: Operation Instructions
OPERATION INSTRUCTIONS A. To prepare ST-6220V 1. Following the steps below to install the desired nosepiece: a. Loosen and remove the nosepiece (Index 37 in Figs. 2 & 5), then set up the desired nosepiece (Index 37~37-3 in Figs. 2 & 5) on frame head as shown in Fig. - Page 7 B. To operate ST-6220V a. Open the shut-off valve, let the air enter the ST-6220V rivet-pull tool. When use the ST-6220V rivet-pull tool, the shut-off valve must be in the open ✂ state, otherwise there no suction to the rivet.
-
Page 8: Maintenance
Maintenance The maintenance required when the tool of: ST-6220V pulling strength diminish , it is only Necessary to add ISO VG46 oil or DEXRON III, the operation steps as below: Unscrew and remove the front head(Index 38)turn the tool upside down and well fixed ,then 5 .1 rod remove No.1 parts... -
Page 9: Troubleshooting
TROUBLESHOOTING Stop using the tool immediately if any of the following problems occur. Any repairs or replacements must be done by a qualified person or an authorized service center only. PROBLEM CAUSE REMEDY The differen t rivets need to change the compared nosepiece, jaw and jaw pusher. -
Page 10: Specification
3/8” (10 mm) Air Hose (I.D.) to risk of Air Pressure 90 psi (6.3 bar) impaired Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 2.9 lbs (1.15 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6220V-S-2411D-C1F... - Page 11 ST-6220V 5/64"(2.0MM) AIR HYDRAULIC RIVETER (VACUUM TYPE) ST-6220V-P-2401C-C1...
- Page 12 ST-6220V 5/64"(2.0MM) AIR HYDRAULIC RIVETER (VACUUM TYPE) PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 6220V-01 Cylinder Cap 6220V-37 Nosepiece 5/32" (Φ4.0mm) 6220V-02 Rubber Bottom 6220V-37-1 Nosepiece 1/8" (Φ3.2mm) 6220V-03 Air Cylinder Body 6220V-37-2 Nosepiece 3/32" (Φ2.4mm)
- Page 13 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 5/64"(2.0MM) AIR HYDRAULIC RIVETER (VACUUM TYPE) Model/ Serial No.： ST-6220V to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 14 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
- Page 15 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 16 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 17 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
