1/4"(6.4mm) Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
(Non-Vacuum Type)
3/32", 1/8", 5/32", 3/16", 1/4"
(2.4mm, 3.2mm, 4.0mm, 4.8mm, 6.4mm)
5/8" (16mm)
2500 lbs (1140 kg)
9 CFM (255 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.0 lbs (1.8 kg)
PNEUMATIC TOOLS
ST-6674
Noise and Vibration:
Vibration
EN ISO 20643
Load:
< 2.5 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
No load: 71.1 dB(A)
Sound power level
No load: 82.1 dB(A)
Uncertainty
K= 3dB
²
ST-6674-S-2208D-FPF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-6674
Summary of Contents for Sumake ST-6674

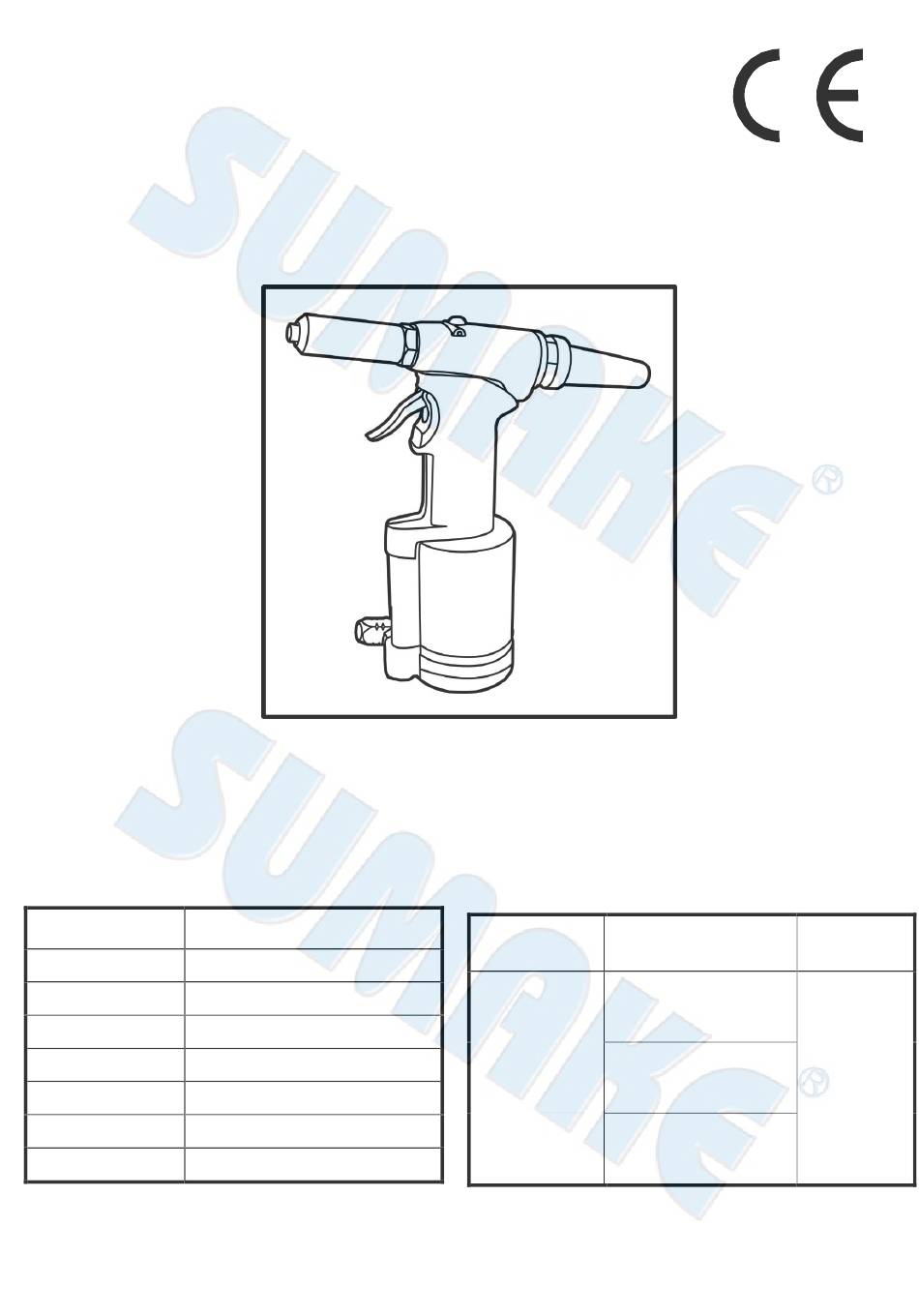

- Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of Air Pressure 90 psi (6.3 bar) impaired Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 4.0 lbs (1.8 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6674-S-2208D-FPF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1/4"(6.4MM) AIR HYDRAULIC RIVETER (NON-VACUUM TYPE) Model/ Serial No.：ST-6674 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 Return Spring. Before adding hydraulic fluid, also check to see if any leaks appear in the Air Cylinder Body, Head or Rear Gland, If fluid is found in any of these areas , replace the ST-6674-I-1601B-FP...
- Page 4 ST-6674 1/4" AIR HYDRAULIC RIVETER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6674-01 1/4" Nosepiece 6674-32 Damping Ring 6674-01A 1/8" Nosepiece 6674-33 O-Ring Seal 6674-01B 5/32" Nosepiece 6674-34 Cylinder Cap 6674-01C 3/16" Nosepiece 6674-35 Retain Ring 6674-02...
- Page 5 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 8 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
