ST-66151
PARTS LIST
No.
Parts No.
1A
66151-1A
1B
66151-1B
1C
66151-1C
1D
66151-1D
2
66151-02
3
66151-03
4
66151-04
5
66151-05
6
66151-06
7
66151-07
9
66151-09
10
66151-10
11
66151-11
12
66151-12
13
66151-13
14
66151-14
15
66151-15
16
66151-16
17
66151-17
18
66151-18
20
66151-20
21
66151-21
22
66151-22
23
66151-23
26
66151-26
27
66151-27
28
66151-28
29
66151-29
30
66151-30

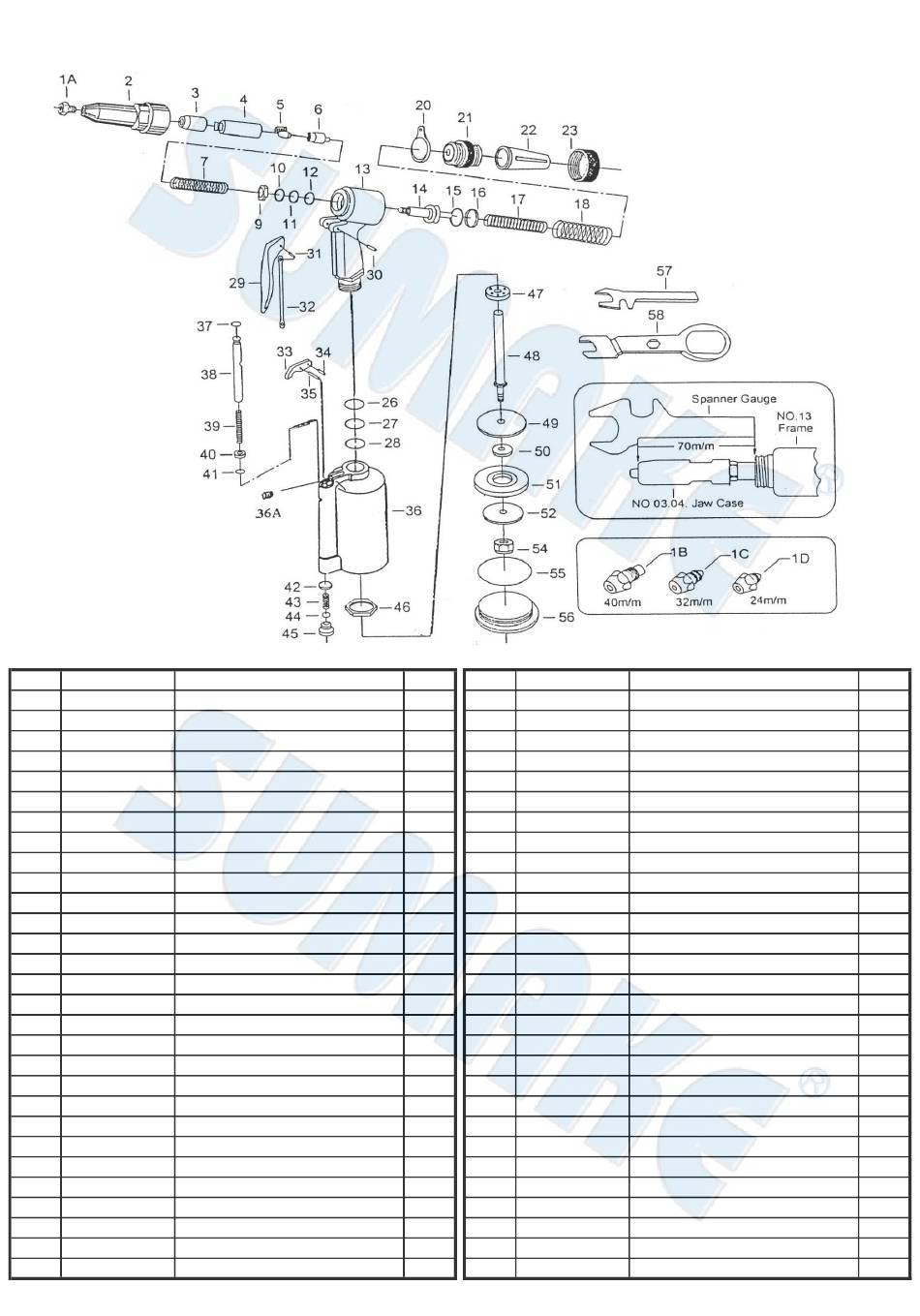

3/16"(4.8MM) AIR HYDRAULIC RIVETER
Description
Nosepiece 4.8mm
Nosepiece 4.0m
Nosepiece 3.2m/m
Nosepiece 2.4m/m
Frame Head
Jaw Case
Jaw Case Joint
Jaw (5x10)
Jaw Pusher
Jaw Pusher Spring
Jaw Case Lock Nut
Frame O Ring
Frame O Ring
Frame Back Up Ring
Frame
Oil Piston
Oil Piston O Ring
Oil Piston Back Up Ring
Return Spring A
Return Spring B
Hanging Clip
Frame Cap
Saftey Cap
Frame Cap Nut
Frame Joint Back Up Ring
Frame Joint O Ring
Frame Joint O Ring
Trigger
Trigger Pin
Q'ty
No.
Parts No.
1
31
66151-31
1
32
66151-32
1
33
66151-33
1
34
66151-34
1
35
66151-35
1
36
66151-36
1
36A
66151-36A
2
37
66151-37
1
38
66151-38
1
39
66151-39
1
40
66151-40
1
41
66151-41
1
42
66151-42
1
43
66151-43
1
44
66151-44
1
45
66151-45
1
46
66151-46
1
47
66151-47
1
48
66151-48
1
49
66151-49
1
50
66151-50
1
51
66151-51
1
52
66151-52
1
54
66151-54
1
55
66151-55
1
56
66151-56
1
57
66151-57
1
58
66151-58
1
Description
Rod Pin
Trigger Rod
Trigger Lever
Rod Pin
Lever Pin
Air Cylinder
Set Screw
Valve Pusher O Ring
Brass Valve Pusher
Valve Pusher Spring
Valve Pusher Brass Collar
Valve Pusher O Ring
Valve
Valve Spring
Valve Cap O ring
Valve Cap
Frame Lock Nut
Rubber Cushion
Air Piston Stem
Air Piston Ring
Air Piston Plate
Air Piston
Iron Plate Washer
Air Piston Lock Nut
Air Cylinder O Ring
Air Cylinder Cap
Spanner Gauge
Spanner
ST-66151-P-2203C-SC
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
