SUMAKE
Specification:
Rivet Capacity
Tractin Power
Stroke Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

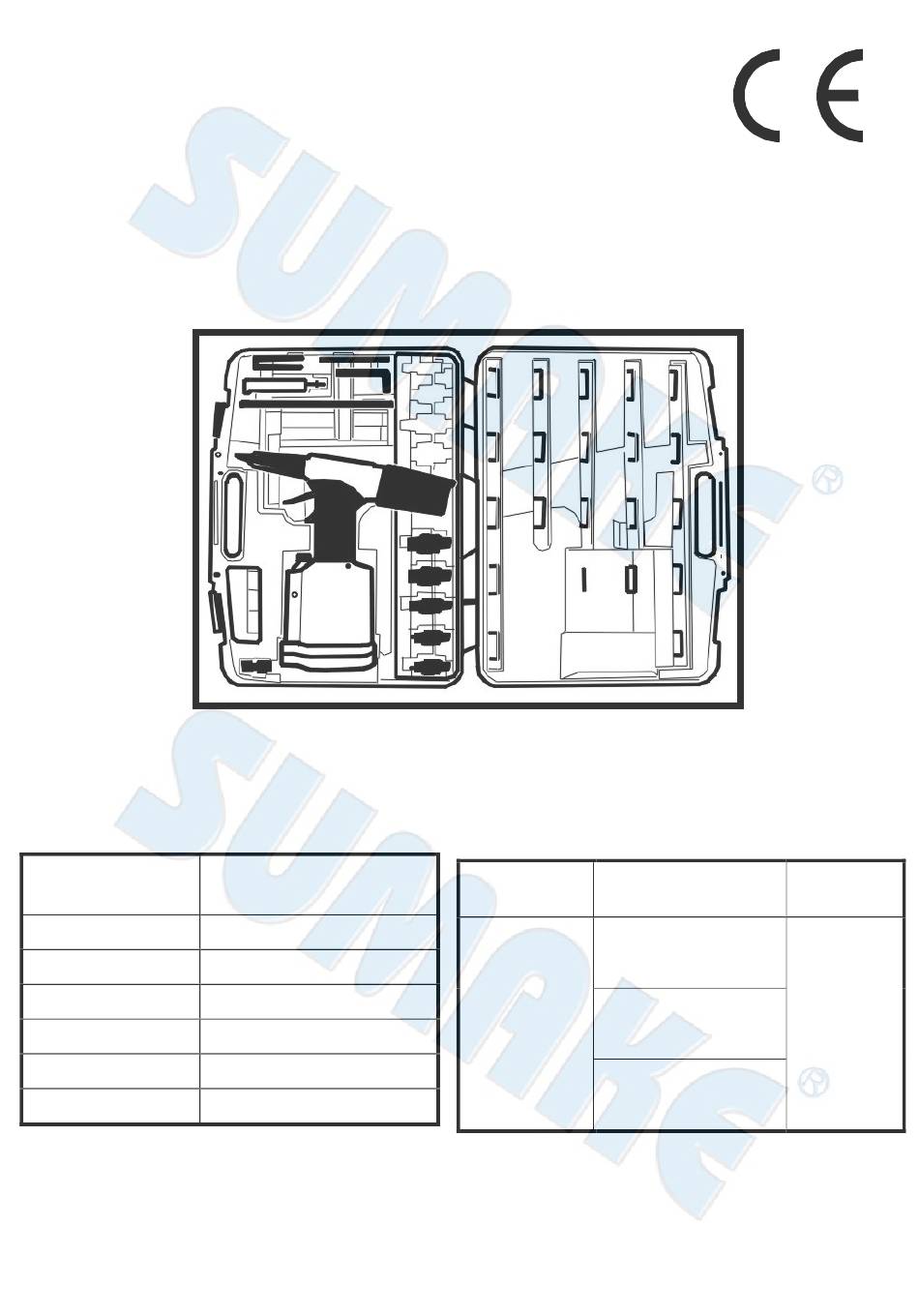

Air Spin-Pull Rivet Nut Tool
ST-6920(A)
1/4"-20, 5/16"-18, 1/2"-13, #8-32,
#10-24, #10-32, #3/8-16
(M4, M5, M6, M8, M10, M12)
6800 lbs (3100 kg)
0.276" (7 mm)
1/4" (6.35 mm)
3/8" (10 mm)
85~95 psi (6~6.7 bar)
11.66 lbs (5.3 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No load: 84 dB(A)
Load:
< 2.5 m/s²
Sound power level
No load: 95 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
Uncertainty
K= 3dB
ST-6920(A)-S-2212D-CPF
wear ear
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-6920
Summary of Contents for Sumake ST-6920
- Page 1 3/8” (10 mm) 80 dB(A) due to risk of Air Pressure 85~95 psi (6~6.7 bar) impaired Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 11.66 lbs (5.3 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6920(A)-S-2212D-CPF...
-
Page 2: Working Instructions
ST-6920 Air Hydraulic Rivet-Nut Tool Working Instructions ★ ★ ※ Operating Instructions : (A)-1 Slightly push the Trigger #110 with the middle finger to spin threaded insert onto the Bolt Spindle ( #1) (A)-2 Push Trigger (#110) fully with the middle finger to pull & squeeze the threaded insert. - Page 3 Clean the hose with a blast of compressed air Sumake is a manufacturer and exporter of air 5. Unexpected direction of rotating could cause a before connecting the hose to air tool. This will 3.3 Rotating Direction...
-
Page 4: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR SPIN-PULL RIVET NUT TOOL Model/ Serial No.：ST-6920(A) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 5 ST-6920(A) AIR SPIN-PULL RIVET NUT TOOL ST-6920(A)-P-2212G-CP...
-
Page 6: Parts List
ST-6920(A) AIR SPIN-PULL RIVET NUT TOOL PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6920-01B Bolt M10 6920-76 Low Valve Rod 6920-02B Nut Anvil M10 6920-77 O-Ring Seal 6920-03 6920-78 Valve Plate 6920-04 Head 6920-79 Valve Pressure Spring... - Page 7 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
-
Page 8: General Safety Rules
The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use. - Page 9 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
-
Page 10: Maintenance Instruction
General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
