SUMAKE

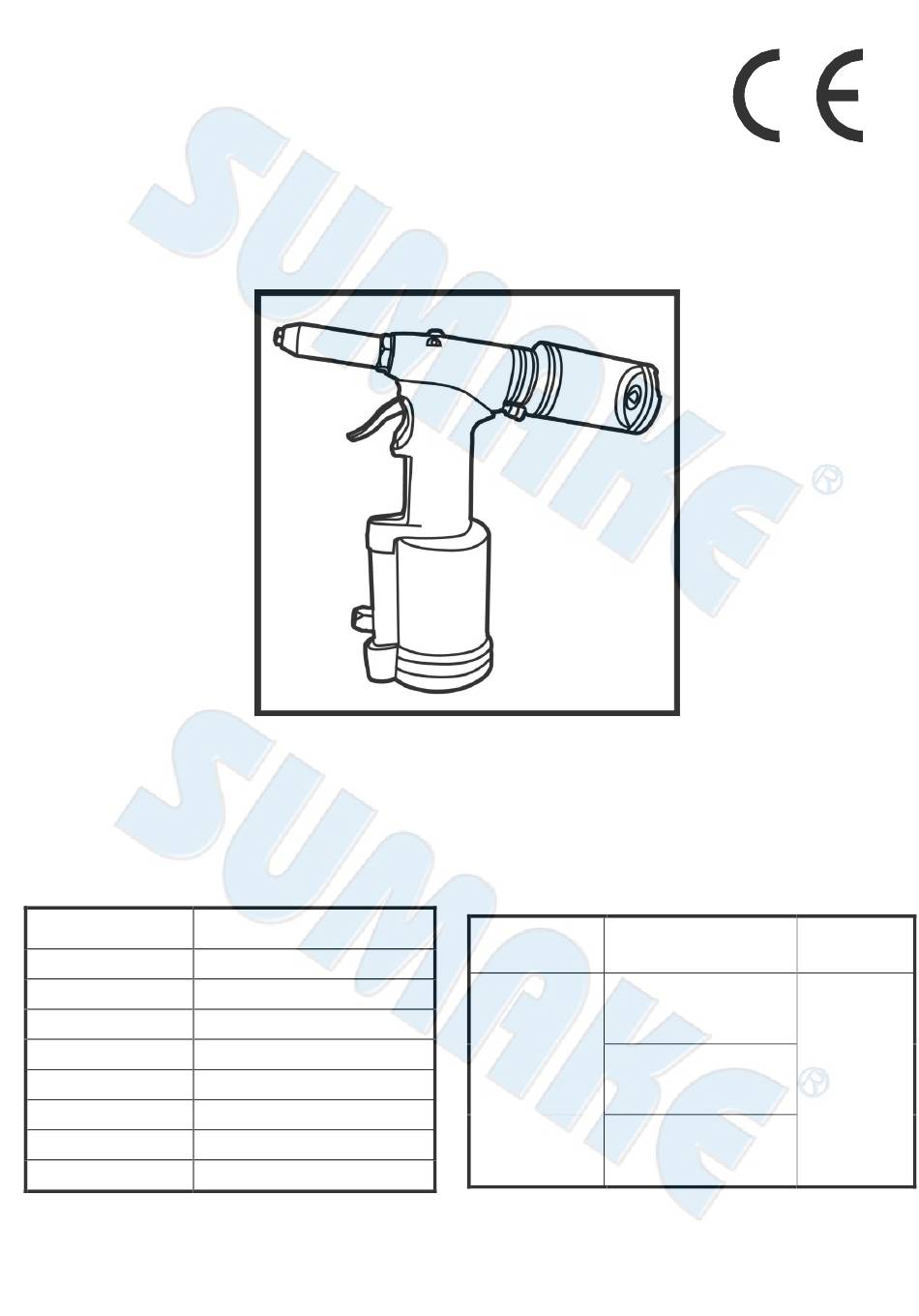

3/16"(4.8mm) Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Overall Height
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Vacuum Type)
ST-6675
3/32", 1/8", 5/32", 3/16
(2.4mm, 3.2mm, 4.0mm, 4.8mm)
0.625" (16mm)
2300 lbs (1000 kg)
11-5/16" (287 mm)
9 CFM (255 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.0 lbs (1.8 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
Load:
< 2.5 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
No load: 79 dB(A)
Sound power level
No load: 90 dB(A)
80 dB(A) due
Uncertainty
K= 3dB
ST-6675-S-2208F-FPF
Remark
wear ear
protector at
environment
noise level >
to risk of
impaired
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-6675
Summary of Contents for Sumake ST-6675
- Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 4.0 lbs (1.8 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6675-S-2208F-FPF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3/16”(4.8MM) AIR HYDRAULIC RIVETER (VACUUM TYPE) Model/ Serial No.：ST-6675 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 Air Return head design minimizes repairs Easy access to spent mandrels The ST-6675 comes with 3/32”,1/8”, 5/32” and 3/16” nosepieces for open-end rivets. The 3/16” nosepiece is factory-installed on the tool; one each of the 3/32”,1/8” and 5/32” nosepieces are included in accessory bag.
- Page 4 Add Oil PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE ST-6675 Tool Preparation before Operation Prior to each operation of the Riveter, you must choose the size rivet you’ll be using. If setting 3/16” rivets, no changes to the tool are necessary (3/16”...
- Page 5 Wipe excess oil off of tool as you continue to depress and release the trigger as needed, until rivet head touches the Nosepiece. Once tool is properly adjusted, tighten Oil Plug (#13) completely with Allen wrench. Tighten Oil Plug Save plunger for future use. ST-6675-I-1105C-FP...
-
Page 6: Parts List
ST-6675 3/16" (4.8MM) AIR HYDRAULIC RIVETER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6675A-01A 1/8" Nosepiece #4 6675A-45 Mandrel Bottle Ass'y (Short) 6675A-01B 5/32" Nosepiece #5 6675A-46 O-Ring Seal 6675A-01C 3/16" Nosepiece #6 6675A-49 Lock Nut 6675A-01D 3/32"... - Page 7 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
- Page 8 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 9 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 10 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
