SUMAKE

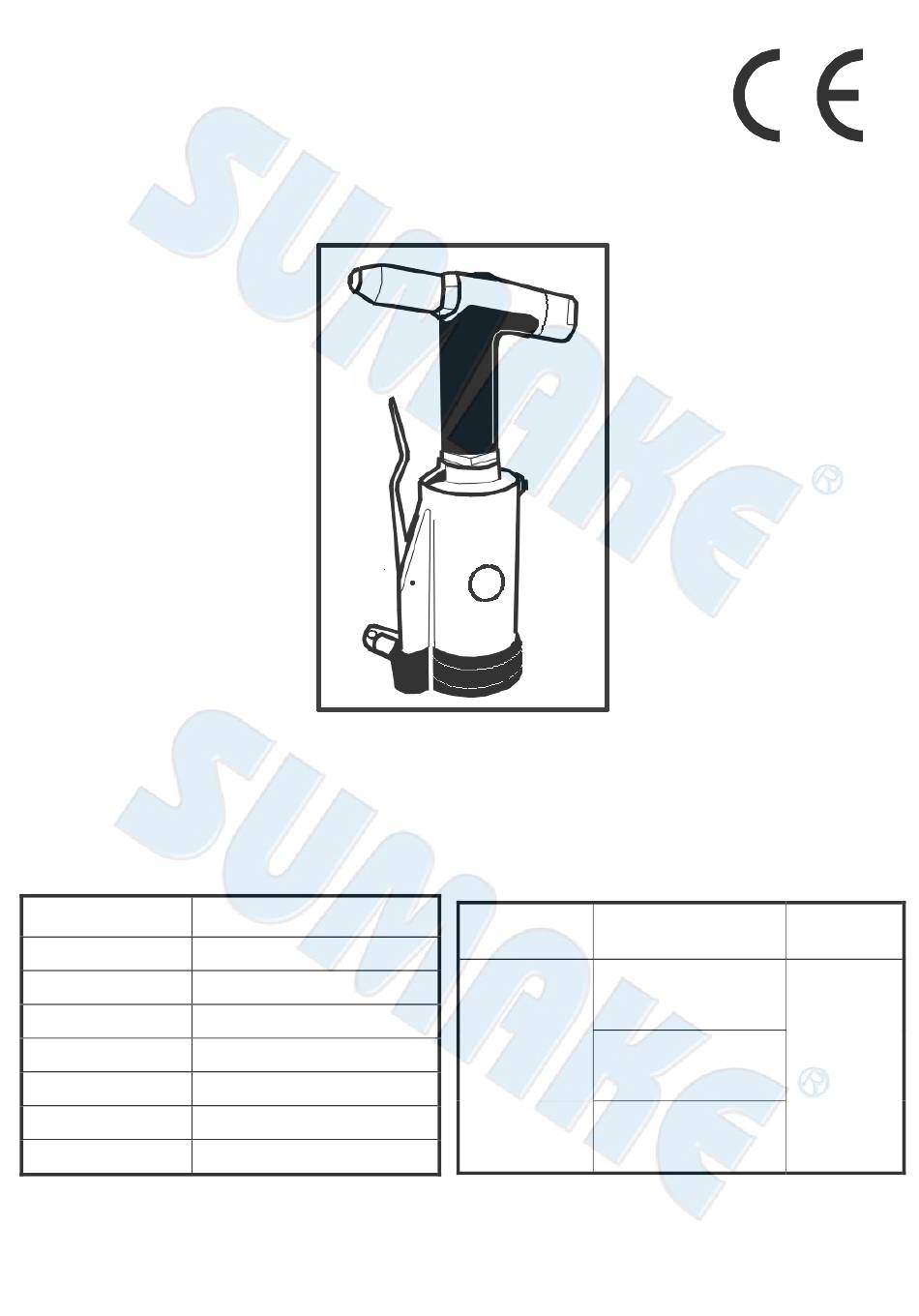

3/16"(4.8mm) Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Non-Vacuum)
3/32", 1/8", 5/32" 3/16"
(2.4mm, 3.2mm, 4.0mm, 4.8mm)
11/16" (17 mm)
1985 lbs (900 kg)
11-3/4" (300 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.3 lbs (1.5 kg)
ST-6616
Noise and Vibration:
Vibration
EN ISO 20643
Load:
< 2.5 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
No load: 71 dB(A)
Sound power level
No load: 82 dB(A)
Uncertainty
²
K= 3dB
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
ST-6616-S-1304E-FPF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-6616
Summary of Contents for Sumake ST-6616
- Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 3.3 lbs (1.5 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6616-S-1304E-FPF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3/16"(4.8MM) AIR HYDRAULIC RIVETER Model/ Serial No.：ST-6616 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Operation
Loosening the Lock Nut slightly and turn the tool upside down. Disassemble Air Cylinder Body from the Hydraulic Section and remove the Head. Next, make sure that the Hydraulic Plunger is at the bottom of its stroke. If it must ST-6616-I-1011B-FP... -
Page 4: Parts List
ST-6616 3/16" AIR HYDRAULIC RIVETER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 6616-01 Jaw Housing 6616-28 Air Cylinder Body 6616-02 Jaws 6616-29 Damping Ring 6616-03 Jaws Pusher 6616-30 "O" Ring Seal 6616-04 Jaw Housing Coupler... - Page 5 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 8 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
